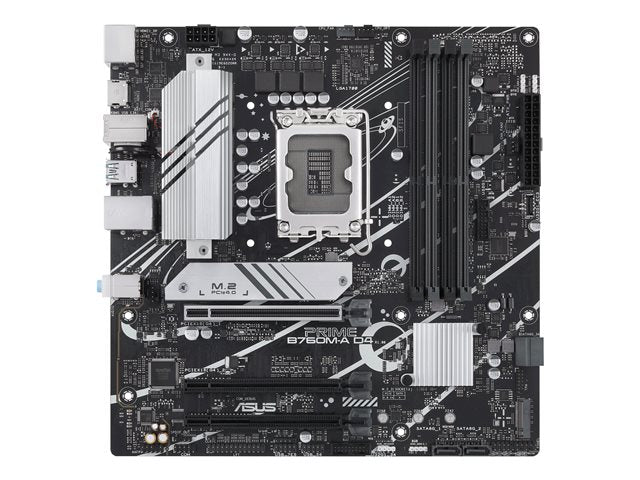

Motherboard ASUS - PRIME B760M-A D4, LGA1700

ASUS PRIME B760M-A D4 is a motherboard with the B760 chipset and LGA1700 processor socket.

Technical details

• Socket: LGA1700;
• Chipset: Intel B760;
• Supported processors: Intel Celeron, Intel Pentium Gold, Intel Core 12th generation, Intel Core 13th generation;
• Supported memory: DDR4;
• Memory frequency: 3200 MHz;
• Number of memory slots: 4;
• Maximum supported memory capacity: Up to 128 GB;
• Sound card: 7.1 CH HD Audio;
• LAN: 10/100/1000/2500 Mbps;
• Interfaces: 1 x S/PDIF out header, 1 x LPT Header, 1 x Front panel audio header, 1 x 8-pin 12V Power connector, 1 x COM Port Header, 1 x Clear CMOS header, 4 x SATA 6.0 Gb/s, 2 x USB 3.2 Gen 1 Header, 1 x SPI TPM header, 1 x PCI Express 4.0 x16, 1 x PCI Express 4.0 x16 (x4 mode), 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 20-3 pin System Panel header with Chassis intrude function, 3 x Addressable Gen 2 header, 1 x AURA RGB headers, 2 x M.2 slot (NVMe PCIe 4.0), 1 x USB 3.2 Gen 1 connector, 3 x USB 2.0 Headers, 1 x 4-pin CPU Fan header, 1 x PCI Express 4.0 x16 (x1 mode);
• Ports: 1 x DisplayPort, 2 x HDMI, 1 x PS/2 keyboard/mouse combo port, 1 x RJ-45, 4 x USB 2.0, 3 x Audio Jacks, 2 x USB 3.2 Gen 2 Type-A
• Form factor: Micro ATX;
• Dimensions: 24.4 x 24.4 cm;
• Equipment: 2 x SATA cables, With packaging.
