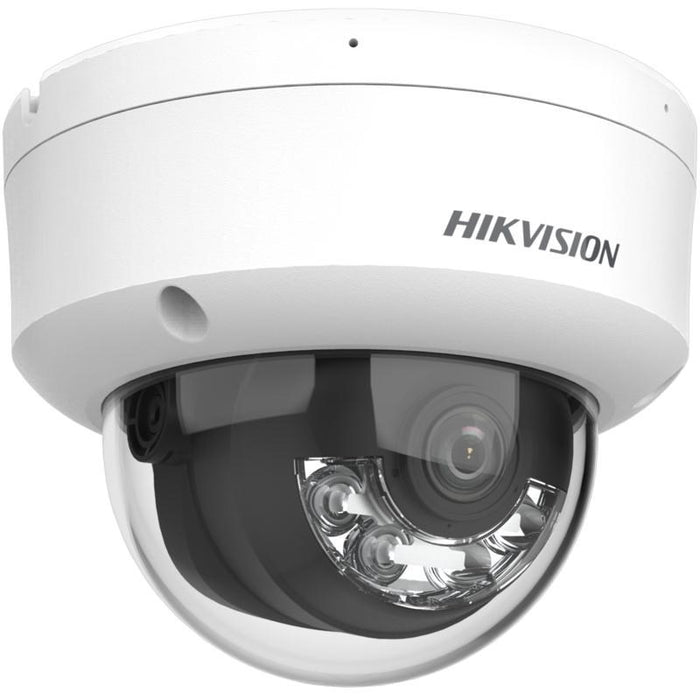

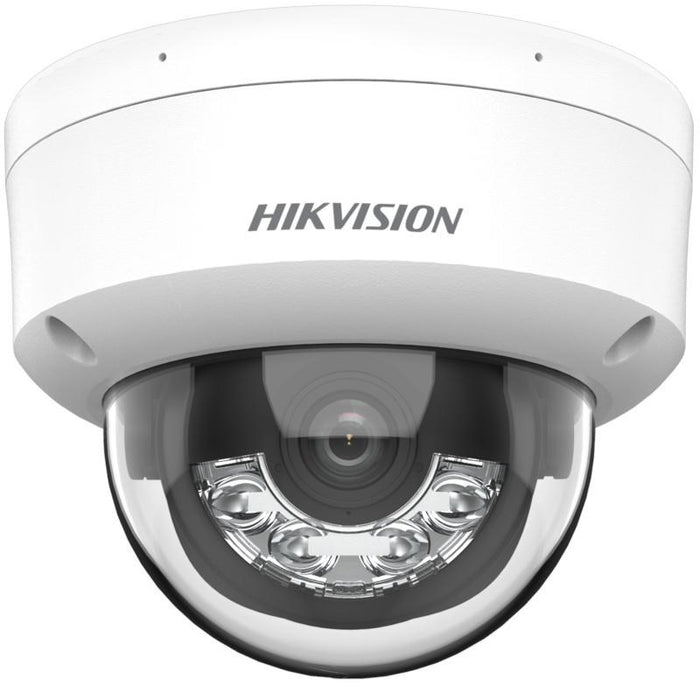

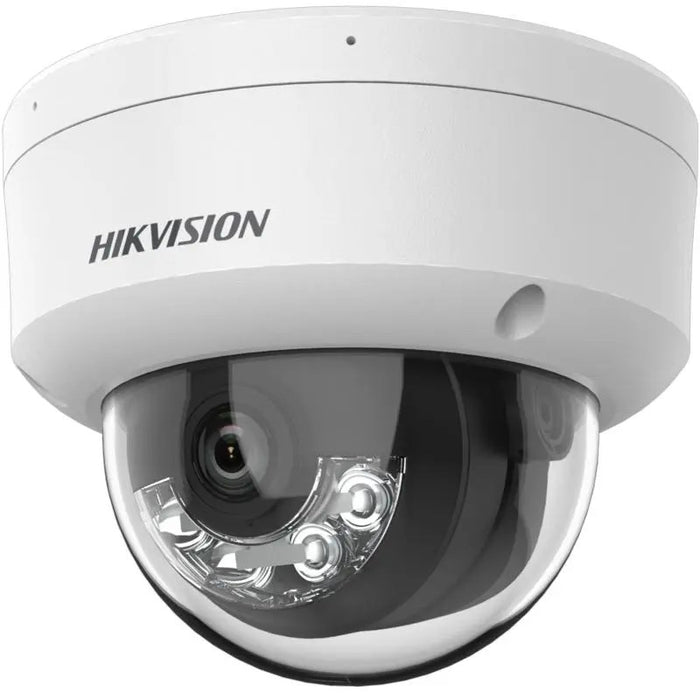

HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm

HIKVISION IP CAMERA DS-2CD1183G2-LIUF 2.8mm

HIKVISION
€170,26 - €170,26
€170,26
€170,26 - €170,26
€170,26
SKU DGT0212117
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Lens mount M12
Iris Yes

Design

Product colour White
Form factor Dome
International Protection code (IP) IP67
IK code IK08
Housing material Metal, Plastic
Mounting type Ceiling
Weather resistant Yes

Power

Power consumption (max.) 6 W
Power supply type DC, PoE
Output DC current 0.5 A
Output DC voltage 12
Power consumption (Power over Ethernet (PoE)) 7.5 W

Security

Password reset by email Yes
Digital watermark Yes
Password protection Yes
Video motion detection Yes
Heartbeat Yes
Mirror Yes
Active sabotage alarm Yes

Operating conditions

Operating temperature (T-T) -30 - 60 °C
Storage humidity (H-H) 0 - 95%
Storage temperature (T-T) -30 - 60 °C
Operating relative humidity (H-H) 0 - 95%

Control functions

Web-based interface control Yes

Weight and dimensions

Weight 550 g
Height 97.6 mm
Diameter 12.2 cm

Network

Bluetooth No
Quality of Service (QoS) support Yes
User access level Administrator, Operator, User
Client compatibility iVMS-4200, Hik-Connect
Supported network protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Wi-Fi No
Ethernet LAN Yes
Number of simultaneous live view channels 6 channels
Number of users 32 user(s)
Real-time (Live view) Yes

Performance

Type IP surveillance camera
Connection technology Wired
Wide dynamic range (WDR) Yes
Number of languages 2
Supported mounting Indoor and outdoor
Dynamic range 120 dB
Infrared (IR) cut filter Yes
Day/night mode Yes

Packaging data

Packaging weight 800 g
Packaging width 150 mm
Packaging height 141 mm
Packaging depth 150 mm

Package contents

Number of cameras 1

Audio

Built-in microphone Yes
Signal-to-noise ratio (SNR) 52 dB
Supported audio formats G.722.1, G.711 A-law, AAC-LC, PCM, G.726, MP2L2
Sampling frequencies 8 - 16 kHz
Bitrate range 16 - 160 Kbit/s

Storage

Compatible memory cards MicroSDXC, MicroSD (TransFlash), MicroSDHC
Built-in card reader Yes
Built-in hard disk No
Maximum memory card size 512 GB

Ports and interfaces

Ethernet LAN ports (RJ-45) 1

Camera

Tilt angle range 0 - 75°
Pan range 0 - 355°
Lens viewing angle, vertical 62°
Lens field of view, horizontal 113°
Rotation angle 355°
Minimum illumination 0 lx
Camera shutter speed 1/3 - 1/100000 s
Lens diagonal viewing angle 134°

Image sensor

Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Number of sensors 1
Sensor type CMOS

Video

Supported graphic resolutions 640 x 360, 1920 x 1080 (HD 1080), 3860 x 2160, 1280 x 720 (HD 720), 2688 x 1512, 3200 x 1800, 640 x 480 (VGA)
Maximum resolution 3840 x 2160 pixels
Frame rate 15 fps
High light compensation (HLC) Yes
Back light compensation (BLC) Yes
Noise reduction Yes
Bitrate 32 Kbps - 16 Mbps
Total megapixels 8 MP
Video compression formats H.264+, H.265, H.265+, M-JPEG, H.264
Noise reduction technology 3D noise reduction
Image quality adjustment White balance, Sharpness, Saturation, Contrast, Brightness
Bitrate control Constant bitrate (CBR)/Variable bitrate (VBR)
Privacy masking Yes
Video recording Yes
Region of interest (ROI) encoding Yes

Night vision

LED type IR
Night vision distance 30 m
Night vision Yes
Infrared wavelength 850 nm

Strip system

Identification distance 7 m
Maximum aperture number 2
Fixed focal length 2.8 mm
Number of lenses 1
Detection distance 79 m
Recognition distance 15 m
Keep distance 31 m

Resistance

Compliance certificates WEEE, Federal Communications Commission (FCC), CB, Low Voltage Directive (LVD), RoHS, REACH, KC
