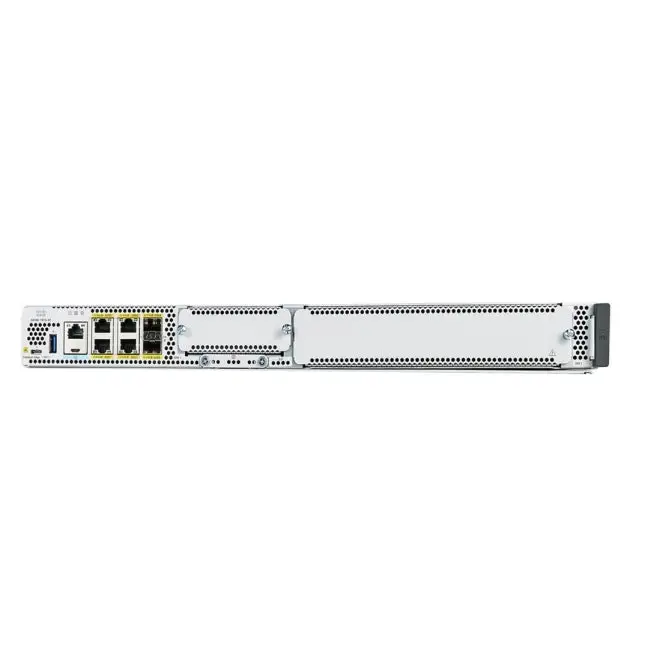

CISCO Catalyst C8300-1N1S-6T Router

CISCO
SKU DGT0041036

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

  • IPSec VPN tunnels: 4000 - number of IPsec SVTI tunnels
  • SFP-based ports: 2x SFP/SFP+
  • USB ports: 0
  • Number of EHWIC slots: 1x NIM
  • Warranty: 12 months
  • Voice: Supports various voice modules
  • Additional information: All Catalyst 8300 models ship with a standard 16G M.2 USB for SD-WAN logging and additional platform storage. It can be upgraded to a 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe).
  • Other: Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic. All Catalyst 8300 platforms ship with dual power supplies for redundancy.
  • Integrated WAN ports: 6x 1Gbps built-in Layer 3 Ethernet ports (2x Ethernet ports supporting Small Form-Factor Pluggable (SFP or SFP+) + 4x RJ-45 connections, enabling optical or copper connectivity)
  • Integrated service module: 1x PIM
  • Modular LAN ports: Supported modules: NIM-ES2-4/8 - Cisco 4/8-port Gigabit Ethernet switch NIM; NIM-ES2-8-P - Cisco 8-port Gigabit Ethernet switch NIM with PoE support; C-SM-16P4M2X/40P8M2X - Cisco 22/50-port Catalyst L2 switch module with UADP ASIC
  • Network module slot NM/SM: 1x SM
  • Built-in DRAM memory / max: 8G standard DRAM, upgradable to 16G and 32G for greater scale and performance
  • Built-in Flash memory / max: 8G flash memory built into the board, which cannot be upgraded. M.2 storage provides upgrade options with additional space
  • Dimensions (W, D, H), mm: 444.5 x 412.75 x 43.9 mm
  • Series: Catalyst C8300
  • Security: End-to-end segmentation (VPN), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL filtering, Advanced Protection (AMP), ThreatGrid (TG), ALG for ZBFW
