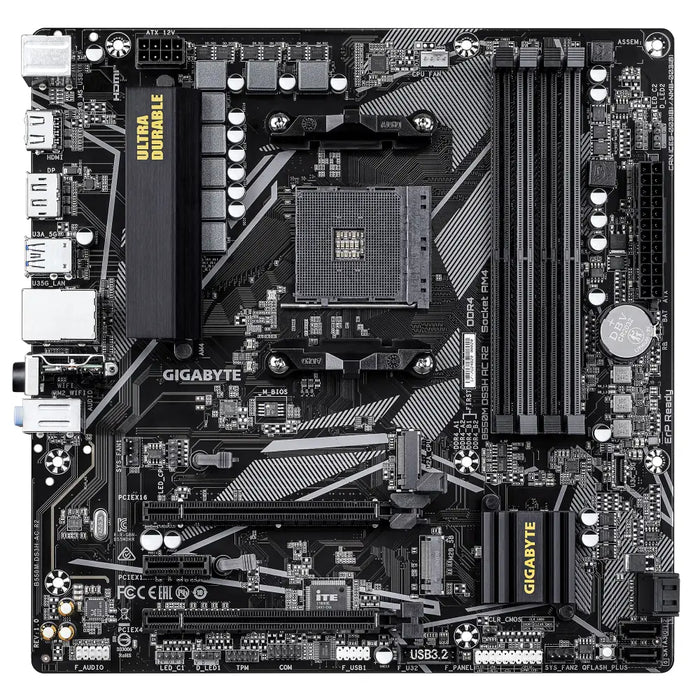

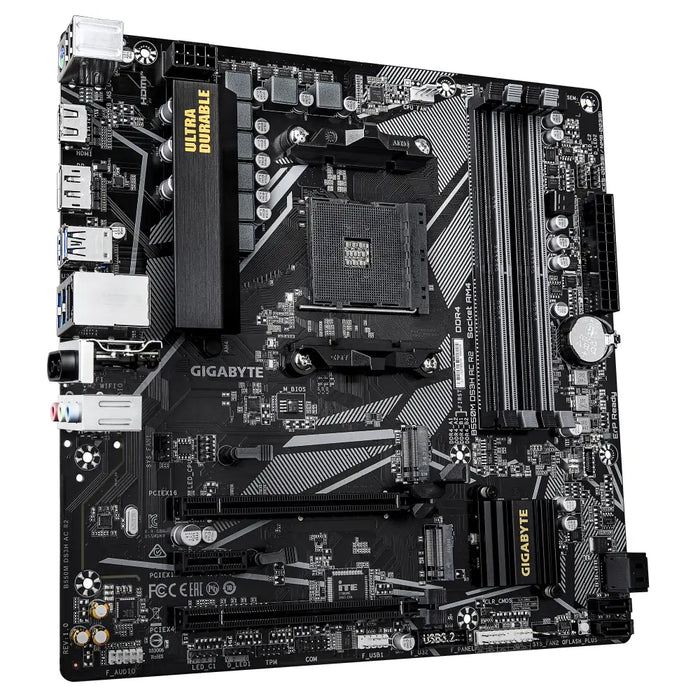

Motherboard GIGABYTE B550M DS3H AC R2 Socket AM4

Main features

• Socket : AM4 – compatible with AMD Ryzen 3000, 4000 and 5000 series processors.
• Chipset : AMD B550 – offers PCIe 4.0 support and good performance.
• Form factor : Micro-ATX – compact, suitable for smaller boxes.

Memory and extensions

• RAM : 4 slots DDR4, up to 128 GB, dual channel configuration.
• SSD slots : 2 x M.2 (one PCIe 4.0, one PCIe 3.0) + 4 x SATA 6Gb/s.
• PCIe slots : 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4), 1 x PCIe 3.0 x1.

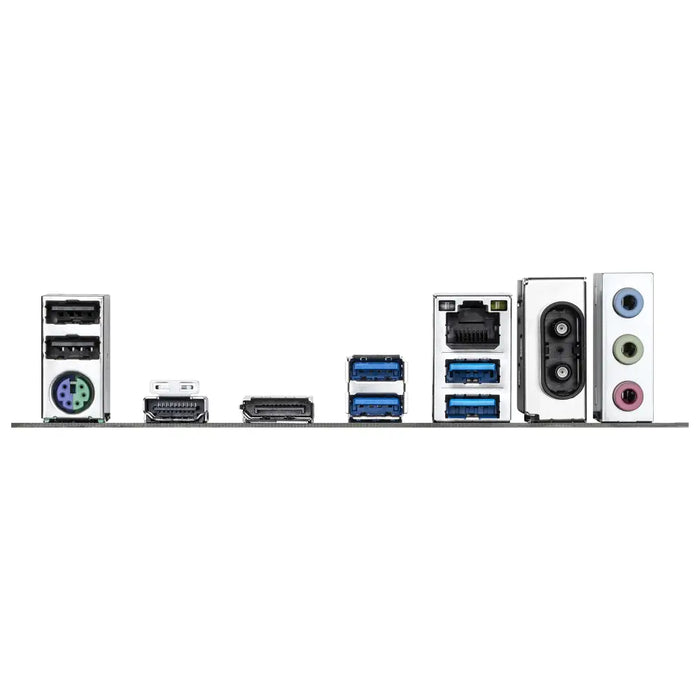

Connectivity

• Wi-Fi 5 + antenna (EZ-Plug design for easy installation).
• LAN : Gigabit Ethernet.
• Video outputs : HDMI and DisplayPort.

Cooling and stability

• 5+3 phases VRM – stable power supply for powerful processors.
• Smart Fan 6 – 3 fan headers with curve control.

Additional extras

• RGB Fusion – 3 RGB and 2 ARGB lighting headers.
• EZ-Latch - easy release of PCIe cards.
