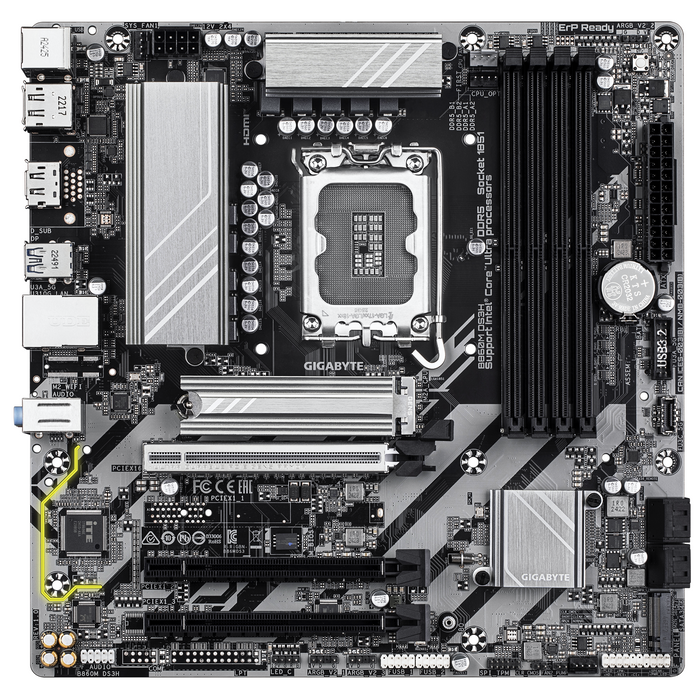

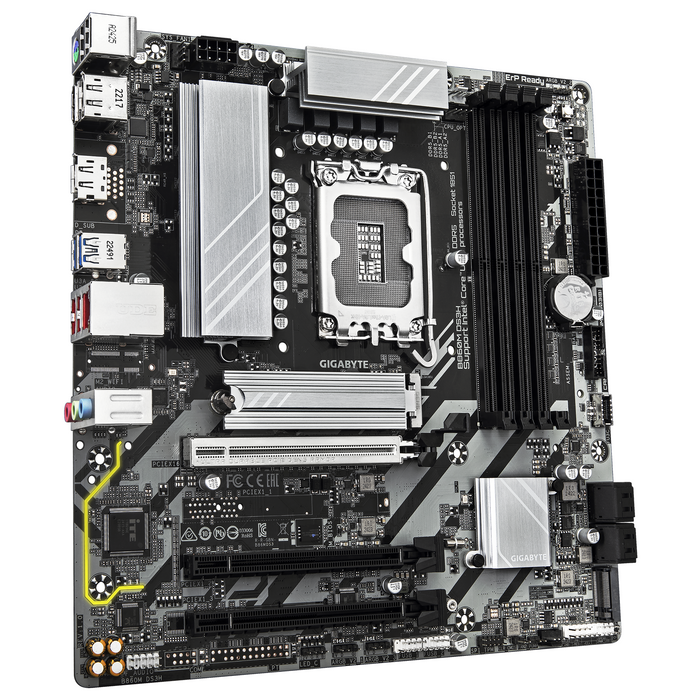

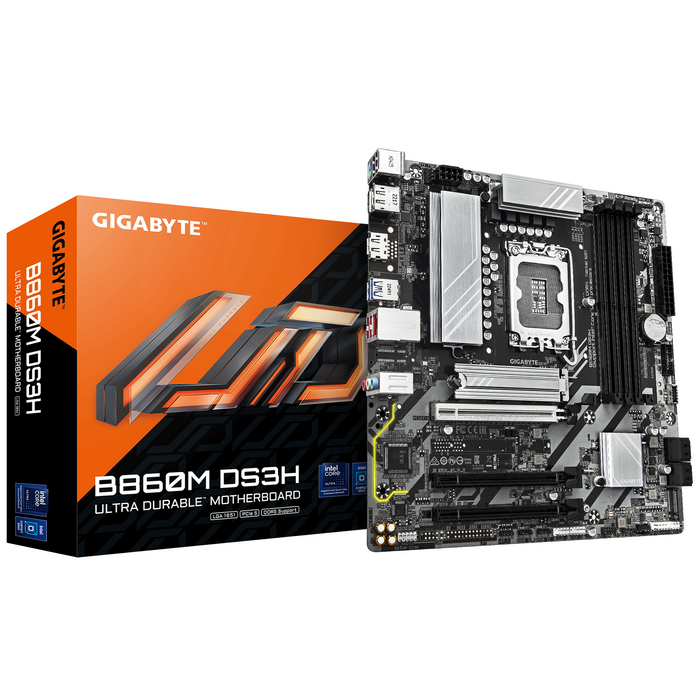

Motherboard GIGABYTE B860M DS3H, LGA 1851

Motherboard GIGABYTE B860M DS3H, LGA 1851

GIGABYTE
€210,90 - €210,90
€210,90
€210,90 - €210,90
€210,90
SKU DGT0146955
Ships within 4 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Warranty period 3 year(s)

Processor

Compatible processor series Intel Core Ultra (Series 2), Intel® Core™ Ultra (Series 1)
Processor manufacturer Intel
Supported processor sockets LGA 1851
Processor socket LGA 1851 (Socket V1)

Graphics

HDCP Yes
DirectX version 12.0
Maximum resolution 4096 x 2160 pixels
Support for parallel processing technologies Not supported

Features

Audio chip Realtek ALC897
Product colour Dark brown
Motherboard chipset Intel B860
Computer health monitoring Fan, Water cooling, Voltage, Temperature
Motherboard form factor micro ATX
Audio output channels 7.1 channels
Supported Windows operating systems Windows 11 x64, Windows 10 x64
Cooling type Passive
Motherboard chipset family Intel
Power supply type ATX

Memory

Supported memory speeds 9066 MHz, 5600, 6400 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Memory slot type DIMM
Memory channels Dual-channel
ECC compatibility ECC and Non-ECC
Supported memory types DDR5-SDRAM
Supported memory clock speed (max.) 9066 MHz
Maximum internal memory per slot 64 GB
Number of memory slots 4

Weight and dimensions

Height 35 mm
Depth 244 mm
Width 244 mm

Network

LAN controller Realtek RTL8125
Ethernet interface type 2.5 Gigabit Ethernet
Wi-Fi No
Ethernet LAN Yes

Internal I/O

USB 2.0 connectors 2
RGB LED pin header Yes
EPS power connector (8-pin) Yes
Number of EPS power connectors (8-pin) 1
Front panel connector Yes
Front panel audio connector Yes
TPM connector Yes
Number of water pump connectors 2
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
CPU fan connector Yes
Number of chassis fan connectors 2
Number of CPU fan connectors 2
Number of RGB LED pin headers 4
ATX power connector (24-pin) Yes

BIOS

Desktop Management Interface (DMI) version 2.7
BIOS type UEFI AMI
CMOS clear jumper Yes

Packaging data

Packaging width 265 mm
Package weight 1.09 kg
Package depth 265 mm
Package height 54 mm

Package contents

Batteries included Yes
Screws included Yes

Storage controllers

Supported drive types HDD and SSD
Supported drive interfaces M.2, SATA III
Number of supported drives 6
RAID levels 10, 5, 0, 1
RAID support Yes
Number of supported hard drives 4

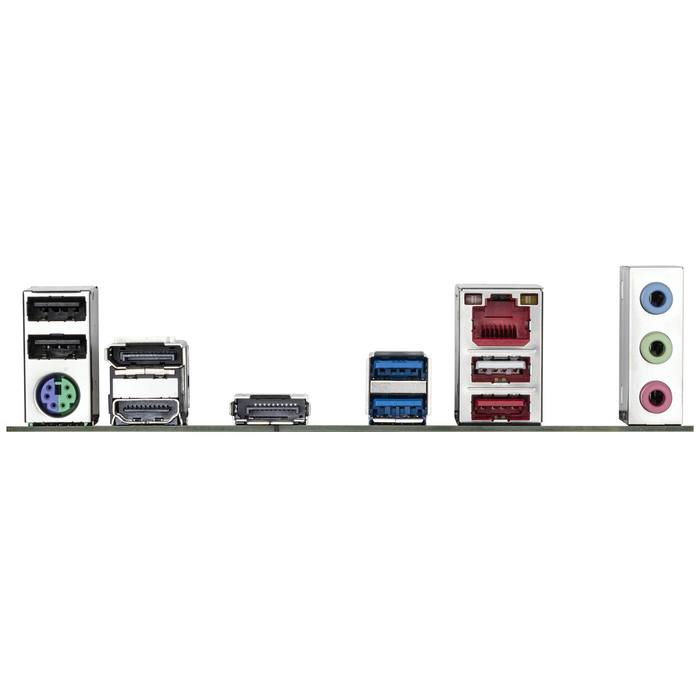

Rear panel ports

Number of DisplayPort ports 2
DisplayPort version 2.1
Headphone outputs 1
Line input Yes
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 2
Number of PS/2 ports 1
Number of USB 2.0 ports 3
Microphone input Yes
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 1
Ethernet LAN ports (RJ-45) 1
HDMI version 2.1

Expansion slots

Largest key size for 1st M.2 2280
Highest PCI Express generation for 2nd M.2 4.0
Largest key size for 2nd M.2 2280
Highest PCI Express generation for 1st M.2 5.0
PCI Express x16 (Gen 4.x) slots 5
Number of M.2 (M) slots 2
PCI Express x16 (Gen 5.x) slots 1

Battery

Number of battery cells 1
Battery type CR2032
Battery weight 3 g
Lithium battery weight 0.07 g
Battery technology Lithium manganese dioxide (LiMnO2)

Other features

Weight 1 kg

Logistics data

Country of origin China
Products in main (inner) carton 1 pc.

Safety warning

Warnings In case of installation problems, contact a qualified service technician. When disposing of the product, follow local electronics recycling regulations. Do not open or modify the motherboard, to prevent damage.
