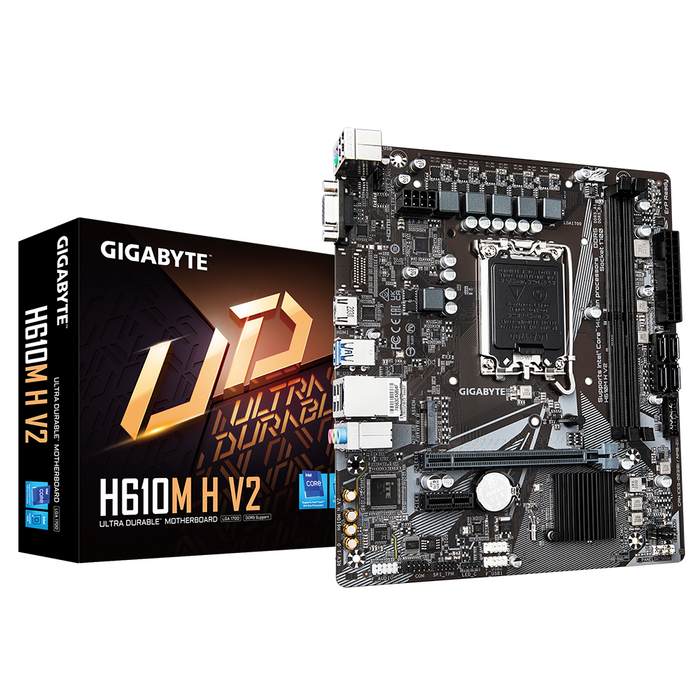

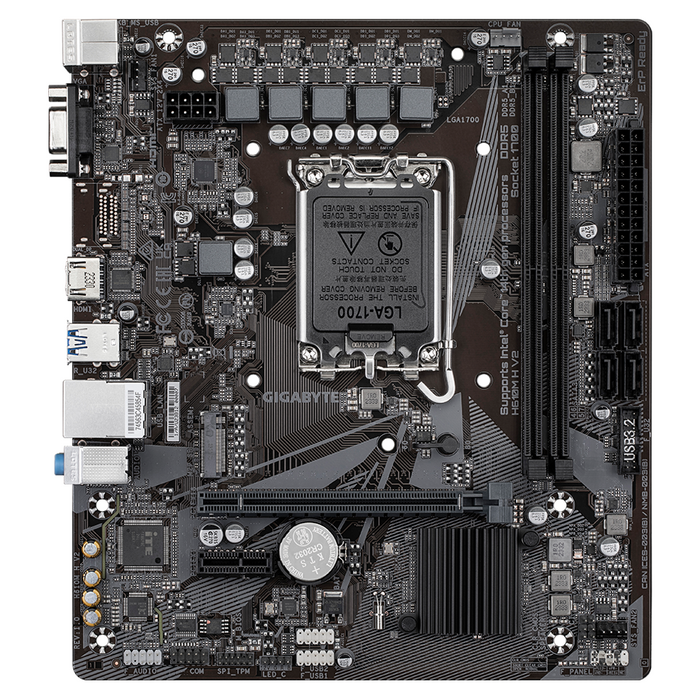

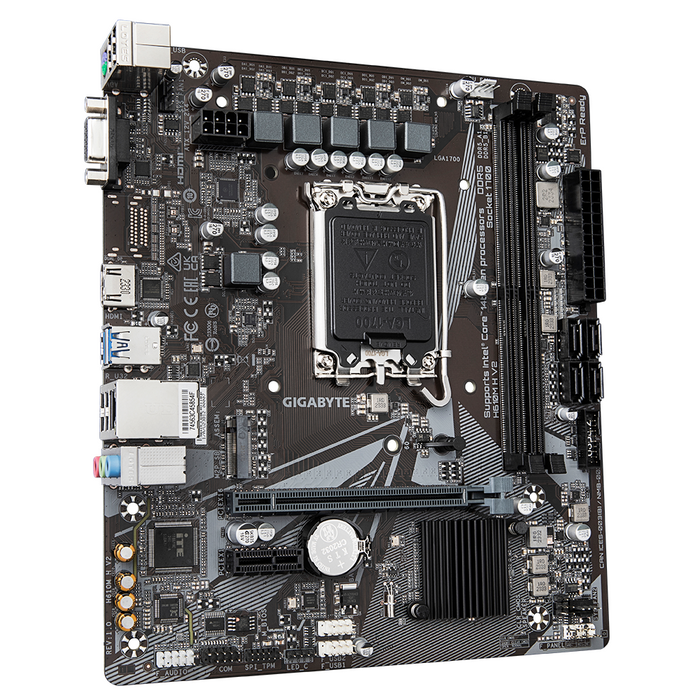

Motherboard GIGABYTE H610M H V2 Socket 1700, DDR5 rev 1.0, Micro ATX

Motherboard GIGABYTE H610M H V2 Socket 1700, DDR5 rev 1.0, Micro ATX

GIGABYTE
€92,90 - €92,90
€92,90
€92,90 - €92,90
€92,90
SKU DGT0105705
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Warranty period 3 year(s)

Processor

Maximum internal memory supported by the processor 96 GB
Compatible processor series Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer Intel
Processor socket LGA 1700
Supported processor sockets LGA 1700

Graphics

Graphics card series Intel
Video card HD Graphics
HDCP Yes
Support for parallel processing technologies Not supported
Maximum resolution 4096 x 2304 pixels

Features

Computer status monitoring Water cooling, Temperature, Fan, Voltage
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Cooling type Active
Motherboard chipset family Intel
Audio chip Realtek ALC897
Power supply type ATX
Supported Windows operating systems Windows 11 x64, Windows 10 x64
Product colour Black
Motherboard chipset Intel H610 Express

Memory

Memory channels Dual-channel
Number of memory slots 2
Memory slot type DIMM
Supported memory types DDR5-SDRAM
Supported memory frequency (max.) 5600 MHz
ECC compatibility ECC and Non-ECC
Supported memory speeds 5600, 4800, 5200, 4400 MHz
Maximum internal memory 96 GB
Supported memory capacities 1GB, 32GB, 2GB, 4GB, 8GB, 48GB, 12GB
Unbuffered memory Yes

Weight and dimensions

Depth 196 mm
Height 35 mm
Width 230 mm

Network

Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No

Internal I/O

12V power connector Yes
RGB LED pin header Yes
ATX power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
Serial port headers 1
USB 2.0 connectors 2
CPU fan connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
EPS power connector (8-pin) Yes
TPM connector Yes
Front panel connector Yes

BIOS

CMOS clear jumper Yes
Desktop Management Interface (DMI) version 2.7
BIOS type UEFI AMI
Clear CMOS button Yes

Packaging data

Package height 54 mm
Package weight 694 g
Package depth 265 mm
Package width 265 mm

Package contents

Included batteries Yes
Included cables SATA

Storage controllers

Number of supported drives 5
Number of supported hard drives 1
Supported drive types HDD and SSD
Supported drive interfaces M.2, SATA III

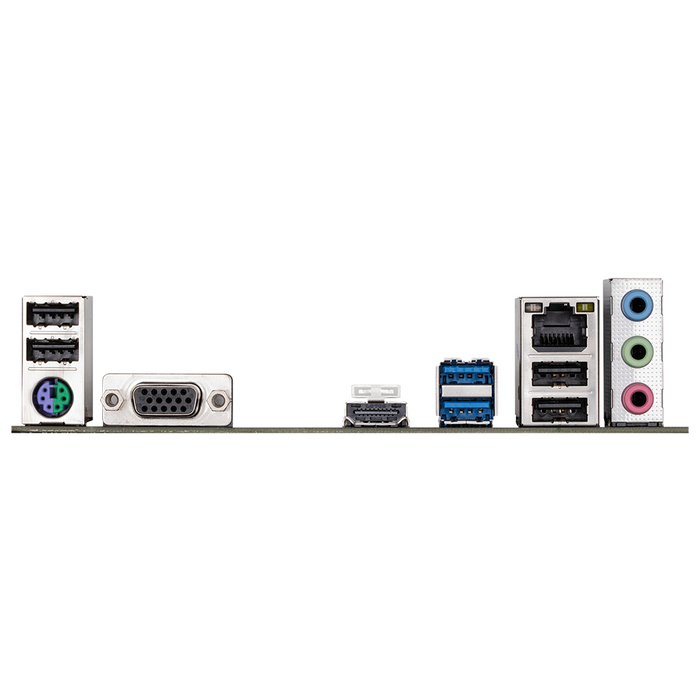

Rear panel ports

Number of PS/2 ports 1
Headphone outputs 3
Microphone input Yes
Number of VGA (D-Sub) ports 1
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 2
USB connector type USB Type-A
Ethernet LAN (RJ-45) ports 1
Number of USB 2.0 ports 4

Expansion slots

PCI Express x1 slots 1
Number of M.2 (M) slots 1
PCI Express x16 slots 1

Battery

Battery weight 3 g
Battery type CR2032
Number of battery cells 1
Battery technology Lithium manganese dioxide (LiMnO2)
Lithium weight per battery 0.07 g

Logistics data

Products in master (inner) carton 1 pc.
Country of origin China
