Description
HDMI Delock switch for up to five HDMI devices (HDMI monitor, TV, transmitter...).

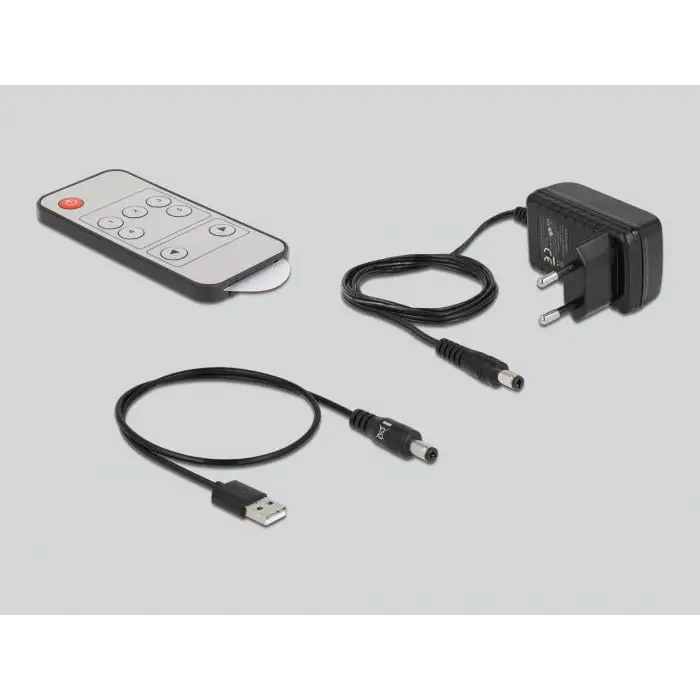

Switching between the different HDMI devices is done using a button or remote
control.

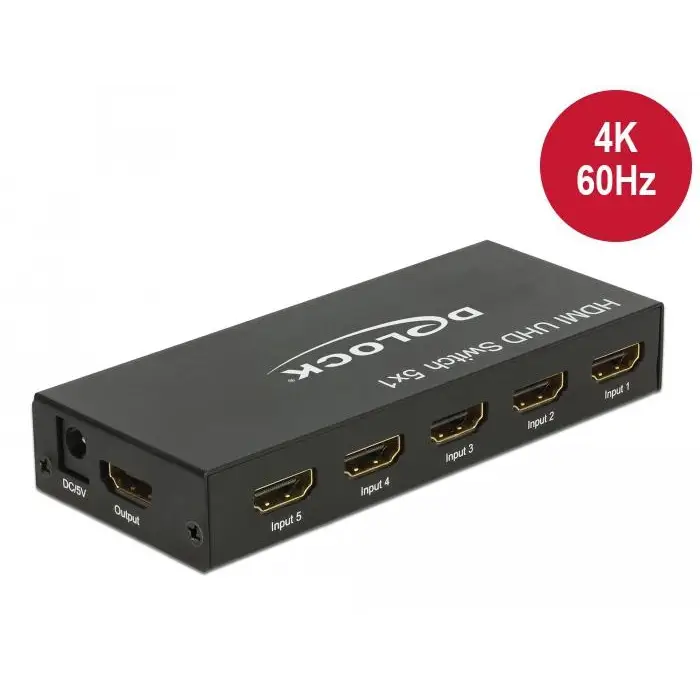

• Connection:
Input:
5 x HDMI-A 19 pin female
1 x DC 5 V power connector
Output:
1 x HDMI-A 19 pin female
• Switching between HDMI ports: via button or infrared remote control

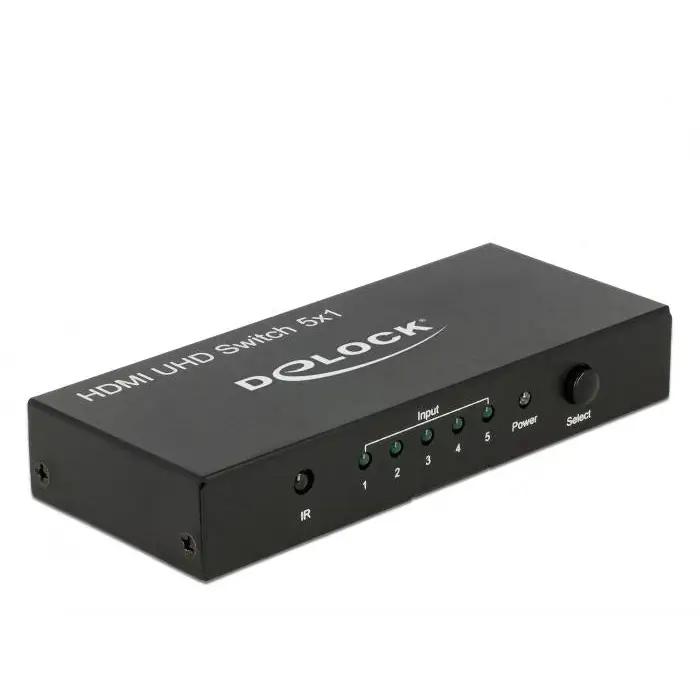

• LED indicators for active HDMI port
• High-speed HDMI
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Supports HDR
• Supports CEC
• Supports resolution up to 3840 x 2160 at 60 Hz
(depending on the system and connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps, 18 Gb/s max.
• Power consumption: max. 2.0 W
• Metal housing
• Color: black
• Dimensions: ca. 123 x 51 x 20 mm
