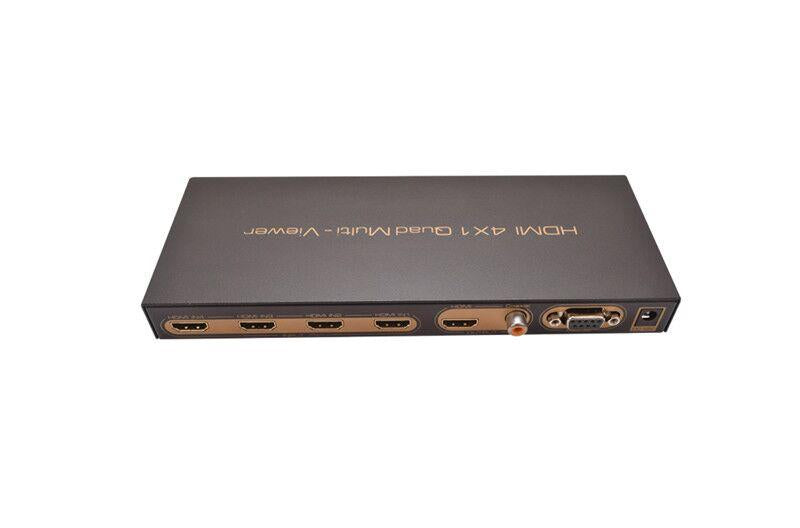

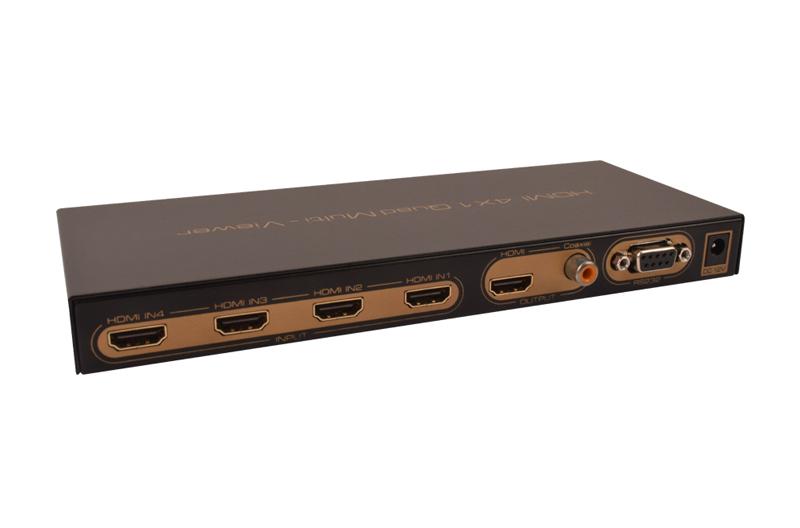

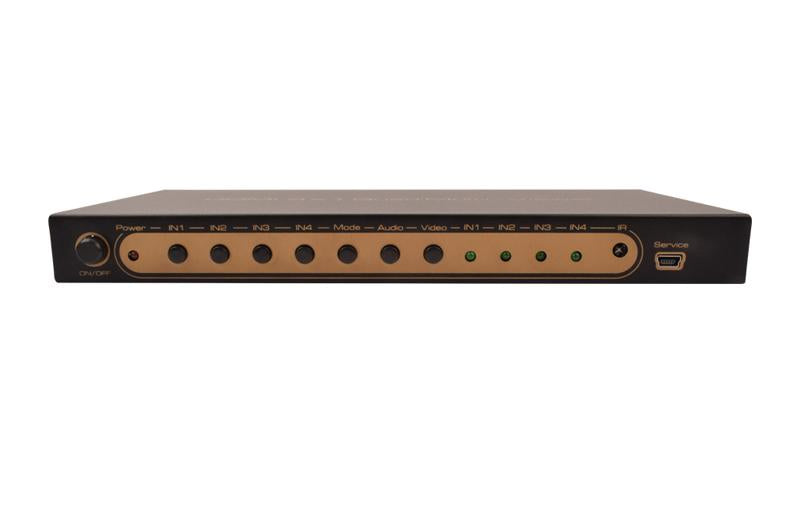

Auto switcher ASK 4/1 Quad Multi-Viewer, 4 inputs 1 output

Four HDMI input signals are switched to one HDMI output
Supports four HDMI inputs to one Quad Multi-Viewer
Supports four wireless HDMI inputs
HDMI input resolution (highest): 1080P @ 60Hz
HDMI output resolution: 720P/60Hz. 1080P/60Hz
Supports SPDIF Coaxial digital audio format: Dolby digital (AC3), DTS and LPCM2.0
Remote control.
RS232 port for PC connection.
LED indication of device status
No loss of quality
Easy installation
Power supply: DC12V/1.5A

HDMI input resolution ………………………………1080p/1080i/720p/576p/576i/480p/480i
Max transmission bandwidth…….………………….…………………………….. 225MHz
Max baud rate……………………………………………………………………………………6.75Gbps
Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts pp
Input/Output DDC signal …………………………………………..………… 5Volts pp (TTL)
Input cable distance..…... ………………………….. ≤10m AWG26 HDMI standard cable
Output cable distance………………………………..... ≤10m AWG26 HDMI standard cable
Max working current…………………………………………………………………………700mA
Power adapter format……………..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1.5A
Operating Temperature range……..…………….…………………………………………0 to +40℃
Storage Temperature range……………………………………………………………… -15 to +55℃
Operating Humidity range…………………….….……….5 to 90%RH (No Condensation)
Storage Humidity range…………………….….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………..…220X87X23(mm)
Weight…..…………………………………………………………..…….……..…………………443g
