| Marketing description |

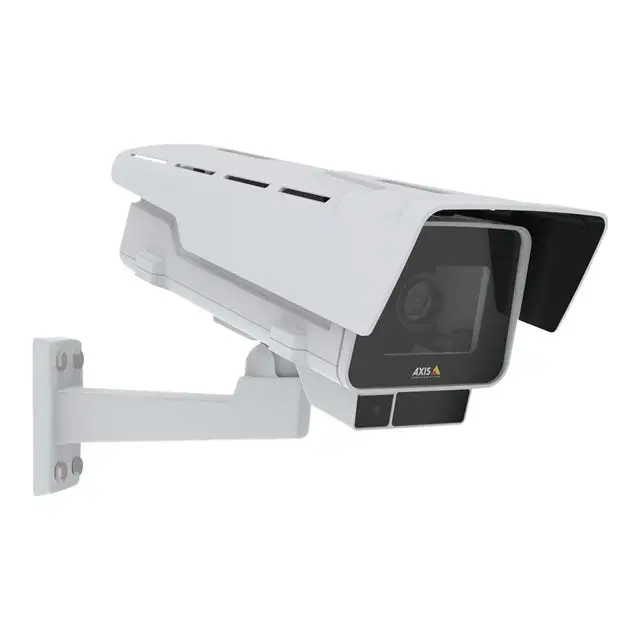

| The AXIS P1378-LE network camera delivers clear, sharp images in any daytime or night-time scene. This rugged fixed-box camera acts as a deterrent and is ideal for monitoring wide open areas where a high level of detail is required, such as at airports, loading zones and public transport systems. |
| Product features |
-
No detail is too small
With outstanding resolution, AXIS P1378-LE captures detailed images of fast-moving objects and people. Thanks to H.264/H.265 support, the camera provides exceptional savings in bandwidth and storage requirements without compromising image quality. It offers scene profiles, corridor format and electronic image stabilisation for steady images in situations where the camera is subjected to vibration.
-
Shine light at night
AXIS P1378-LE delivers excellent image quality regardless of lighting conditions. It is designed to be dependable in harsh environments and can withstand extreme temperatures. The housing protects against water, corrosion and dust. In addition, it has a video streaming indicator that makes it easy to check that video is being streamed and is working.
-
Secured
AXIS P1378-LE is packed with advanced security features to prevent unauthorised access and protect your system. Signed firmware and secure boot ensure that the firmware has not been compromised and that only authorised firmware is installed. And if needed, secure startup ensures that the camera is completely free of malicious software after factory defaults.
|
| General |
| Device type |
Network surveillance camera |
| Audio support |
Yes: Two-way audio capability |
| Audio formats |
G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera mounting type |
Wall mount |
| Connectivity technology |
Wired |
| Width |
40.4 cm |
| Depth |
15.9 cm |
| Height |
16.8 cm |
| Weight |
2.4 kg |
| Camera |
| Type |
Colour - Day and night - fixed - outdoor |
| Digital video format |
MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Maximum digital video resolution |
3840 x 2160 |
| Motion detection |
Yes |
| Video modes |
4K |
| Exposure range |
1/5 s - 1/8500 s |
| Minimum illumination |
0.15 lux - colour - F1.5 - 50 IRE
0.03 lux - B and W - F1.5 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared distance |
50 m |
| Digital video capture resolution |
3840 x 2160, 160 x 90 |
| Frame rate (max.) |
30 frames per second |
| RAM |
2 GB |
| Flash memory |
512 MB |
| Features |
Sharpness control, white balance, progressive scan, saturation control, brightness control, contrast control, email alerts, image mirroring, "Privacy Mask" function, full-duplex audio, Lightfinder technology, active tamper alarm, digital PTZ function, event notification, password protection, distortion correction function, impact detection, IR lens correction, sound detection, OptimizedIR, Zipstream technology, ONVIF support (S profile), ONVIF support (G profile), image overlay, exposure control, infrared filter, Forensic WDR, IP address filtering, electronic image stabilisation, automatic defrosting, secure boot, ONVIF support (T profile) |
| Image sensor |
| Type |
CMOS 1/2" |
| Lens construction |
| Type |
CS-mount - vari-focal |
| Optical zoom |
2.6 x |
| Focal length |
3.9 mm - 10 mm |
| Lens iris |
F/1.5 automatic aperture (P-Iris) |
| Horizontal field of view (degrees) |
45 - 115 |
| Vertical field of view (degrees) |
25 - 61 |
| Interfaces |
| Network interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network protocols |
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, USGv6 |
| Control interface |
RS-485, RS-422 |
| Alarm inputs, qty |
2 |
| Alarm outputs, qty |
2 |
| Expansion / connectivity |
| Ports |
LAN/power - RJ-45
Audio line input/microphone - 3.5 mm jack
Audio line output - 3.5 mm jack
Serial RS-485/RS-422 - terminal block |
| Supported memory cards |
microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous |
| Included accessories |
Wall mount bracket, sun shield, connector kit, IK10 tool, Torx T20 screwdriver, Torx T30 screw bit |
| Compliant standards |
EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, EN 60529, IEC 62471, IEC 60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Colour |
White |
| Power |
| Power requirements |
DC 12 - 28 V / PoE |
| Power supply |
20.7 Watt |
| Software / system requirements |
| Included software |
Windows decoder 1-user licence |
| Manufacturer warranty |
| Service and support |
Limited warranty - 3 years |
| Environmental parameters |
| Minimum operating temperature |
-40 °C |
| Maximum operating temperature |
60 °C |
| Relative humidity (operating) |
10 - 100% |
