| Marketing description |

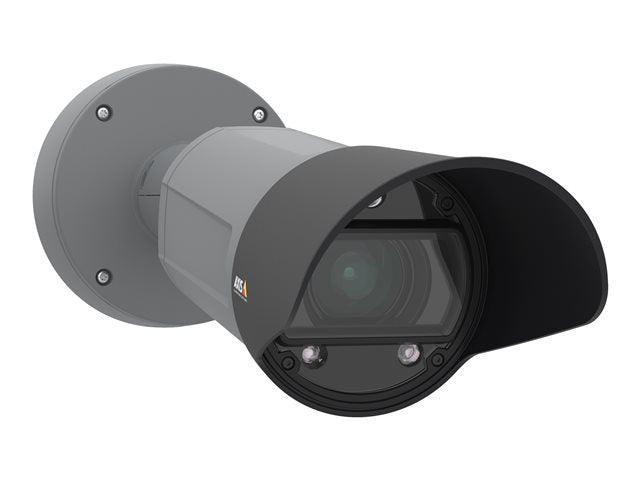

| The AXIS Q1700-LE License Plate Camera is Axis's first dedicated license plate camera, allowing you to capture clear images 24/7. Thanks to its open platform, you get flexible integration with third-party analytics solutions. This makes the AXIS Q1700-LE ideal for road and city security, vehicle monitoring, for example suspicious movement, tracking cars or goods, as well as law enforcement purposes, for example collecting forensic evidence or searching for stolen vehicles. |
| Product features |
-
Designed for capture
The AXIS Q1700-LE is specially designed to capture images of license plates with exceptional clarity and sharpness. It provides excellent HDTV 1080p and ensures the pixel density needed to identify license plates, as well as markings, for example when transporting dangerous goods.
-
Rugged for the road
The AXIS Q1700-LE captures images of license plates with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This rugged, waterproof camera includes an extended protective visor for protection in any environment. It withstands hurricane-force winds above 60 m/s (134 mph), and with IP66, NEMA 4X and IK10 certifications, you can be sure it is resistant to both harsh weather conditions and impacts. In addition, the grey housing cover and black visor blend into any road environment.
-
Add any analytics functions
The AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use third-party analytics or other applications to meet your specific needs.
|
| General |
| Device type |
Network surveillance camera |
| Audio support |
Yes |
| Audio formats |
G.726, AAC-LC, LPCM, G.711, OPUS |
| Connection technology |
Wired |
| Width |
43.9 cm |
| Depth |
14.7 cm |
| Height |
14.7 cm |
| Weight |
2.4 kg |
| Camera |
| Type |
Colour - day and night - with pan / tilt / zoom - for outdoor, for indoor - waterproof |
| Digital video format |
MJPEG, H.264 |
| Maximum digital video resolution |
1920 x 1080 |
| Exposure range |
1 sec - 1/66500 sec |
| Minimum illumination |
0.16 lux - colour - F1.4 - 50 IRE
0.03 lux - b/w - F1.4 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Infrared range |
50 m |
| Digital video capture resolution |
160 x 120, 1920 x 1080 |
| Frame rate (max.) |
60 frames per second |
| RAM |
1024 MB |
| Flash memory |
512 MB |
| Features |
Sharpness control, white balance, saturation control, brightness control, contrast control, NAS readiness, OptimizedIR, Zipstream technology, ONVIF support (Profile S), ONVIF support (Profile G), Forensic WDR, exposure zone, motion detection, VAPIX support |
| Image sensor |
| Type |
RGB CMOS 1/2.8" |
| Lens construction |
| Optical zoom |
8 x |
| Focal length |
18 mm - 137 mm |
| Lens aperture |
F/2.9-4.1 |
| Focus adjustment |
Automatic |
| Horizontal field of view (degrees) |
2.3 - 16 |
| Vertical field of view (degrees) |
1.3 - 9.6 |
| Interfaces |
| Network interface |
Ethernet 10Base-T/100Base-TX |
| Network protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, LLDP, USGv6 |
| Extensions / connectivity |
| Ports |
LAN/power - RJ-45
Terminal block
Audio input/microphone - 3.5 mm jack |
| Supported memory cards |
microSD card, microSDHC card, microSDXC card |
| Miscellaneous |
| Included accessories |
Connector kit, Resistorx L-key |
| Compatible standards |
EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK08, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, EAC, NEMA TS-2, IS13252, FCC CFR47 Part 15 B Class A, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 62262 IK10, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, EN 62262 IK08, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, NIST SP500-267 |
| Colour |
Dark grey |
| Power |
| Power requirements |
PoE Class 3 |
| Software / system requirements |
| Included software |
Windows decoder 1-user licence |
| Manufacturer's warranty |
| Service and support |
Limited warranty - 3 years |
| Environmental parameters |
| Minimum operating temperature |
-40 °C |
| Maximum operating temperature |
60 °C |
| Relative humidity (operating) |
10 - 100% |
