| Marketing description |
| Sometimes you need a slow, steady pan. At other times it is important to be on the spot in a flash. With the responsive AXIS Q8685-LE network PTZ camera, you set the pace for uninterrupted, long-distance surveillance of large outdoor areas. AXIS Q8685-LE features infrared illumination and a built-in optical infrared filter, so even complete darkness or difficult mixed lighting conditions are no obstacle. |
| Product features |
-
Fast and smooth
AXIS Q8685-LE lets operators choose between high-speed and ultra-slow pan and tilt movement - from 0.05 to 120 degrees per second. This gives them smooth, jerk-free panoramic viewing when needed, and lets them react quickly to events. The camera can be mounted on poles, columns or walls for a 360° panoramic view and a view from ground to sky from -90° to 45°. It can operate in extreme temperatures and withstands hurricane-force winds while in motion, at speeds up to 52 metres per second (117 miles per hour), and winds over 60 metres per second (135 miles per hour) while in motion and without a sunshield.
-
Far and wide
With 30x optical zoom and excellent pan and tilt capabilities, AXIS Q8685-LE provides identification over long distances and the widest possible field of view in every direction. It features WDR - Forensic Capture (Wide Dynamic Range) for clarity and detail in scenes with dark and light areas. It also has a focus recall function for instant focusing on areas you define. In addition, AXIS Q8685-LE automatically zooms in on objects recognised in predefined areas, thanks to Advanced Gatekeeper.
-
Night and day
AXIS Q8685-LE is equipped with powerful infrared LED illuminators for sharp video in complete darkness up to 500 metres (1640 feet) without a deflecting lens. The illuminators have a wide range and long life, which makes AXIS Q8685-LE the right choice for surveillance where there is little or no light source. Thanks to built-in optical cut and pass filters for the infrared spectrum, AXIS Q8685-LE delivers superior image quality even in difficult mixed lighting conditions.
-
Fast and easy

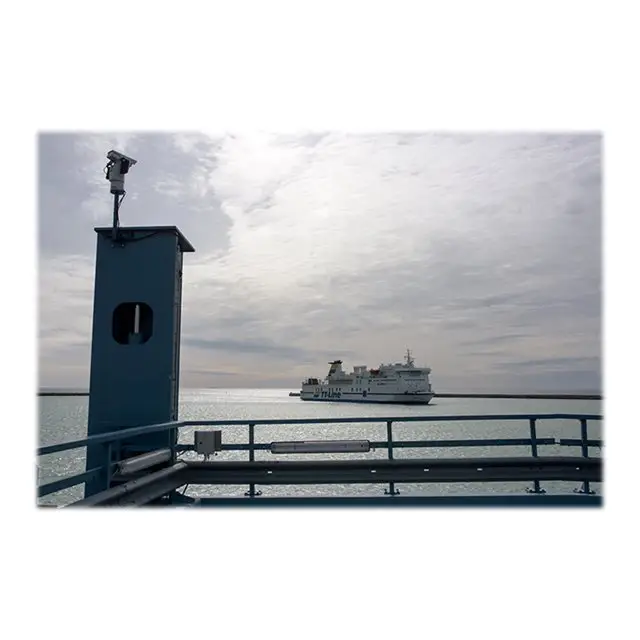

The slim design and many available accessories of AXIS Q8685-LE let you install it wherever you want. It has an SFP slot, so it supports a cost-effective optical connection over long distances. Maintenance is simplified by the remote-controlled washing kit and the built-in long-life wiper for the camera window. An optional power cable 22 metres (72 feet) long is available as an accessory, designed for heavy-duty operation. The cable is designed for outdoor use, has 3 conductors, 12AWG and a sheath diameter of 10 mm (0.4 inches).
|
| General |
| Device type |
Network surveillance camera |
| Connection technology |
Wired |
| Width |
49.5 cm |
| Depth |
41.1 cm |
| Height |
58 cm |
| Weight |
18.4 kg |
| Camera |
| Type |
Colour - Day and night - pan / tilt / zoom - dust-proof / weather-resistant |
| Digital video format |
MJPEG, H.264, MPEG-4 AVC |
| Maximum digital video resolution |
1920 x 1080 |
| Motion detection |
Yes |
| Video modes |
720p, 1080p |
| Digital zoom |
12 |
| Exposure range |
2 sec - 1/66500 sec |
| Minimum illumination |
0.2 lux - colour - F1.6 - 30 IRE
0.01 lux - B&W - F1.6 - 30 IRE
0.25 lux - colour - F1.6 - 50 IRE
0.02 lux - B&W - F1.6 - 50 IRE
0 lux - IR |
| Infrared LEDs |
Yes |
| Digital video capture resolution |
320 x 180, 1920x1080 |
| Frame rate (max.) |
60 frames per second |
| RAM |
512 MB |
| Flash memory |
256 MB |
| Functions |
Backlight compensation (BLC), sharpness control, white balance, colour control, brightness control, sun shield, contrast control, 256 preset positions, NAS readiness, 3D privacy mask function, video motion detection technology, live streaming, password protection, tamper detection, Zipstream technology, access control, autofocus, exposure control, pixel counter support, digital code authentication, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone |
| Image sensor |
| Type |
CMOS 1/2.8" |
| Lens design |
| Type |
Motorised zoom |
| Optical zoom |
30 x |
| Focal length |
4.3 mm - 129 mm |
| Lens iris |
F/1.6-4.7 automatic iris |
| Focus adjustment |
Automatic |
| Horizontal field of view (degrees) |
2 - 65.6 |
| Vertical field of view (degrees) |
1.2 - 39 |
| Pan |
| Range (degrees) |
360 |
| Speed (degrees/sec) |
Up to 120 |
| Tilt |
| Range (degrees) |
-From 90 to 45 |
| Speed (degrees/sec) |
Up to 60 |
| Interfaces |
| Network interface |
Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network protocols |
DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Expansion / connectivity |
| Ports |
LAN - SFP
LAN - RJ-45 |
| Supported memory cards |
Memory card SD, SDXC memory card, SDHC memory card |
| Miscellaneous |
| Included accessories |
Torx T20 and T30 bits, power connector, AXIS PT IR Illuminator Kit C infrared illuminator kit |
| Compliant standards |
VCCI Class A ITE, EN55024, EN 61000-6-1, EMC, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IP66, ISO 4892-2, IEC 62262 IK10, EN 50121-4, IEC 62236-4, IEC/EN 60598-1, IEC EN60529, EN 62368-1, IEC 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, EN 55032:2012, Class A, CISPR 32, Class A, UL 62368-1 |
| Colour |
White |
| Power |
| Power requirements |
DC 24 V / AC 24 V |
| Software / System requirements |
| Included software |
AXIS Camera Companion, AXIS Camera Station, Windows decoder licence for 1 user |
| Manufacturer's warranty |
| Service and support |
Limited warranty - 3 years |
| Environmental parameters |
| Minimum operating temperature |
-50 °C |
| Maximum operating temperature |
55 °C |
| Relative humidity (operating) |
10 - 100% |
