Description
Scanner type: two-way
Light source: 650 nm visible laser diode
Scan speed: 100 scans per second typical
Nominal working distance: from contact to 43 cm or 100% UPC/EAN symbols
Print contrast: 20% minimum reflective difference
Roll (Tilt): +/- 30 degrees
Tilt: +/- 65 degrees
Yaw: +/- 60 degrees
Decoding capability: UPC/EAN, UPC/EAN with supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII,
Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5,
Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5
Supported interfaces: RS232, Keyboard Wedge, Wand, IBM 468X/9X, USB, Synapse and Undecoded

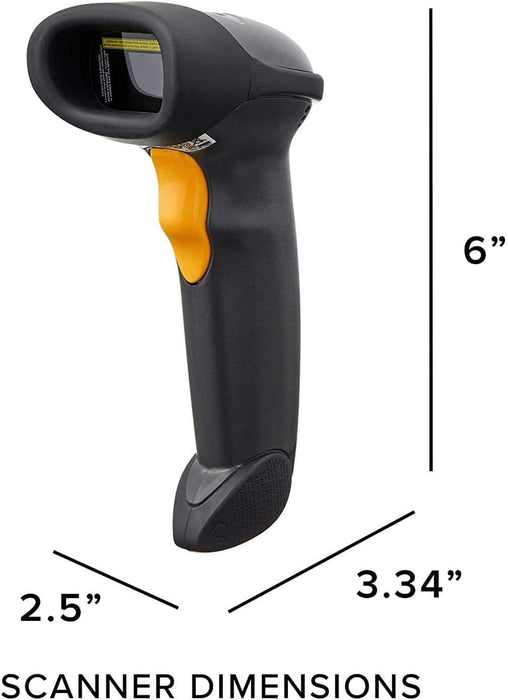

Dimensions: 15.2 cm H x 6.3 cm W x 8.4 cm
Weight: 146 gm
Supply voltage: 5 volts +/- 10%
Current: 130 mA typical, 175 mA max
Power Supply: Host or external power supply
