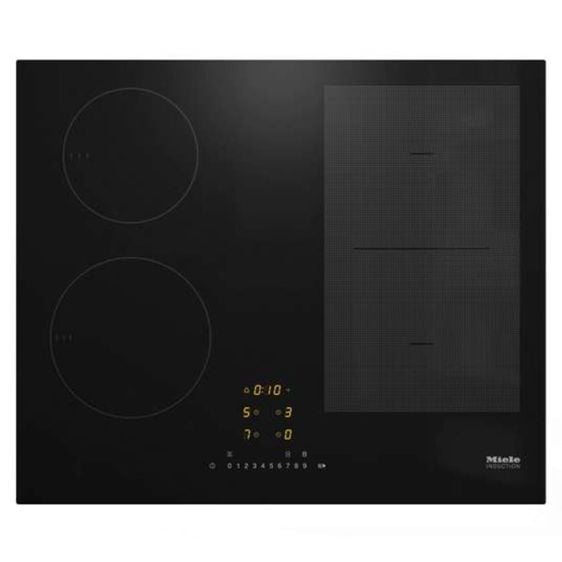

Built-in counter MIELE KM 7466 FL 125 Edition

Technical specifications:

Anniversary promotion

• Models for our 125th anniversary •

Warm-up type

• Heating type Induction
• Construction type
• Independent of the stove •

Design

• Elegant glass ceramic surface •
• Ceramic surface color Black
• Hidden •
• Surface mounting •

Cooking zone data

• Number of cooking zones 4
• Number of cooking zones 1
• Maximum number of pans 4
• Cooking zones with PowerFlex tech
• Issue 2
• Type PowerFlex cooking zone
• Size in mm Ø 150 – 230
• Max. rated power in W 2100
• Max. rated power in W with Booster function 3000
• Max. rated power in W with TwinBooster function 3650
• 1st cooking zone/place

Position front left

• Type Two-chain circle
• Size in mm Ø 140-190
• Max. rated power in W 1850
• Max. rated power in W with Booster function 2500
• Max. rated power in W with TwinBooster function 3000
• 2nd cooking zone/place

Position rear left

• Type Two-chain circle
• Size in mm Ø 100-160
• Max. rated power in W 1400
• Max. rated power in W with Booster function 1700
• Max. rated power in W with TwinBooster function 2200
• 3rd cooking zone/place

Position right

• PowerFlex bridge type
• Size in mm 230x390
• Max. rated power in W 3400
• Max. rated power in W with Booster function 4800
• Max. rated power in W with TwinBooster function 7300

User convenience

• Connecting to Miele@home •
• Automatic Con@ctivity function •

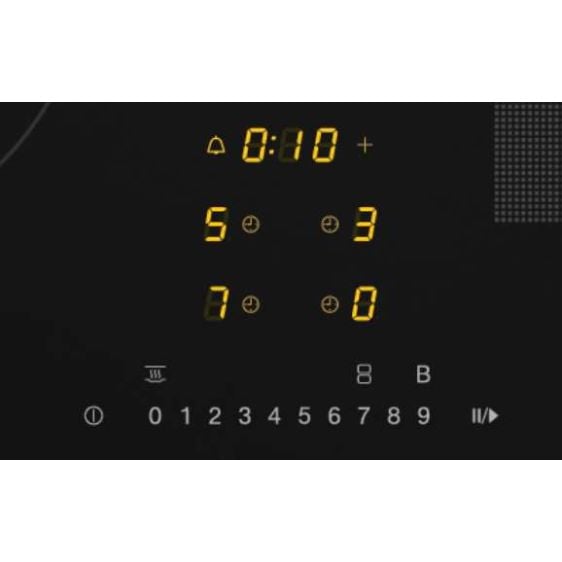

• Control via ComfortSelect touch buttons
• Display color Yellow
• Constant pan recognition •
• Vessel and vessel size recognition •
• Stop & Go function •
• Call function •
• Reminder timer •
• Safety shutdown •
• Automatic heating •
• Keeping food warm •
• Individual setting options (e.g. sound signals) •

Efficiency and sustainability

• Rated power in “off” mode in W 0.5
• Rated standby power in W 1
• Rated power in networked standby mode in W 2
• Time until automatic switching to “off” mode in minutes 20
• Time until automatic standby in minutes 20
• Time to automatically switch to networked standby in minutes 20

Convenience of cleaning

• Easy-to-clean glass ceramic •

Safety

• Safety shutdown •
• Lock function •
• Power-on lock •
• Built-in cooling fan •
• Overheating protection •
• Residual heat indication •

Technical characteristics

• Dimensions in mm (width) 620
• Dimensions in mm (height) 51
• Housing height including electrical box in mm 51
• Dimensions in mm (depth) 520
• Slot dimensions in mm (width) with surface mounting 600
• Slot dimensions in mm (depth) with surface mounting 500
• Internal cutout dimensions in mm (width) with concealed installation 600
• Internal cutout dimensions in mm (depth) with concealed installation 500
• External cutout dimensions in mm (width) with concealed installation 624
• External cutout dimensions in mm (depth) with concealed installation 524
• Weight in kg 11
• Total rated power in kW 7.3
• Voltage in V 230
• Frequency in Hz 50-60
• Power cable length in m 1.4

Supplied accessories

• Network cable •
• Voucher for GGRP Gourmet Baking Plate •

Warranty: 25 months
