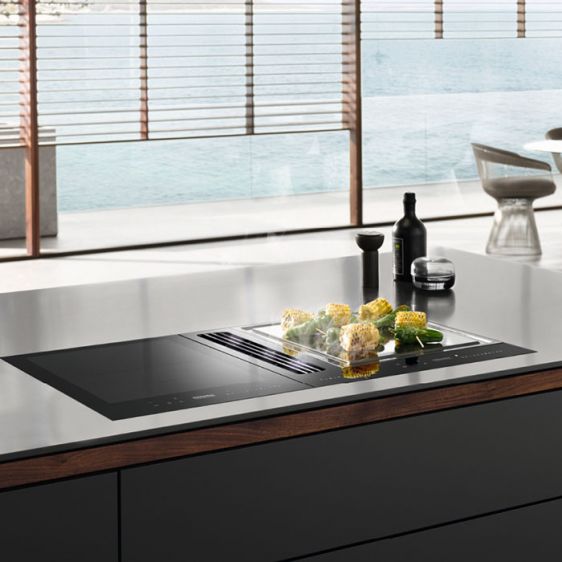

Built-in hood MIELE CSDA 7001 FL

Technical specifications:

• Product data - CSDA 7001 FL

Construction type

• Undermount hood with downdraft •

Design

• Concealed installation •
• Frameless – surface mounted •

User convenience

• Digital display for power level •
• Display color Yellow
• Remaining time 5 min. •

Efficiency and sustainability

• Annual electricity consumption in kWh/year 25.3
• ECO motor •

Convenience of cleaning

• Easy-to-clean glass ceramic •
• CleanCover •

Filter system

• Number of dishwasher-safe stainless steel grease filters 1
• Air intake with max. duct diameter in exhaust mode
• Air intake at Level 2 (m³/h) in accordance with EN 61591 290
• Sound power at Level 2 (dB(A) re 1 pW) in accordance with EN 60704-3 58
• Sound pressure at Level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 29
• Sound pressure at Level 2 (dB(A) re 20µPa) in accordance with EN 60704-2-13 43
• Sound pressure at Level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 51
• Sound power at Booster level (dB(A) re 20 µPa) in accordance with EN 60704-2-13 55
• Air intake in recirculation mode
• Air intake at Level 1 (m³/h) in accordance with EN 61591 100
• Air intake at Level 2 (m³/h) in accordance with EN 61591 235
• Air suction at Level 3 (m³/h) in accordance with EN 61591 380
• Air intake at Booster level (m³/h) in accordance with EN 61591 460
• Sound power at Level 1 (dB(A) re 1 pW) in accordance with EN 60704-3 49
• Sound power at Level 2 (dB(A) re 1 pW) in accordance with EN 60704-3 63
• Sound power at Level 3 (dB(A) re 1 pW) in accordance with EN 60704-3 73
• Sound power at Booster level (dB(A) re 1 pW) in accordance with EN 60704-3 78
• Sound pressure at Level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 34
• Sound pressure at Level 2 (dB(A) re 20µPa) in accordance with EN 60704-2-13 49
• Sound pressure at Level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 58
• Sound power at Booster level (dB(A) re 20 µPa) in accordance with EN 60704-2-13 63

Safety

• Safety shutdown •
• FlameGuard •

A set of technical characteristics

• Dimensions in mm (width) 120
• Dimensions in mm (height) 168
• Dimensions in mm (depth) 520
• Housing height including electrical installation box in mm 168
• Slot dimensions in mm (width) for top mounting 100
• Slot dimensions in mm (depth) for top mounting 500
• Internal slot dimensions in mm (width) for concealed installation 100
• Internal cutout dimensions in mm (depth) for concealed installation 500
• External cutout dimensions in mm (width) for concealed installation 124
• External cutout dimensions in mm (depth) for concealed installation 524
• Weight in kg 11
• Total rated power in kW 0.170
• Voltage in V 230
• Fuse rating in A 10
• Number of phases 1
• Length of the connecting cable in m 2

Installation instructions

• Base fan with ventilation connection •
• Side and rear air exhaust connection •
• Dimensions of the drain pipe connector in mm (width) 222
• Drain pipe connector dimensions in mm (depth) 89

Standard accessories

• Network cable with plug •

Warranty: 24 months
