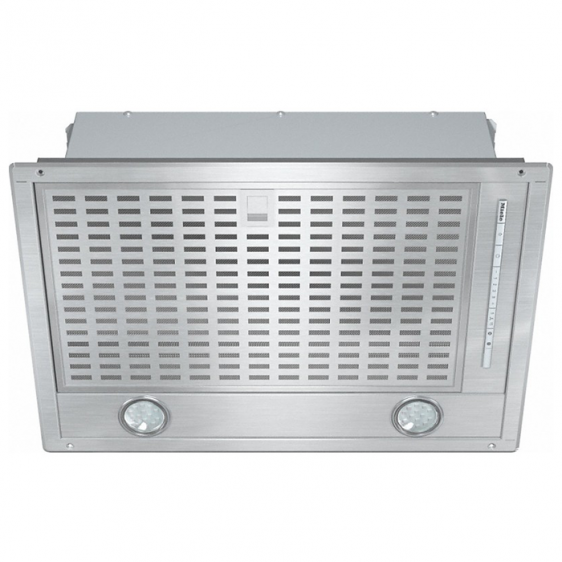

Built-in hood MIELE DA 2558

Technical specifications:

Construction type

• Fully integrated hood

Design

• Color Stainless steel

User convenience

• Electronic control •
• Touch buttons with LED •
• Power levels (number, excluding Booster setting) 3
• Booster setting •
• Programmable Booster shutdown •
• Remaining work 5/15 min •
• Programmable grease filter cleaning indicator •
• Indication for replacing the activated carbon filter

Convenience of cleaning

• Easy-to-clean CleanCover hood interior •

Efficiency and sustainability

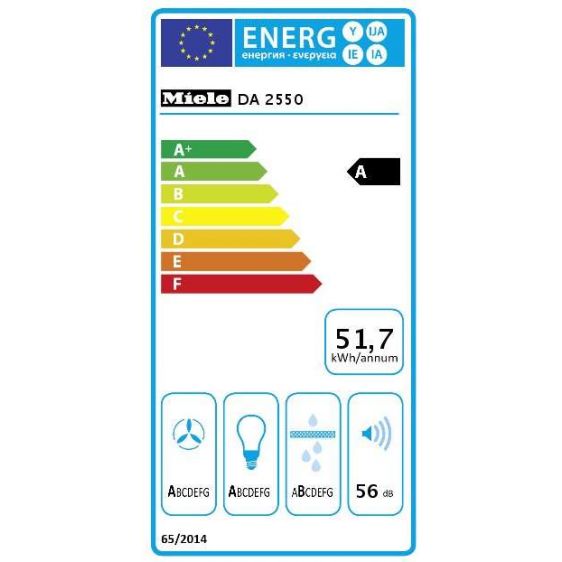

• Annual electricity consumption in kWh/year 51.7
• Hydrodynamic efficiency class A
• Lighting efficiency class A
• Grease filtration efficiency class B

Networking of household appliances

• Miele@home •
• WiFiConn@ct •
• MobileControl •
• Con@ctivity 2.0 automatic function •
• Con@ctivity 3.0 automatic function •

Filter system

• Dishwasher-safe stainless steel grease filters 1

Lighting

• LED •
• Number x W: 2 x 3 W
• Lighting intensity in Lx 330
• Color temperature in K 3.000

Fan

• Double-acting fan •
• AC (Alternating Current) electric motor •
• Air intake with max. duct diameter in ventilation mode (not for models with outdoor unit)
• Air intake at level 1 (m³/h) in accordance with EN 61591 250
• Air intake at level 2 (m³/h) in accordance with EN 61591 300
• Air intake at level 3 (m³/h) in accordance with EN 61591 360
• Air intake at Booster setting (m³/h) in accordance with EN 61591 600
• Sound power level for grade 1 (dB(A) re 1 pW) in accordance with EN 60704-3 47
• Sound power level for grade 2 (dB(A) re 1 pW) in accordance with EN 60704-3 51
• Sound power level for grade 3 (dB(A) re 1 pW) in accordance with EN 60704-3 56
• Sound power level at Booster setting (dB(A) re 1 pW) in accordance with EN 60704-3 67
• Sound pressure level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 32
• Sound pressure level 2 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 37
• Sound pressure level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 41
• Sound pressure level at Booster setting (dB(A) re 20 µPa) in accordance with EN 60704-2-13 52
• Air intake in recirculation mode
• Air intake at level 1 (m³/h) in accordance with EN 61591 200
• Air intake at level 2 (m³/h) in accordance with EN 61591 250
• Air intake at level 3 (m³/h) in accordance with EN 61591 320
• Air intake at Booster setting (m³/h) in accordance with EN 61591 530
• Sound power level for grade 1 (dB(A) re 1 pW) in accordance with EN 60704-3 55
• Sound power level for grade 2 (dB(A) re 1 pW) in accordance with EN 60704-3 59
• Sound power level for grade 3 (dB(A) re 1 pW) in accordance with EN 60704-3 63
• Sound power level in Booster setting (dB(A) re 1 pW) in accordance with EN 60704-3 72
• Sound pressure level 1 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 39
• Sound pressure level 2 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 44
• Sound pressure level 3 (dB(A) re 20 µPa) in accordance with EN 60704-2-13 48
• Sound pressure level at Booster setting (dB(A) re 20 µPa) in accordance with EN 60704-2-13 57

Safety

• Safety shutdown •

Technical characteristics

• Case width in mm 532
• Height of the hood housing in mm 50
• Depth of the hood housing in mm 372
• Minimum distance above electric hobs in mm 450
• Minimum height above gas hob (max. 12.6 kW total power, burner ? 4.5 kW) in mm 650
• Net weight in kg 10.4
• Length of the electrical cable in m 1.5
• Standard plug installed •
• Total connected load in kW 0.23
• Voltage in V 230
• Fuse rating in A 10
• Frequency in Hz 50
• Number of phases 1

Installation instructions

• Outlet for connection to ventilation from above •
• Outlet for connecting to ventilation from top and rear •
• Outlet diameter for connection to ventilation in mm 150

Accessories provided with the appliance

• Non-return valve •
• Con@ctivity 2.0 wireless module for KM XKS 3000Z

Warranty: 25 months
