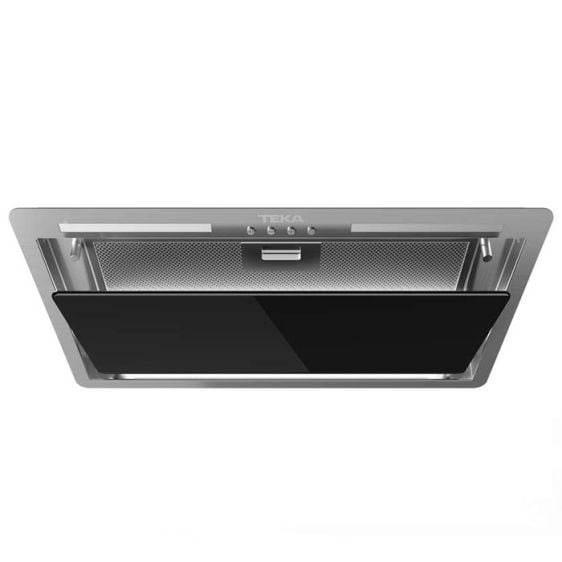

Built-in hood TEKA GFL 57651, 760 m³/h, 50 cm 113100005

Technical specifications:

• Hood for full integration in one plane with the cabinet
• Electronic control
• Timer for programming working time
• Power levels: 3 + 1 intensive
• 2 LED lighting strips (LED bar)
• Economical and highly efficient EcoPower engine with twin turbine
• Non-return valve
• Aluminum filter
• Maximum capacity: 760 m³/h***
• Noise level (LwA) at minimum level (1st): 54 dB***
• Outlet ø 150 mm
• Reducer ø 150 / ø 120 mm
• Possibility of using activated carbon filters
• Energy class: A+
• ***According to Delegated Regulation (EU) 65/2014

External dimensions

• Height (mm): 282
• Width (mm): 532
• Depth (mm): 284
• Weight (kg): 9.8

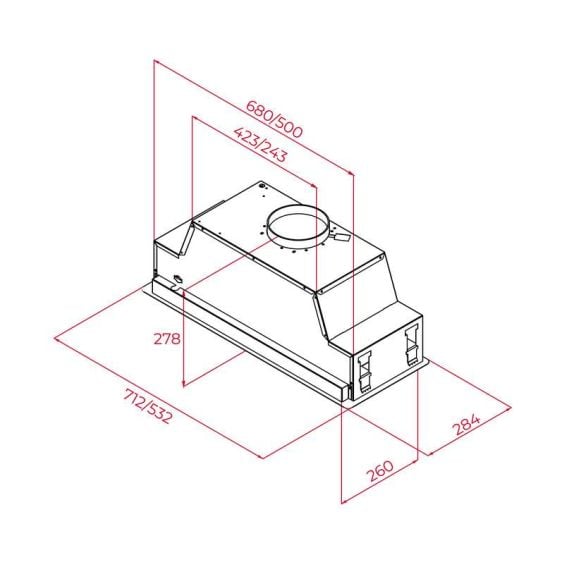

• See the installation diagram

Distinctive features

• Interior lighting (W): 6
• Plug: Shucko
• Power cord length (cm): 100
• Power supply (V): 220 - 240
• Frequency (Hz): 50
• Maximum power (W): 278
• Number of engines: 1
• Motor power (W): 270

Accessories

• Non-return valve: yes
• Reducer Ø 150 / 120 mm: yes
• 120/120mm outlet extension: No
• Activated carbon filter (optional): D4C
• Regenerative charcoal filter: No

Distinctive features

• Number of filters: 1
• Opening system: Manual
• Timer for programming working time: yes
• Number of power levels: 3 + 1

Warranty: 60 months
