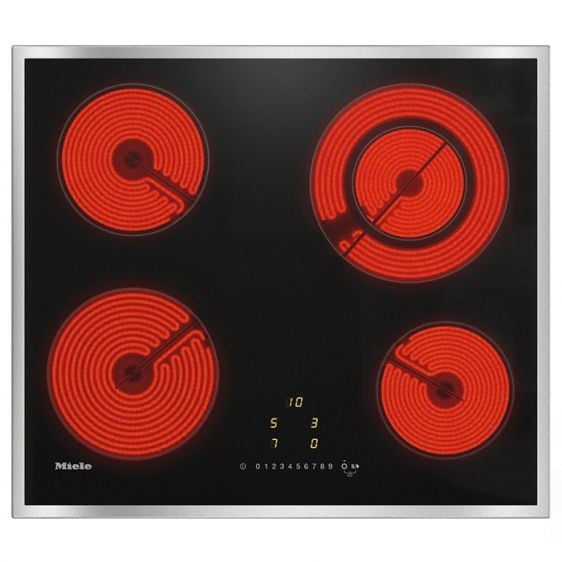

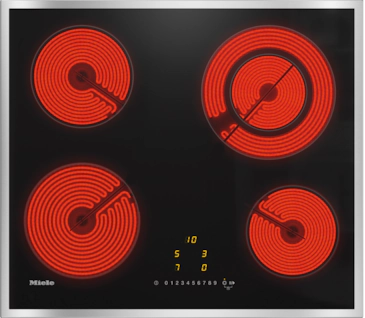

Built-in worktop MIELE KM 6520 FR

• Easy operation – EasySelect
• Attractive design – 574 wide with universal frame
• Particularly adaptable - 4 cooking zones, including 1 variable zone
• Convenient – automatic heating for each cooking zone
• Safe - three-stage residual heat indicator for each zone

Technical specifications:

Warm-up type

• Heating type Electric

Construction type

• Oven-independent •

Design
Elegant glass ceramic surface •
Universal stainless steel frame •
Heating zone data

• Number of hotplates 4

Heating zone 1

• Diameter in mm Ø 180
• Rated power in W 1800

Heating zone 2

• Diameter in mm Ø 160
• Rated power in W 1500

Heating zone 3

• Diameter in mm Ø 120/Ø 210
• Rated power in W 750/2200

Heating zone 4

• Diameter in mm Ø 145
• Rated power in W 1200

User convenience

• Call function •
• Stop & Go function •
• Reminder timer •
• Automatic shut-off for all hotplates •
• AutoBoost •
• Individual setting options (e.g. beep tones) •

Indicators

• Digital display for power level •

Efficiency and sustainability

• Use of residual heat •

Convenience of cleaning

• Easy-to-clean ceramic surface •

Safety

• Security slot •
• Lock function •
• Power-on lock •
• Error tracking •
• Overheating protection •
• Cookware protection •
• Residual heat indication •

Technical characteristics

• Dimensions in mm (width) 574
• Dimensions in mm (depth) 504
• Installation height with electrical installation box in mm 43
• Slot dimensions in mm (width) with surface mounting 560
• Cutout dimensions in mm (depth) with surface mounting 490
• Voltage in V 230
• Total included load in kW 6,700
• Weight in kg 8
• Frequency in Hz 50-60
• Cable length in m 1.4

Standard accessories

• Razor blade scraper •
• Connecting cable •

Warranty: 25 months
