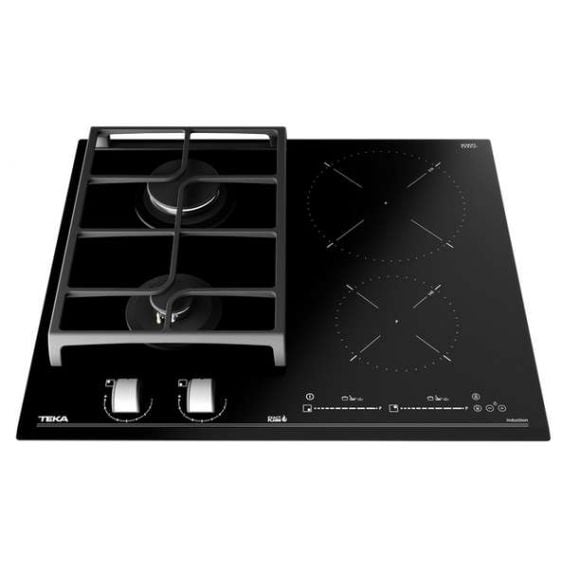

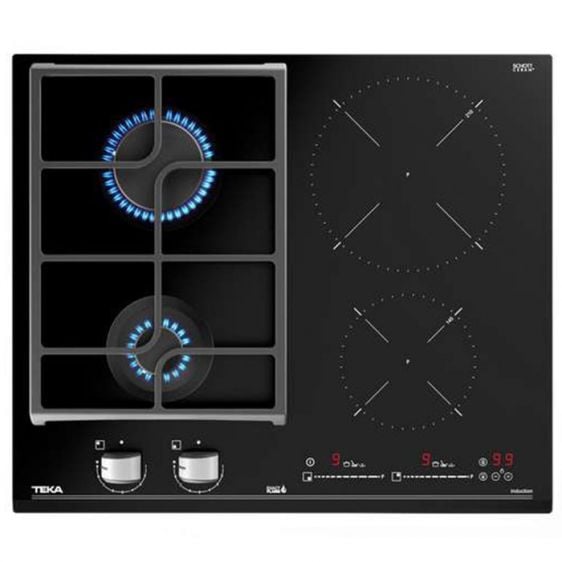

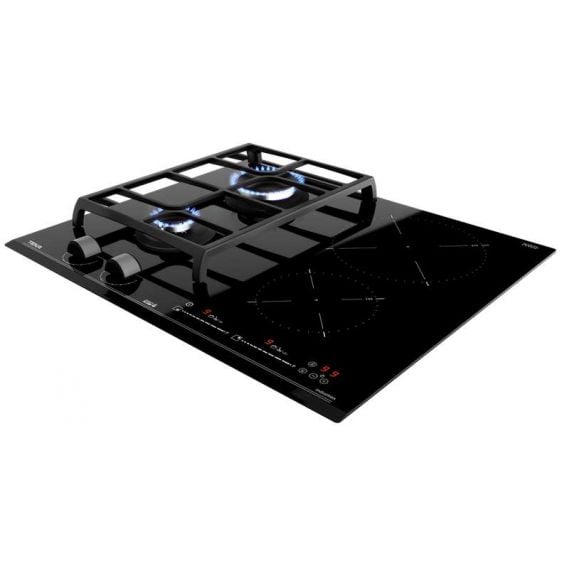

Built-in worktop TEKA JZC 64322

Technical specifications:

• 112570113
• Combined gas + induction hob on glass ceramic
• Mechanical control for gas burners
• Sensor control (Multislider type) for induction zones
• 4 cooking zones: 1 rapid burner 2.8 kW, 1 burner 1 kW, 1 induction zone (Ø 210 mm), 1 induction zone (Ø 145 mm)
• Automatic ignition of each burner
• Automatic gas flow cut-off when the flame goes out for each burner
• Detector for suitable cookware (for induction zones)
• Cookware size sensor (for induction zones)
• Digital programming of cooking time on induction zones (1-99 minutes)
• Special iCooking functions for induction zones:
• – “Slow cooking” (at a temperature close to the boiling point – simmering)
• – “Melt” (suitable for fondue, chocolate, caramel, etc.)
• – “Keeping dishes warm” (e.g. before serving)
• Safety control lock for induction zones (child protection)
• Device overheating protection
• Maximum power (gas): 4 kW
• Maximum electrical power: 3.5 kW
• Cast iron grid for cooking utensils on gas burners
• Gas type: LPG (propane/butane) or natural gas – specify the gas type before purchasing the appliance!

External dimensions

• Height (mm): 98
• Width (mm): 600
• Depth (mm): 510
• Weight (kg): 12.8
• See the installation diagram

Mounting dimensions

• Installation width (mm): 560
• Installation depth (mm): 490
• Installation height (mm): 49

Distinctive features

• Gas type: Natural gas
• Maximum power - gas (W): 3800
• Automatic ignition of burners: yes
• Number of electric power selection levels: 9
• "Keeping warm dishes" function: yes
• Power management function: yes

Electrical connection

• Maximum rated power (W): 3500
• Frequency (Hz): 50/60
• Power supply (V): 220-240
• Power cord length (cm): 110
• Maximum rated power - electric hob (W): 3500

Cooking zones

• Number of cooking zones: 4
• Energy consumption of the entire hob (Wh/Kg): 180.4

Security systems

• Automatic gas flow cut-off: yes
• Residual heat indicators (electric): yes
• Automatic safety shut-off (electric): yes
• Control lock against unintentional change of settings: yes

Profile

• Surface profile: Beveled edge (facet) at the front
• Easy installation system: yes

Accessories

• Grid type: Full Grid
• Wok attachment: NO
• Connecting strip: Optional
• Cast iron grates on the burners: yes

Warranty: 60 months
