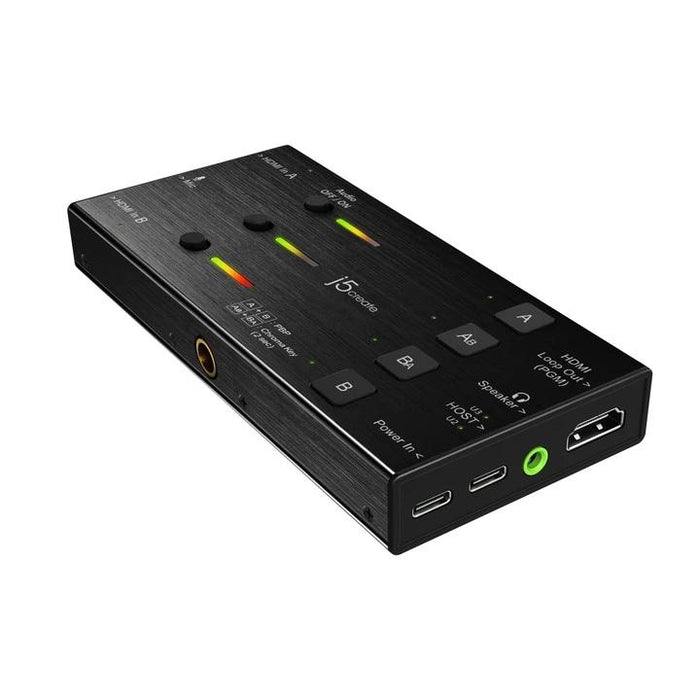

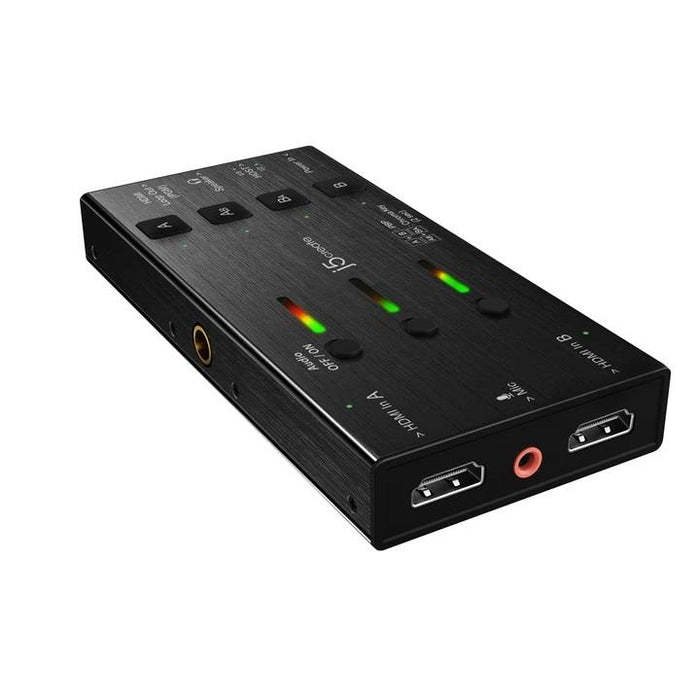

Capture j5create JVA06 Dual HDMI™ video capture

The JVA06 Dual HDMI is a universal USB video capture device that works with all major platforms.
It allows you to simultaneously capture uncompressed 1080p video from 2 HDMI sources.
With an audio connection via HDMI or analog 3.5mm ports, you can record audio
directly from game consoles, computers or output sound to speakers/mixers.
Easily adjust display settings with the built-in buttons (6 screen modes, including
PIP-Picture in Picture and PBP-Picture by Picture)

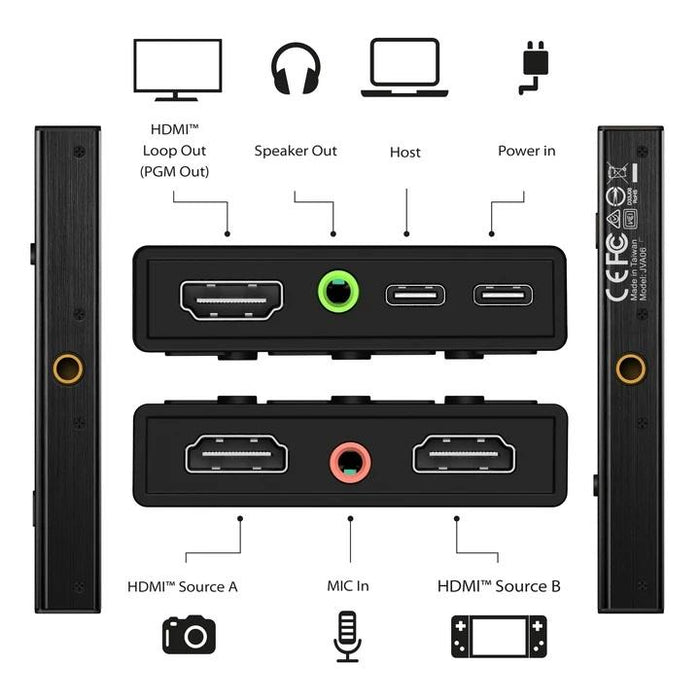

• 2 x HDMI capture inputs (2 channels)
• High-performance Full HD video and audio recording/playback via USB-C 3.1 Gen1
• Uncompressed video - 1080p 60Hz over HDMI 1.3a
• Supports 1080p 60 Hz HDMI - (PGM output)
• 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)

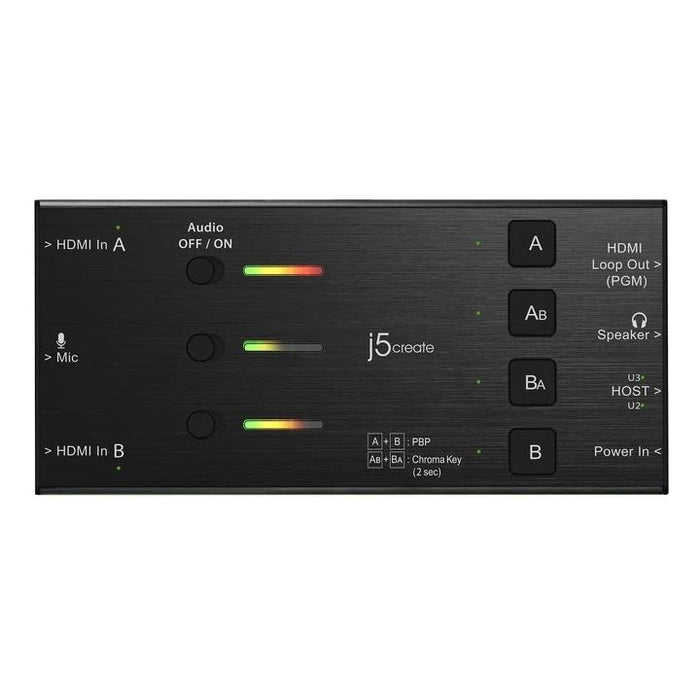

• 4 buttons for quick change of display settings
• Automatic memory of previous settings
• Audio connection via HDMI or external sound via 3.5mm microphone and audio jack
• 3 separate on/off switches for audio mix
• 3 volume indicators

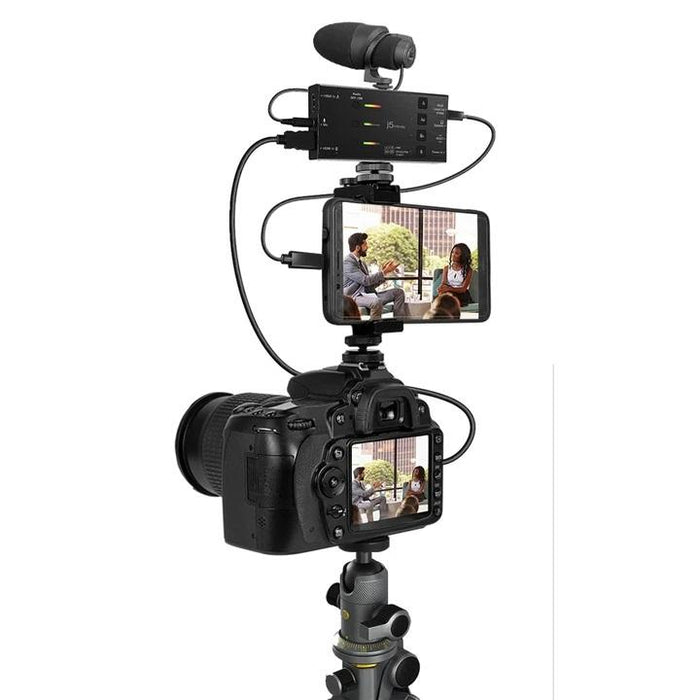

• Easy attachment with 2 DSLR hot shoes
• Supports USB-C 3.0 PD - 60W
• UVC standard, plug & play
• LED indicator:
- HDMI IN
- USB connection
- Sound
• Image overlay: Press Chroma Keys "AB + BA" for 2 seconds,
to enable/disable the overlay of images from HDMI source A and HDMI source B
