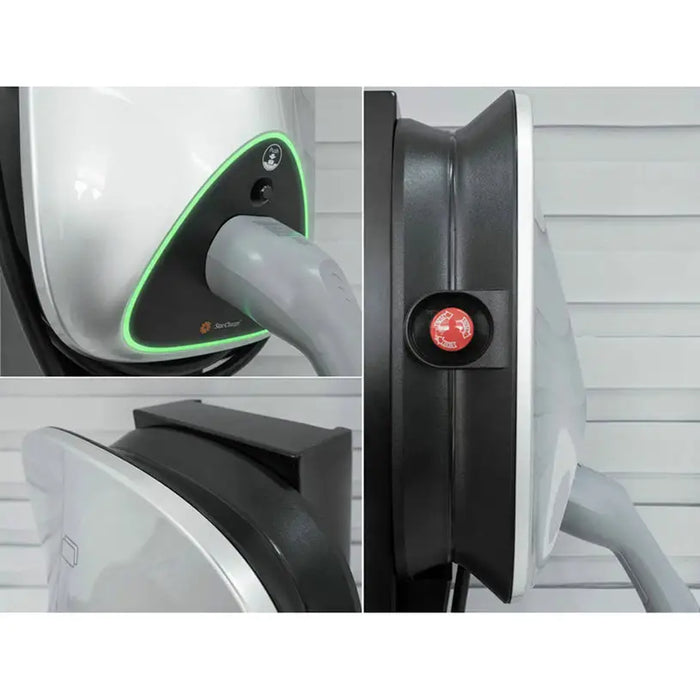

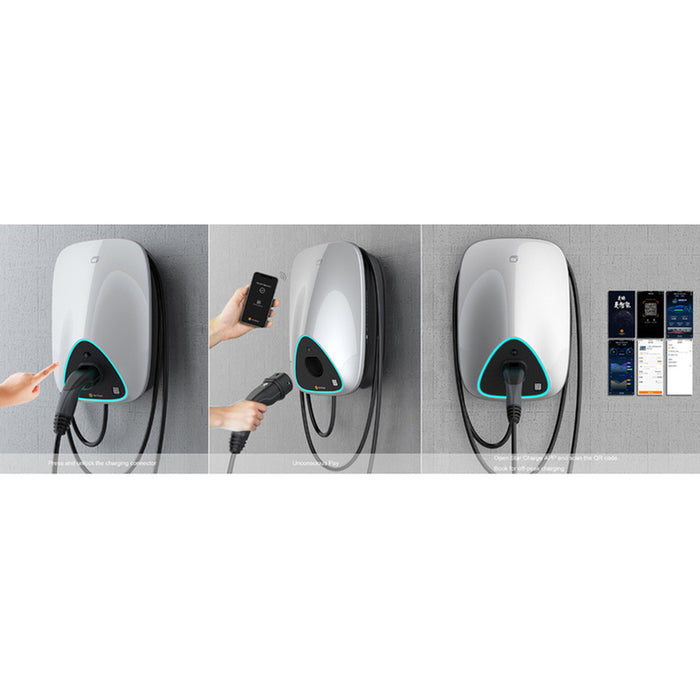

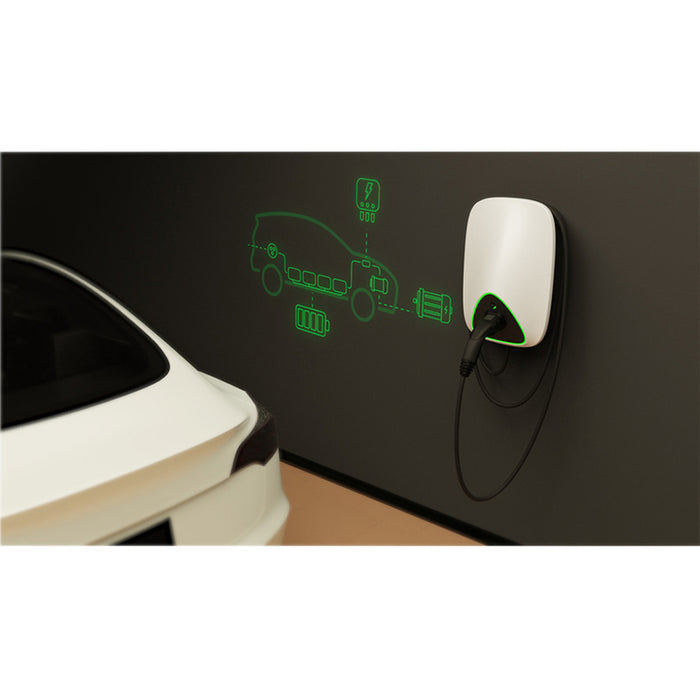

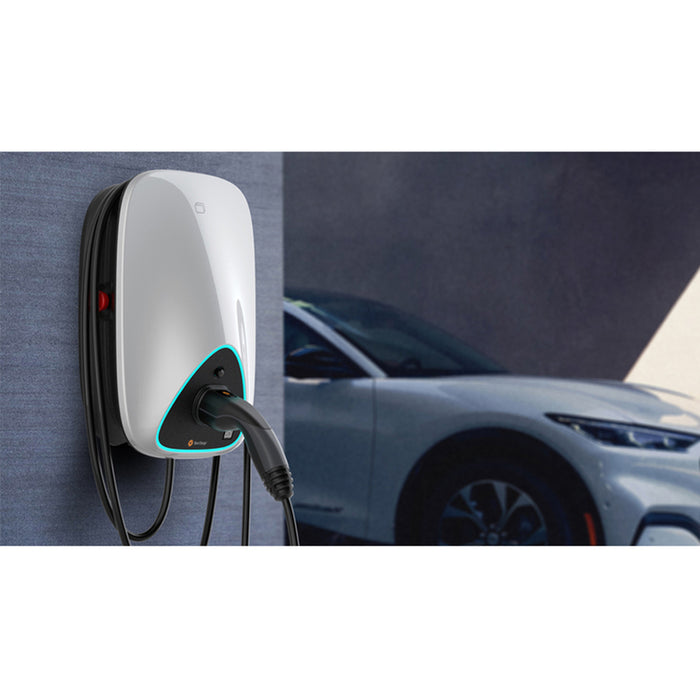

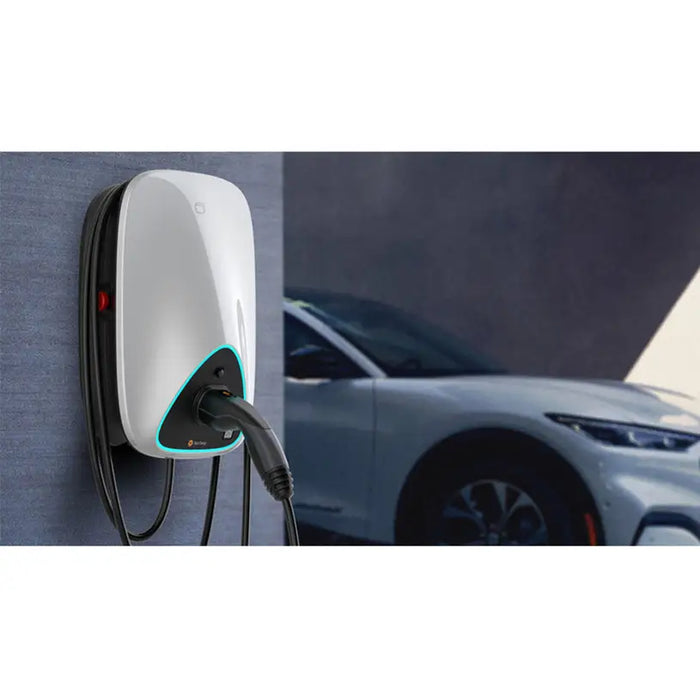

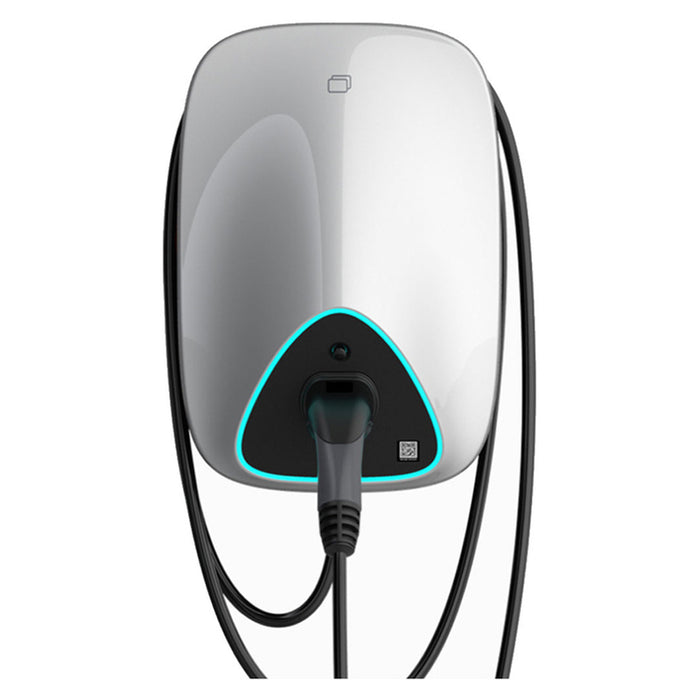

CAR CHARGING STATION 22KW WITH CABLE TYPE 2 STARCHARGE AURORA 22kW

Original price €1.269,90 - Original price €1.269,90
Original price
€1.269,90
€1.269,90 - €1.269,90
Current price €1.269,90
SKU DGT0191021
Ships within 6 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Aurora Station Star Charge - the future of electric vehicle charging

  • Compatible with a wide range of EV models, so you can charge your vehicle no matter what make or model you drive.
  • Excellent industrial design brings a pleasant user experience.
  • The station can be connected to operator software via the OCPP 1.6 protocol.
  • Supports 4G, Wi-Fi, Ethernet, RS485.
  • Charging mode: Mode 3 (IEC 61851-1)
  • Input/output power and current: 22kW/32A max.
  • Nominal input/output voltage: 230Vac±10%, Single phase, 50/60Hz, L+N+PE
  • Network TN-S, TN-C, TN-CS, TT
  • Connection to the electric vehicle: Configuration 01: 1 x IEC 62196-2 Type 2 Coupled Plug (Case C) Configuration 02: 1 x IEC 62196-2 Type 2 Socket (Case B)
  • Residual current protection: Type A RCD + DC 6mA
  • Protection overvoltage, undervoltage, residual current, short circuit, overheating, grounding
  • IP rating: IP54@Case B, IP55@Case C
  • IK rating: IK10
  • Cooling: Natural cooling
  • Installation:Wall mount
  • Practical dimensions and 5-meter cable length
  • Dimensions (WxDxH) 28.2x40.9x14.8cm
