Car speakers HERTZ CX 690 15 X 23 CM, 100 W

Car speakers HERTZ CX 690 15 X 23 CM, 100 W

by Hertz
€146,90 - €146,90
€146,90
€146,90 - €146,90
€146,90
SKU DGT0299664
Ships within 8 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Car speakers

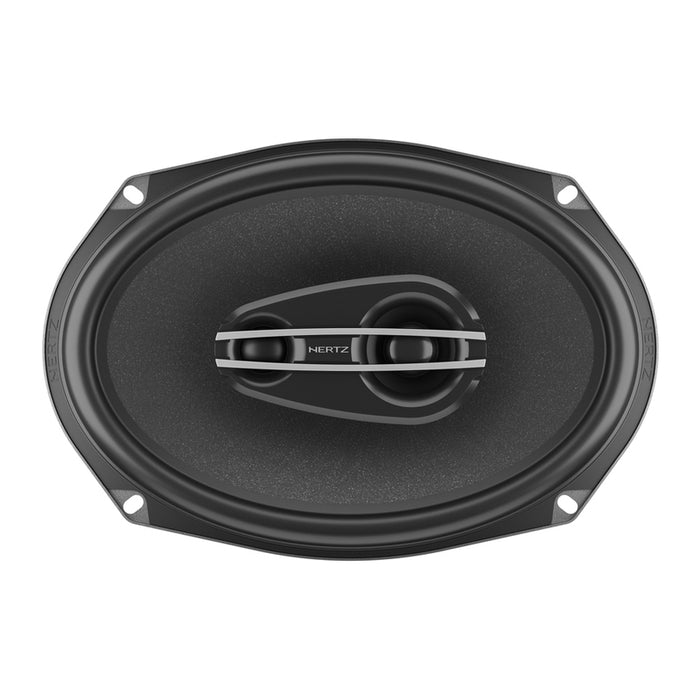

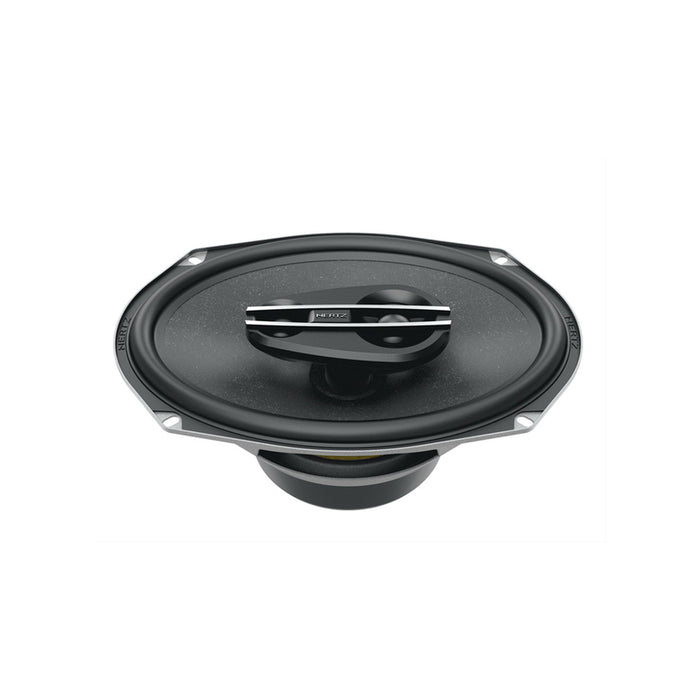

Car speakers HERTZ CX 690, 15 x 23 cm, 100 W, 4 Ohm

Three-way elliptical design with a super tweeter, designed for horizontal mounting in the rear shelf

HERTZ CX 690 are coaxial car speakers from the Cento series with a 15 x 23 cm elliptical diffuser and a frequency range from 40 Hz to 23 kHz. The three-way layout combines a woofer, a dome tweeter 40 mm and a super tweeter 20 mm. The impedance is 4 Ohm and the rated power is 100 W.

Three-way layout with a super tweeter for horizontal mounting

The 20 mm dome handles the highest frequencies, which are usually lost on the way to the listener when mounted in the rear shelf. The geometry of the front plate is calculated to keep a linear response even when the speaker is not aimed at the ears.

SPP-M diffuser made of semi-pressed paper with mica

The mica additive balances low weight with internal damping, which keeps the midrange clean at high sound power. The wide rubber suspension ring allows long cone travel and stable bass.

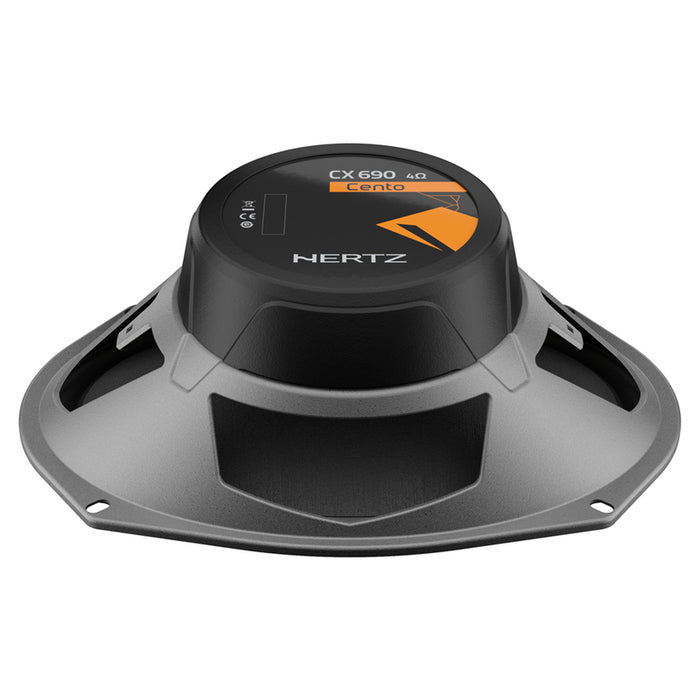

Ferrite magnet with high flux density

The pole plates are made of low-carbon steel and limit distortion when driven by an amplifier. The basket has a metal coating and a rubber cover over the magnet that damps parasitic vibrations.

ABS grille with metal mesh included

The package includes a protective grille made of impact-resistant ABS with a metal coating and metal mesh. It protects the diffuser from cargo and shoes when mounted in the rear shelf.

Specifications

Basic

HERTZBrand
CX 690 (Cento series)Model
Coaxial car speakers, three-wayType
15 x 23 cm (6 x 9")Size
302788Article number

Power and sound

100 WRated power
300 WMaximum power
4 OhmImpedance
40 Hz - 23 kHzFrequency range
93.5 dBSensitivity (SPL)

Components

40 mm, PEITweeter dome
30 mmWoofer voice coil
28 mmTweeter voice coil

Materials

High flux density ferrite, 100 x 32 x 15 mmWoofer magnet
Neodymium, 19 x 3 mmTweeter magnet

Dimensions and weight

238 x 224 mmExternal dimensions (A x B)
78.5 mmMounting depth
5.5 mmMaximum cone excursion (Xmech)
1.55 kgWeight of one speaker

Included

Protective ABS grilles with metal meshIncluded

Warranty

24 monthsWarranty

Basic

8018823126687EAN
