| Marketing Description |

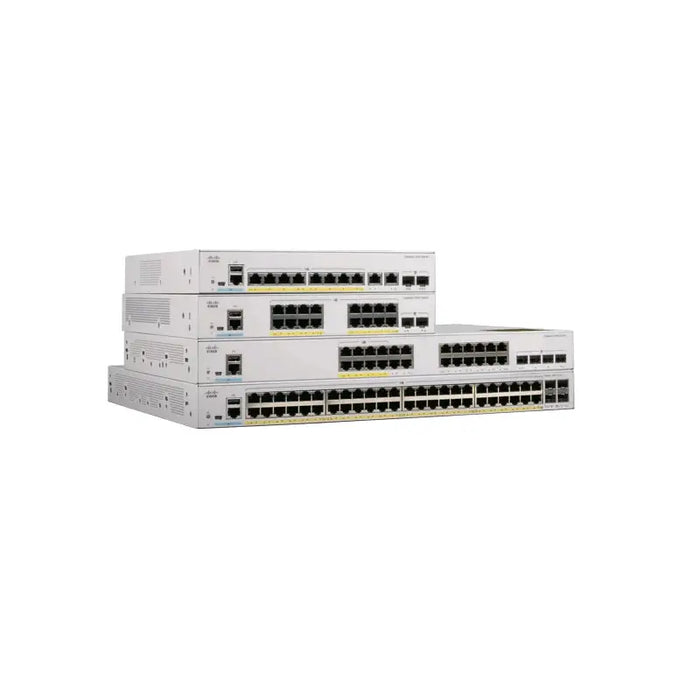

| Cisco Catalyst 1000-24T-4X-L Network Switch is a fixed, manageable Gigabit Ethernet Layer 2 enterprise-class switch designed for small businesses and branches. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It runs Cisco IOS software and features a CLI (command-line interface) as well as an intuitive web user interface. |
| Product Features |
-
HARDWARE CONFIGURATION
24 10/100/1000 Gigabit Ethernet (GbE) data ports, 4 SFP uplink ports
-
MANAGEMENT
Manage the switch via Cisco IOS CLI (command-line interface) and/or intuitive web user interface. Centralised monitoring and configuration of up to 8 switches via a single IP address or using a third-party network management tool
-
SECURITY
Enterprise-class security that natively supports IPv4/IPv6 FHS security features such as port security, DHCP snooping and dynamic ARP inspection, which can be easily configured with a single "Auto-Secure" command, along with 802.1x for all connected devices
-
Enterprise-class hardware
Counterfeit-resistant switch, designed with Cisco's best trusted solution technologies such as HW anchored secure boot and Trust anchor Module, to ensure you receive an authentic and secure product
-
RAPID THINKING
Limited lifetime warranty
|
| General |
| Device Type |
Switch - 24 ports - Managed |
| Chassis Type |
Rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 4 x 10 Gigabit SFP (uplink) |
| Performance |
Forwarding bandwidth: 64 Gbps Switching capacity: 128 Gbps Forwarding rate (64-byte L3 packets): 41.67 Mpps |
| Capacity |
Unicast MAC addresses: 15360 IPv4 unicast direct routes: IPv4 unicast indirect routes: 542 IPv4 unicast indirect routes: 256 IPv6 unicast direct routes: IPv6 unicast indirect routes: 414 IPv6 unicast indirect routes: 128 IPv4 routes (static): 16 IPv6 routes (static): 16 IPv4 routes (multicast): 1024 IPv6 groups (Multicast): 1024 IPv4/MAC security ACEs: 600 IPv6 security ACEs: 600 Active VLANs: 256 VLAN IDs: 4094 SSTP instances: 64 SPAN sessions: 4 MTU-L3 packet: 9198 bytes |
| Jumbo Frame Support |
10240 bytes |
| Routing Protocol |
IGMP, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS , RADIUS |
| Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS, Secure Shell v.2 (SSH2) |
| Features |
BOOTP support, ARP support, auto MDI/MDI-X, intrusion detection system (IDS), broadcast storm control, multicast storm control, unicast storm control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, access control list (ACL) support, quality of service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC address notification, Energy Efficient Ethernet, management information base (MIB), class of service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX |
| Processor |
X ARM: 800 MHz |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Status indicators |
Status |
| Expansion / Connectivity |
| Interfaces |
24 x 1000Base-T RJ-45 4 x 10GBase-X SFP uplink 1 x management RJ-45 1 x mini-USB Type B 1 x USB Type A |
| Power |
| Power supply |
Internal power supply |
| Installed quantity |
1 |
| Required voltage |
AC 120/230 V (50 - 60 Hz) |
| Miscellaneous |
| MTBF |
2,026,793 hours |
| Compliant standards |
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A |
| Dimensions and weight |
| Width |
44.5 cm |
| Depth |
24 cm |
| Height |
4.39 cm |
| Weight |
2.78 kg |
| Manufacturer's warranty |
| Service and support |
Limited warranty - replacement - lifetime - response time: next business day Technical support - consultations - 90 days |
| Environmental parameters |
| Minimum operating temperature |
-5 °C |
| Maximum operating temperature |
50 °C |
| Operating humidity range |
5 - 90 % |
| Minimum storage temperature |
-25 °C |
| Maximum storage temperature |
70 °C |
| Storage humidity range |
5 - 95% |
