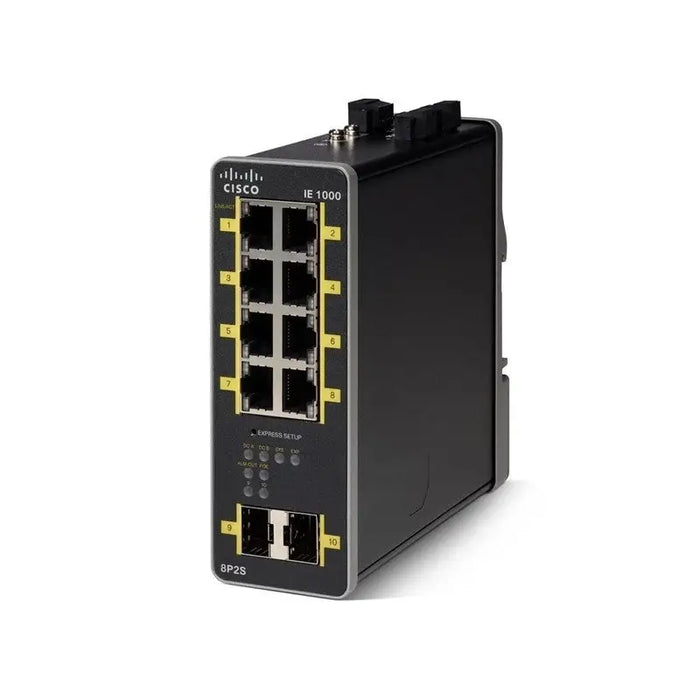

CISCO IE-1000 GUI based L2 PoE switch 2 GE SFP 8 FE copper ports

SKU DGT0068405

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description


  • Fans: -
  • MAC addresses: Activates IE1K
  • Power Over Ethernet (PoE): 8x PoE+, PoE budget: 180W, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
  • Routing: -
  • Stackability: -
  • Uplink ports: 2x SFP (100Base-FX MMF (2 km)—awaiting clarification from an engineer)
  • VLAN (number, standards): ICMP Vlans, IEEE 802.1q VLAN
  • Warranty: 60 months
  • Power supply: External (Input voltage: 48-54 V)
  • Routing/switching capacity, Gbps: Maximum forwarding throughput 2.8 Gbps; Maximum switching throughput 5.6 Gbps
  • Network standards: IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s Multiple SpanningTrees; 802.1w Rapid SpanningTree; 802.1AB LLDP; 802.3ad (LACP; 802.3ah only SMF/MMF, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z; RFC
  • Total number of ports: 10
  • Mounting option: DIN rail
  • Base ports, type: 8x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
  • Memory (Flash, RAM): DRAM: 128 MB DDR2 without ECC, Built-in flash memory: 160 MB
  • Industrial automation protocols: Ethernet/IP (CIP)
  • Operating temperature: -40 C to +70 C (operation in a ventilated housing), -40 C to +60 C (operation in a sealed housing), -34 C to +75 C (operation in a housing with fan or blower)
  • Dimensions (W, D, H), mm: 45.7 x 134 x 127 mm
  • Free (10GB) slots: -
  • Security: Secure access; port-security; TACACS+ and RADIUS AAA client: security protocols for network access control; IEEE 802.1x security
  • Switch, type: Fixed ports
  • Management: Web GUI interface, as well as diagnostic and analysis options via Simple Network Management Protocol (SNMP) and syslog - MIB-II; Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP) IP addressing and management via an easy web-based GUI
