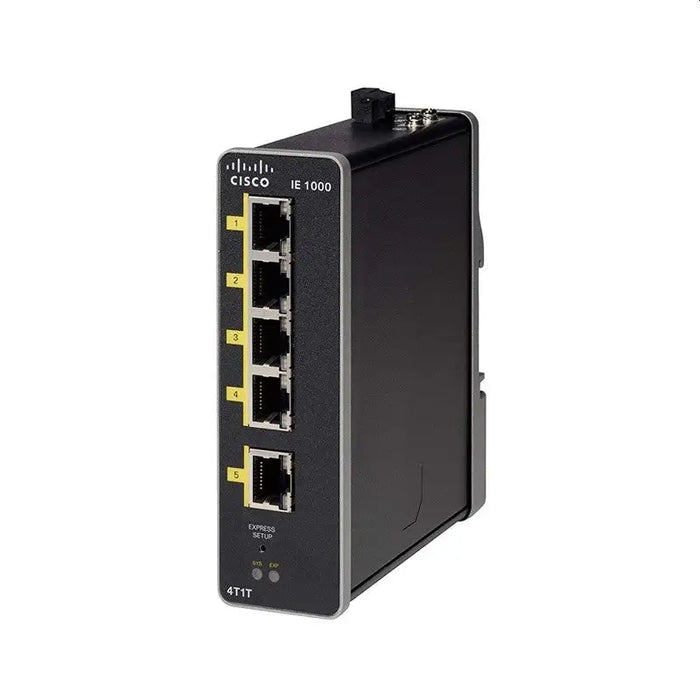

CISCO IE-1000-4T1T-LM Cisco IE-1000 GUI Based L2 switch, 5 FE copper ports

SKU DGT0068402

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description


  • Fans: -
  • MAC addresses: Activates IE1K
  • Power Over Ethernet (PoE): -
  • Routing: -
  • Stackable: -
  • Uplink ports: 1x 10/100/1000 BASE-T copper port (RJ-45 connectors, 4-pair Category 5 UTP cabling)
  • VLAN (number, standards): ICMP Vlans, IEEE 802.1q VLAN
  • Warranty: 60 months
  • Power supply: External (Input supply voltage: 12-24V)
  • Routing/switching capacity, Gbps: Maximum forwarding throughput 2.8 Gbps; Maximum switching throughput 5.6 Gbps
  • Network standards: IEEE: 802.1D MAC bridges, STP; 802.1p Layer 2 COS prioritization; 802.1s Multiple SpanningTrees; 802.1w Rapid SpanningTree; 802.1AB LLDP; 802.3ad (LACP; 802.3ah SMF/MMF only, 802.3x, 802.3, 802.3u, 802.3ab, 802.3z; RFC
  • Total number of ports: 5
  • Mounting option: DIN rail
  • Basic ports, type: 4x FE (10/100/1000 BASE-T copper ports (RJ-45 connectors, 4-pair Category 5 UTP cabling))
  • Memory (Flash, RAM): DRAM: 128 MB DDR2 non-ECC, Built-in flash memory: 160 MB
  • Industrial automation protocols: Ethernet/IP (CIP)
  • Operating temperature: -20 C to 70 C (operation in a ventilated enclosure), -20 C to 60 C (operation in a sealed enclosure), -16 C to 75 C (operation in an enclosure with fan or blower)
  • Dimensions (W, D, H), mm: 38 x 115 x 127 mm
  • Free (10GB) slots: -
  • Security: Secure access; port security; TACACS+ and RADIUS AAA client: Security protocols for network access control; IEEE 802.1x security
  • Switch, type: Fixed ports
  • Management: Web GUI interface, as well as diagnostic and analysis options via Simple Network Management Protocol (SNMP) and syslog - MIB-II; Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP) IP addressing and easy management via a web-based GUI
