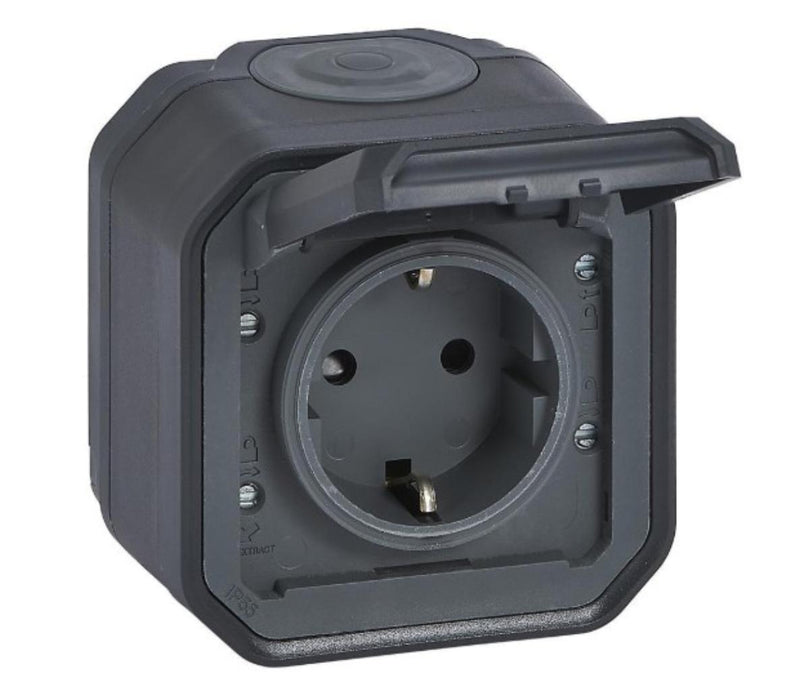

CONTACT 2P+E 16A IP55 ANTHRACITE PLEXO NEW

Offering robust protection with IP55 rating, PLEXO55 is ideal for harsh conditions. It is waterproof and dustproof, easy to install, and has a modern design that ensures durability and reliability both indoors and outdoors.

• Contact model CEE 7/3 (type F)
• Simultaneous switching of neutral conductor: No
• Number of active contacts (round): 2
• Number of active contacts (flat): 0
• Number of active contacts (square): 0
• With additional light signal: No
• Number of USB-A ports: 0
• Number of USB-C ports: 0
• Number of devices: 1
• Number of modules (modular system): 2
• Number of switchable contacts: 0
• Number of phases: 1
• Imprint/indication: Degree of protection (IP)
• Connection type: Automatic terminal
• With hinged cover: Yes
• With enhanced contact protection: Yes
• Label/information surface: No
• Colour: Anthracite
• Metallic colour: No
• Transparent: No
• Lockable: No
• Extraction mechanism: No
• Insulated installation: No
• With functional lighting: No
• With orientation lighting: No
• Surge protection: No
• Short-circuit current protection: No
• With miniature fuse: No
• Special power supply: No special power supply
• Mounting method: Surface mounting
• Fastening type: Screw mounting
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
• Surface protection: Untreated
• Surface coating: Matt
• Antimicrobial treatment: No
• With mains pass-through function: No
• With on/off switch: No
• Rotating central insert: No
• Rated current: 16 A
• Rated voltage: 250 V
• Frequency: 50-60 Hz
• IP class: IP55
• Degree of protection (IP), connected plug: IP44
• Device width: 82 mm
• Device height: 85 mm
• Device depth: 62 mm
• Impact resistance: IK08
• Compatible with Apple HomeKit: No
• Compatible with Amazon Alexa: No
• Compatible with Google Assistant: No
• IFTTT support available: No
• With Wi-Fi signal repeater: No
• With built-in Bluetooth speaker: No
• For heavy-duty conditions according to VDE: Yes
• Working / setting temperature: -10-40 °C
• Storage temperature: -25-60 °C
• Voltage type: AC
• Terminal marking indicator: Yes
• Pre-wired: No
• Terminal capacity: 1.5-2.5 mm²
• Connecting cable type: Flexible or solid
• Cable cross-section: 1.5-2.5 mm²
• Wall mounting pipe diameter: 16-25 mm
• Assembly: Base element with full cover plate
