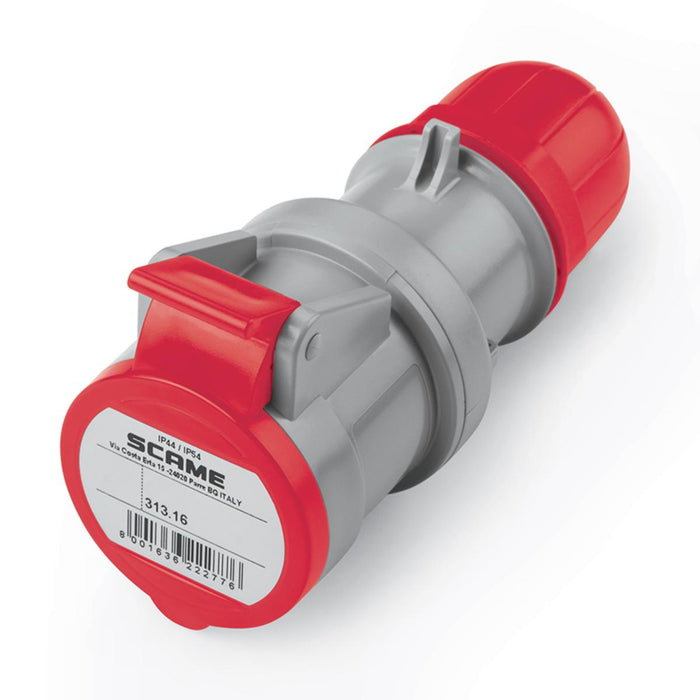

CONTACT 3P+N+E 16A IP54 OPTIMA SCAME

Three-phase Euro socket 16A, 3P+N+E, IP54, SCAME Optima 313.1647
The OPTIMA series is a complete range of industrial portable sockets (Euro standard) from 16A to 125A. Robust and safe industrial mobile sockets, thanks to the use of a high-performance technopolymer and an external cable gland with a cable clamp. The portable sockets of the OPTIMA series are available with different types of terminals to always ensure the best connection depending on the type and requirements of use and wiring. The housing opens quickly thanks to the steel spring mechanism. The products of the OPTIMA series are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: mobile / portable
• poles: 3P + N + E
• hour position: 6h
• rated current: 16A
• rated voltage: 346 – 415V
• operating frequency: 50Hz, 60Hz
• colour: RED
• degree of protection: IP44 / IP54 (resistant to water splashes)
• IK impact protection degree at 20°C: IK 08
• flame resistance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: gland (secure cable grip)
