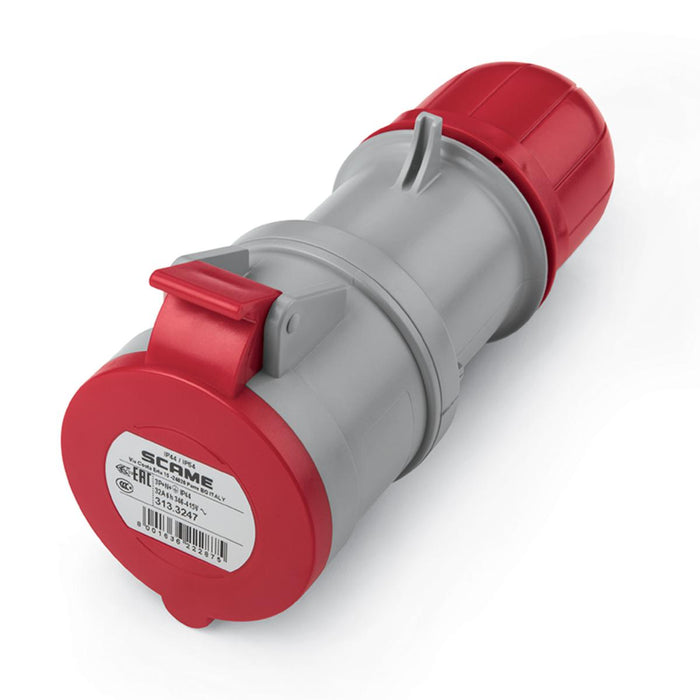

CONTACT 3P+N+E 32A IP54 OPTIMA SCAME

Three-phase Euro plug 32A, 3P+N+E, IP54, SCAME Optima 313.3247
The OPTIMA series is a full range of industrial portable connectors (Euro standard) from 16A to 125A. Sturdy and safe industrial mobile connectors, thanks to the use of a high-performance technopolymer and an external cable gland with a cable clamp. Portable connectors from the OPTIMA series are available with different types of terminals to always guarantee the best connection depending on the type and requirements of use and wiring. Quick opening of the housing is thanks to a steel spring mechanism. Products of the OPTIMA series are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: mobile / portable
• poles: 3P + N + E
• hour position: 6h
• rated current: 32A
• rated voltage: 346 – 415V
• operating frequency: 50Hz, 60Hz
• colour: RED
• degree of protection: IP44 / IP54 (resistant to water splashes)
• IK protection rating at 20°C: IK 08
• flame resistance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: gland (secure cable grip)
