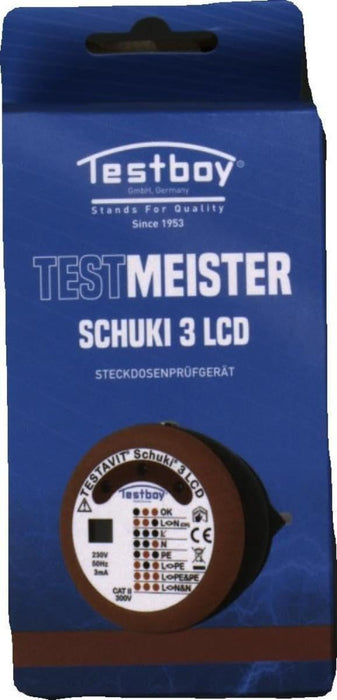

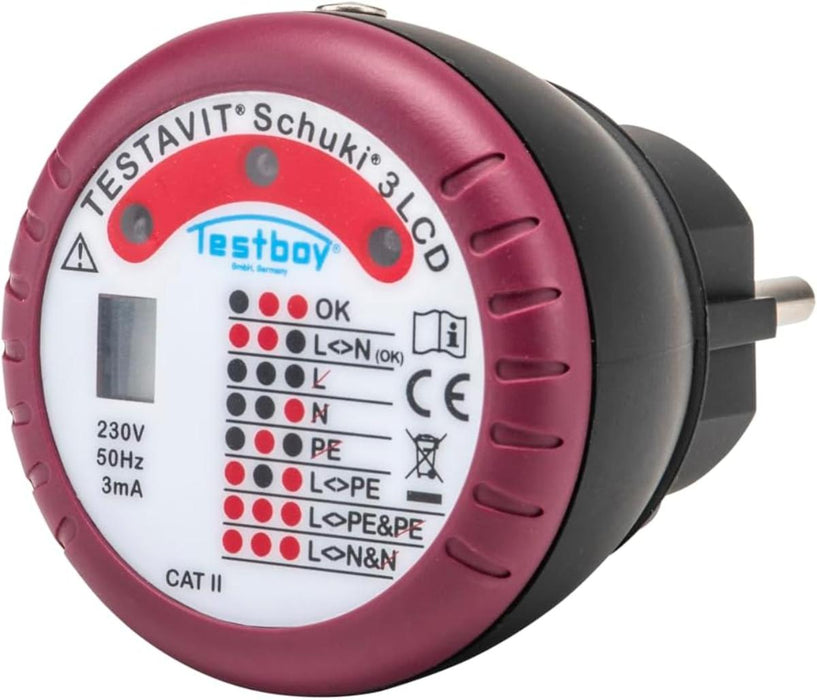

CONTACT TESTER TESTBOY SCHUKI 3 LCD

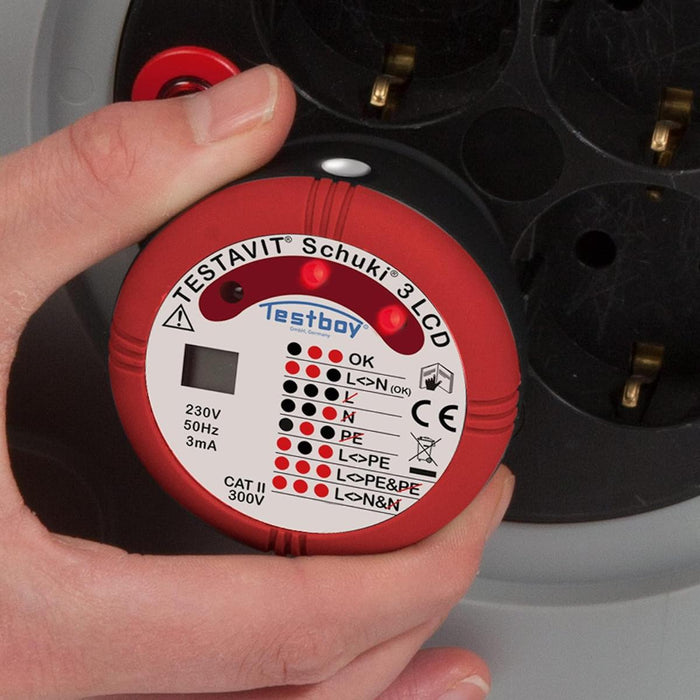

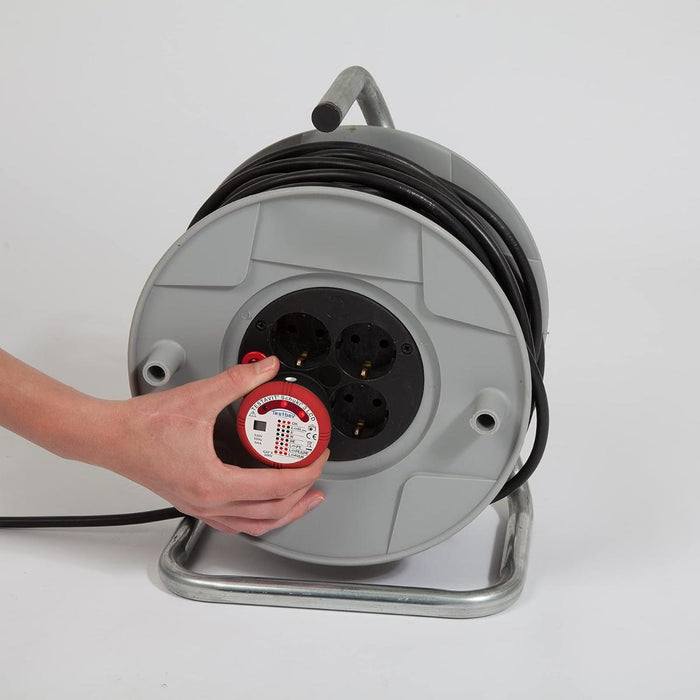

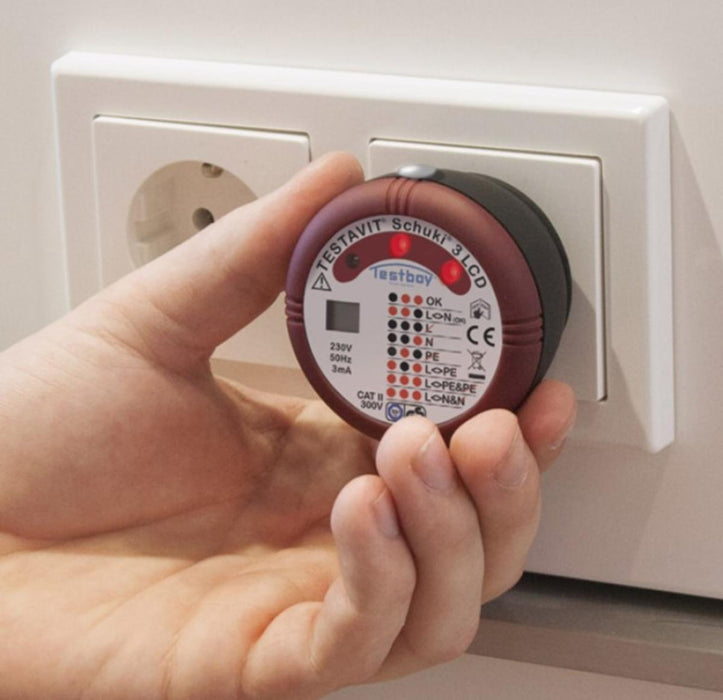

Using the new Testavit Schuki 3 LCD, specialists easily check whether sockets, cable reels or connecting cables are correctly wired in 230 V installations. Thanks to three LEDs, the connection status can be determined quickly and clearly. In addition, touching with a finger can be used to test whether an impermissibly high contact voltage is present at the protective earth connection. Also, using the Testavit Schuki 3 LCD, a 30 mA FI circuit breaker (RCD) can be triggered by a button.
How you benefit
Fast and safe installation testing
Finger contact for checking the protective earth connection
FI test (Schuki 1 LCD)
FI test (30 mA at 230 V AC)

Technical data TESTAVIT SCHUKI 3 LCD

• Display: Optical, LCD and LED
• Operating voltage: 230 V, 50 Hz
• RCD tripping: No
• Current error: No
• Protection rating: IP 40
• Overvoltage category: CAT II 300 V
• Standard: IEC/EN 61010-1 (DIN VDE 0411)
• Operating temperature: 0–50 °C
• Dimensions: 60 × 60 mm
• Weight: 54 g
• Scope of delivery: operating instructions included
