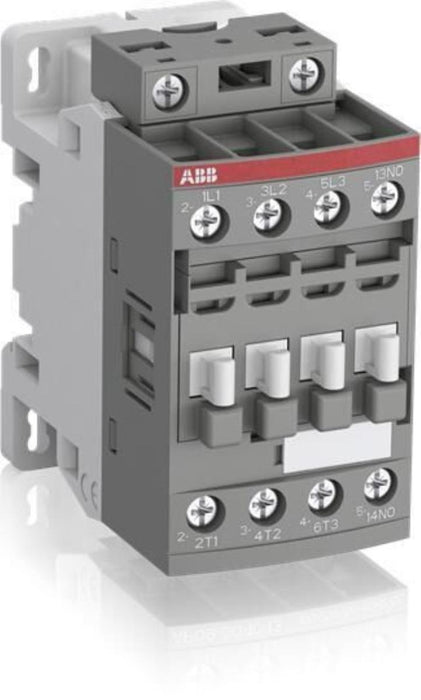

The AF26-30-00 3P 11KW ABB contactor effectively controls large fluctuations in the control voltage, provides protection against current surges and helps reduce energy consumption. It is compatible with a variety of accessories and additional modules from the ABB range, which makes it extremely flexible for different applications.
Specifications:
Net product width: 45 mm
Net product depth / length: 86 mm
Net product height: 86 mm
Net product weight: 0.31 kg
Technical data
Number of main contacts NO: 3
Number of main contacts NC: 0
Number of auxiliary contacts NO: 0
Number of auxiliary contacts NC: 0
Number of poles: 3P
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1
Rated operational voltage: Main circuit 690 V
Rated frequency (f):
Control circuit 50 / 60 Hz
Main circuit 50 / 60 Hz
Conventional thermal current in free air (Ith): according to IEC 60947-4-1, open contactors Θ = 40 °C 50 A
Rated operational current AC-1 (Ie):
(690 V) 40 °C 45 A
(690 V) 60 °C 40 A
(690 V) 70 °C 32 A
Rated operational current AC-3 (Ie):
(415 V) 60 °C 26 A
(440 V) 60 °C 26 A
(500 V) 60 °C 23 A
(690 V) 60 °C 17 A
(380 / 400 V) 60 °C 26 A
(220 / 230 / 240 V) 60 °C 26 A
Rated operational current AC-3e (Ie):
(415 V) 60 °C 26 A
(440 V) 60 °C 26 A
(500 V) 60 °C 23 A
(690 V) 60 °C 17 A
(380 / 400 V) 60 °C 26 A
(220 / 230 / 240 V) 60 °C 26 A
Rated operational current DC-1 (Ie):
(110 V) 2 poles in series, 40 °C 45 A
(110 V) 2 poles in series, 60 °C 40 A
(110 V) 2 poles in series, 70 °C 32 A
(110 V) 3 poles in series, 40 °C 45 A
(110 V) 3 poles in series, 60 °C 40 A
(110 V) 3 poles in series, 70 °C 32 A
(220 V) 3 poles in series, 40 °C 45 A
(220 V) 3 poles in series, 60 °C 40 A
(220 V) 3 poles in series, 70 °C 32 A
(72 V) 1-pole, 40 °C 45 A
Rated operational current DC-3 (Ie):
(110 V) 2 poles in series, 40 °C 45 A
(110 V) 2 poles in series, 60 °C 40 A
(110 V) 2 poles in series, 70 °C 32 A
(110 V) 3 poles in series, 40 °C 45 A
(110 V) 3 poles in series, 60 °C 40 A
(110 V) 3 poles in series, 70 °C 32 A
(220 V) 3 poles in series, 40 °C 45 A
(220 V) 3 poles in series, 60 °C 40 A
(220 V) 3 poles in series, 70 °C 32 A
(72 V) 1-pole, 40 °C 45 A
Rated operational current DC-5 (Ie):
(110 V) 2 poles in series, 40 °C 45 A
(110 V) 2 poles in series, 60 °C 40 A
(110 V) 2 poles in series, 70 °C 32 A
(110 V) 3 poles in series, 40 °C 45 A
(110 V) 3 poles in series, 60 °C 40 A
(110 V) 3 poles in series, 70 °C 32 A
(220 V) 3 poles in series, 40 °C 20 A
(220 V) 3 poles in series, 60 °C 20 A
(220 V) 3 poles in series, 70 °C 20 A
(72 V) 1-pole, 40 °C 20 A
Rated operational power AC-3 (Pe):
(400 V) 11 kW
(415 V) 11 kW
(440 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
(380 / 400 V) 11 kW
(220 / 230 / 240 V) 6.5 kW
Rated operational power AC-3e (Pe):
(415 V) 11 kW
(440 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
(380 / 400 V) 11 kW
(220 / 230 / 240 V) 6.5 kW
Rated short-time withstand current (Icw):
at 40 °C ambient temperature, in free air, from cold state 10 s 350 A
at 40 °C ambient temperature, in free air, from cold state 15 min 50 A
at 40 °C ambient temperature, in free air, from cold state 1 min 150 A
at 40 °C ambient temperature, in free air, from cold state 1 s 700 A
at 40 °C ambient temperature, in free air, from cold state 30 s 225 A
Maximum breaking capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
Rated insulation voltage (Ui):
according to IEC 60947-4-1 690 V
according to UL/CSA 600 V
Rated impulse withstand voltage (Uimp): 6 kV
Maximum electrical switching frequency:
(AC-1) 600 cycles per hour
(AC-2 / AC-4) 150 cycles per hour
(AC-3) 1200 cycles per hour
Maximum mechanical switching frequency: 3600 cycles per hour
Rated control circuit voltage (Uc):
50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
Direct current operation 100 ... 250 V
Power loss:
at rated operating conditions AC-1 per pole 1.8 W
at rated operating conditions AC-3 per pole 0.6 W
Operating time:
Between coil de-energization and NC contact closing 13 ... 98 ms
Between coil de-energization and NO contact opening 11 ... 95 ms
Between coil energization and NC contact opening 38 ... 90 ms
Between coil energization and NO contact closing 40 ... 95 ms
DIN rail mounting:
TH35-15 (mounting rail 35 x 15 mm) according to IEC 60715
TH35-7.5 (mounting rail 35 x 7.5 mm) according to IEC 60715
Screw mounting (not included): 2 x M4 screws, diagonally positioned
Main circuit connection capacity:
Flexible with ferrule 1/2x 1.5 ... 10 mm²
Flexible with insulated ferrule 1x 1.5 ... 10 mm²
Flexible with insulated ferrule 2x 1.5 ... 4 mm²
Solid Solid 1/2x 2.5 ... 4 mm²
Solid Stranded 1/2x 2.5 ... 10 mm²
Connection capacity of the control circuit:
Flexible with ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with insulated ferrule 1x 0.75 ... 2.5 mm²
Flexible with insulated ferrule 2x 0.75 ... 1.5 mm²
Solid Solid 1/2x 1 ... 2.5 mm²
Solid Stranded 1/2x 1 ... 2.5 mm²
Stripping length: Control circuit 10 mm, Main circuit 14 mm
Degree of protection:
according to IEC 60529, IEC 60947-1, EN 60529 Coil terminals IP20
according to IEC 60529, IEC 60947-1, EN 60529 Main terminals IP20
Tightening torque:
Control circuit 1.2 N·m
Main circuit 2.5 N·m
Terminal type: Screw terminals
Technical UL/CSA
NEMA size: 1
NEMA rated current: 27 A
NEMA rated power:
(115 V AC) Single-phase 2 hp
(200 V AC) Three-phase 7-1/2 hp
(230 V AC) Single-phase 3 hp
(230 V AC) Three-phase 7-1/2 hp
(460 V AC) Three-phase 10 hp
(575 V AC) Three-phase 10 hp
Maximum working voltage UL/CSA: Main circuit 600 V
General use rated current UL/CSA: (600 V AC) 45 A
UL/CSA rated power:
(120 V AC) Single-phase 2 hp
(200 ... 208 V AC) Three-phase 7-1/2 hp
(220 ... 240 V AC) Three-phase 7-1/2 hp
(240 V AC) Single-phase 3 hp
(440 ... 480 V AC) Three-phase 15 hp
(550 ... 600 V AC) Three-phase 20 hp
Connection capacity Main circuit UL/CSA:
Solid Solid 1/2x 14-10 AWG
Solid Stranded 1/2x 14-8 AWG
Connection capacity Control circuit UL/CSA:
Solid Solid 1/2x 18-14 AWG
Solid Stranded 1/2x 18-14 AWG
Tightening torque UL/CSA:
Control circuit 11 in·lb
Main circuit 22 in·lb
Full load current Motor utilisation:
(120 V AC) Single-phase 24 A
(200 ... 208 V AC) Three-phase 25.3 A
(220 ... 240 V AC) Three-phase 22 A
(240 V AC) Single-phase 17 A
(440 ... 480 V AC) Three-phase 21 A
(550 ... 600 V AC) Three-phase 22 A
Ambient air temperature:
Near contactor equipped with thermal O/L relay -25 ... 60 °C
Near contactor without thermal O/L relay -40 ... 70 °C
Near contactor for storage -60 ... +80 °C
Climate resistance:
Category B according to IEC 60947-1 Appendix Q
Maximum permissible working altitude:
Without power derating 3000 m
Resistance to shocks according to IEC 60068-2-27:
Closed, shock direction: B1 25 g
Open, shock direction: B1 5 g
Shock direction: A 30 g
Shock direction: B2 15 g
Shock direction: C1 25 g
Shock direction: C2 25 g
Vibration resistance:
4 g closed position; 2 g open position 5 ... 300 Hz
Pollution degree: 3
Material Compliance:
Conflict Minerals Reporting Template (CMRT):
CMRT - Conflict Minerals Reporting Template
REACH Declaration:
REACH - Confirmation letter for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Declaration:
RoHS II Declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information:
Following the EU Directive 2011/65/EU and Amendment 2015/863 of July 22, 2019
