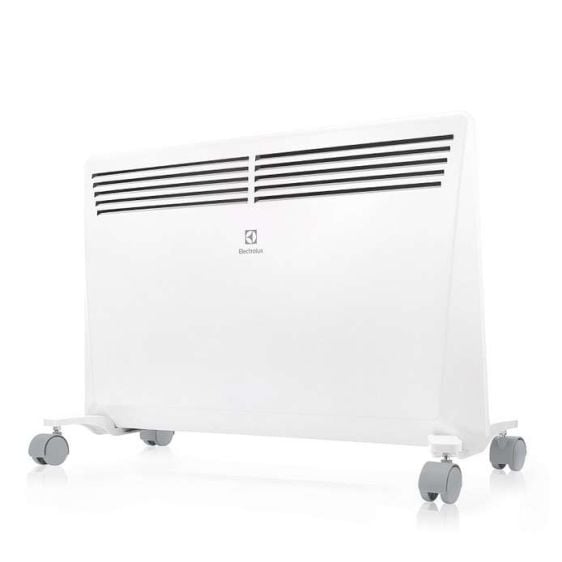

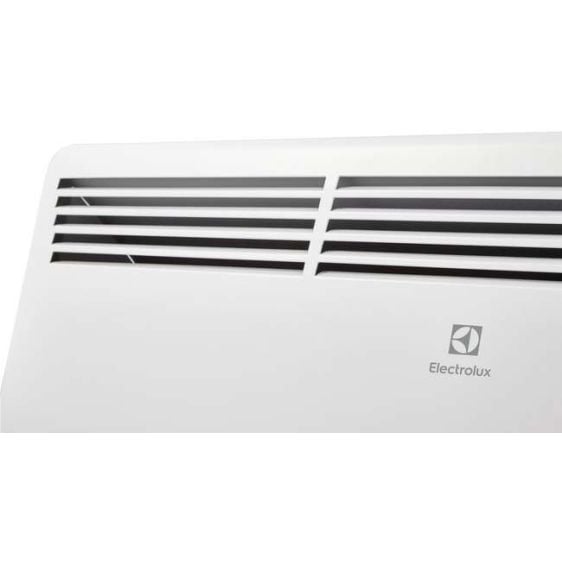

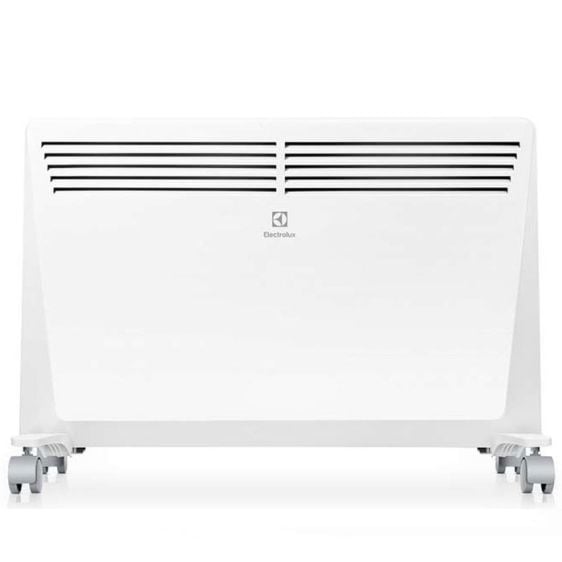

Convector ELECTROLUX ECH/ECN-1500 M EEC

Technical specifications:

• Heating element type: X-shaped monolithic heating element
• Housing material: Steel
• Housing color: White
• Series: ECN
• Warranty period: 2 years

User

• Can be used in the bathroom: yes
• Frost protection mode: no
• Application area: Household appliances (for home use)
• Effective for rooms with an area of up to: 20 m²

Modes

• Number of heating modes: 1
• Ventilation mode: no

Functions

• Save settings during power failure: no

Assembly

• Max. power consumption: 1.5 kW
• Network cable: Yes (with plug)
• Supply voltage: 220 - 240 V
• Cable length: 0.8 m
• Installation type (mounting): Floor

Product weight and dimensions

• Product weight (net): 4.15 kg
• Product height: 9.5 cm
• Product width: 64 cm
• Product depth: 40.5 cm

Technologies

• Inverter technology: no

Control

• Control unit: Built-in
• Mobile app control via Wi-Fi: no
• Thermostat type: Mechanical
• Off timer: no
• Integration into an inverter heating system: no
• Personal programming: no
• Temperature control: Yes (mechanical regulator)
• Temperature setting accuracy: 1.0 °C
• Control type: Mechanical

Indication

• Digital display: no
• Power-on indication: no
• Indication of operating modes: no
• Heating temperature indication: no

Protection and safety

• Child protection of control buttons: no
• Emergency shutdown in case of strong tilting or tipping: yes
• Overheating protection: yes
• Dust and moisture protection class: IP24

Completeness

• Floor mounting kit: yes
• Wall mounting kit: no
• Control panel included: no

Package weight and dimensions

• Weight of product with packaging (gross): 5 kg
• Product packaging height: 14.2 cm
• Product packaging width: 44.5 cm
• Product packaging depth: 67 cm

Warranty: 24 months
