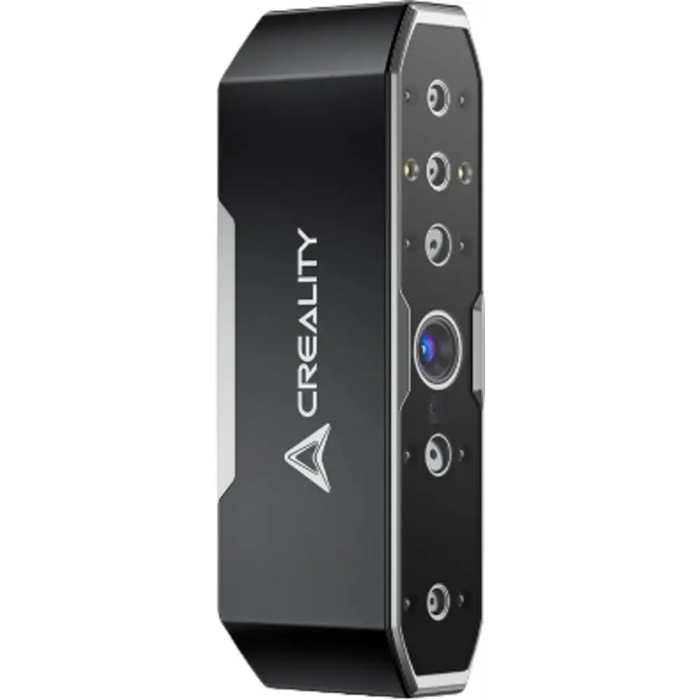

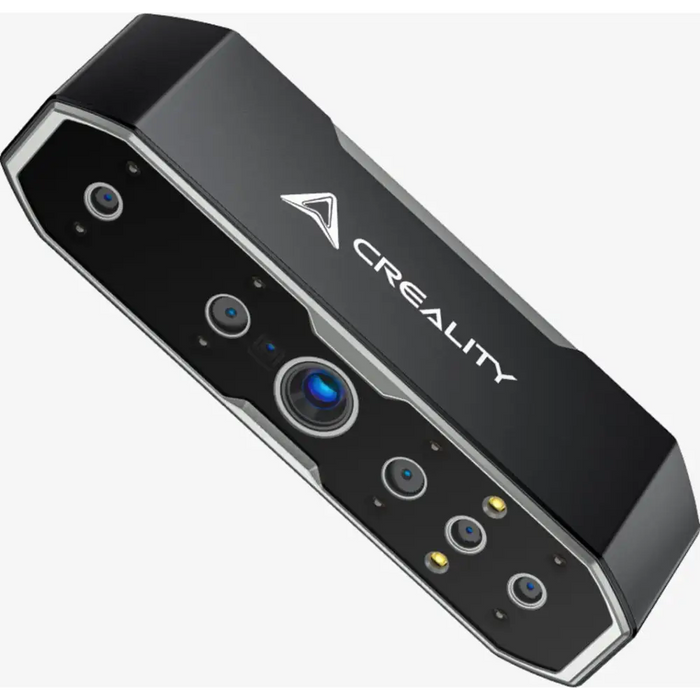

Creality CR-Scan Otter 3D scanner

Creality CR-Scan Otter e innovative 3D scanner, that combines dual lenses and hybrid light for fast and detailed scanning. It is suitable for capturing medium and large objects with exceptional accuracy.

Key Features

 - Accuracy: Up to 0.02 mm

 - 3D resolution: 0.05 – 2 mm

 - Scanning speed: Up to 20 frames per second (fps)

 - Minimum scanning volume: 10 x 10 x 10 mm

 - Maximum scanning volume: 2000 x 2000 x 2000 mm

 - Scanning technology: Structured infrared light

 -  Working distance: 110 – 1000 mm

 - Colour mapping: Yes

 - Alignment modes: Geometry, marker, texture

 - IMU (inertial module): Yes

 - Additional colour light: 2 white LED lights

 - Enhanced marker detection: 8 infrared LED lights

 - Laser safety: Class 1

 Connectivity and compatibility

 - Operating system: Windows, macOS

  - Interface: USB Type-C

  - Input voltage: 5V, 3A

 Design and convenience

- Dimensions: 165 x 37 x 59 mm

 - Weight: 390 g

 - All-metal body – sturdy and balanced industrial design

 - Fanless – silent operation and efficient heat dissipation

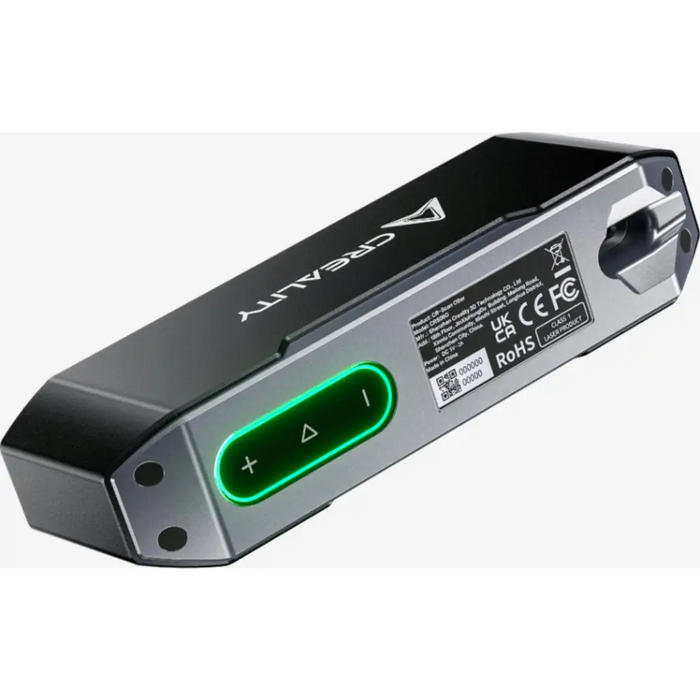

 - Touch buttons – intuitive control

  - Light indicator – shows real-time scanning status

 Software and features

 - CrealityScan – intuitive software with powerful functions

 - One-click processing – easy point cloud editing

 - Scanning modes: Marker, face and body, texture

 - Scanning of black objects and metallic surfaces

 - High precision – ideal for engineering and design applications

 - Compact and lightweight – convenient for mobile work

 - Intuitive software – easy to use without complex settings

 - Versatility – suitable for various types of scanning
