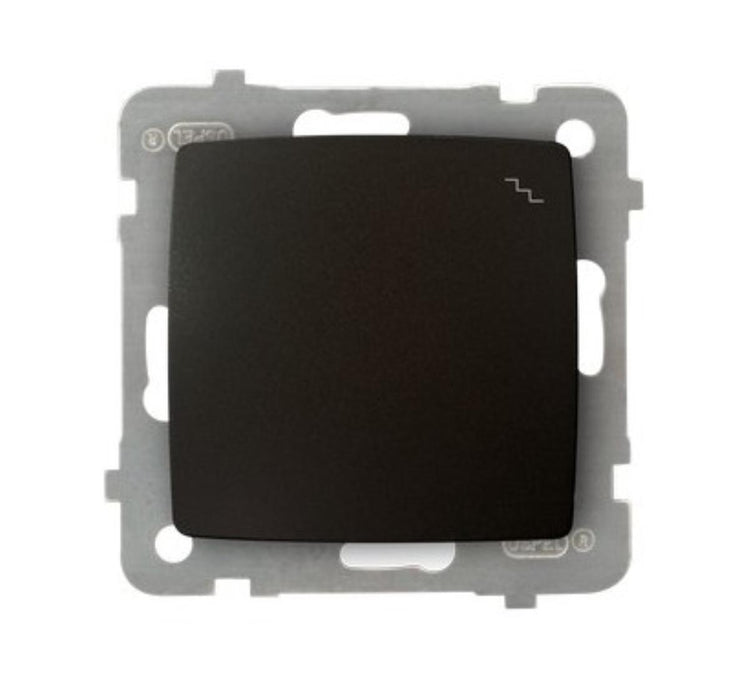

DEVIATOR KEY CHOCOLATE KARO

DESCRIPTION
A switch that, together with a second staircase switch, allows you to control lighting from two different locations. Switching one of the pair changes the state of the circuit (open/closed) to the opposite state. Used in staircases or corridors, for example, you can turn on the light on the ground floor and turn it off on the upper floor. The kit requires a frame. Can be used for systems with multiple frames.
The standard switch has an IP-20 protection rating.
TECHNICAL DATA

• Manufacturer code: ŁP-3S/m/40
• Color: Chocolate
• Installation type: Recessed installation
• Security level: IP-20
• Backlight: NO
• Material: Plastic
• Rated voltage: 250V
• Rated current: 10AX
• Connection type: Screw terminals
• Frame included: NO
