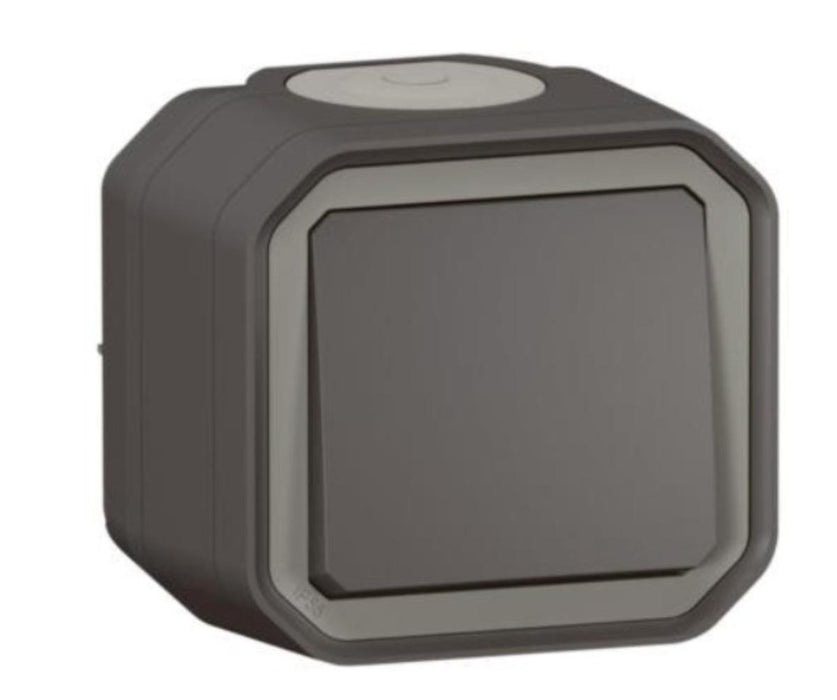

DIVIATOR SWITCH 10A IP55 ANTHRACITE PLEXO

PLEXO55 from Legrand offers reliable protection with IP55 rating, ideal for demanding environments. It is water- and dust-resistant, easy to install, and has a modern design that ensures durability and reliability both indoors and outdoors.

• Wiring system: Two-way switch
• Operating method: Button/press
• Assembly: Basic element with full housing
• Push-button switch: No
• Mounting method: Surface mount
• Fastening type: Screw mounting
• With mounting plate: No
• Material: Plastic
• Material quality: Thermoplastic
• Halogen-free: Yes
• Antimicrobial treatment: No
• Surface protection: Untreated
• Surface finish: Matt
• Colour: Anthracite
• RAL number (similar): 7016
• Switch colour: Anthracite
• Illumination: No
• IP rating: IP55
• Impact resistance (IK): IK08
• Rated voltage: 250 V
• Rated current: 10 A
• Switching current for fluorescent lamps: 10 AX
• Monitoring contact: No
• Connection type: Plug-in clamp
• Heating switch: No
• Device width: 82 mm
• Device height: 85 mm
• Device depth: 61 mm
• Operating / adjustable temperature: -10-40 °C
• Storage temperature: -25-60 °C
• Voltage type: AC
• Frequency: 50-60 Hz
• Terminal marking indication: Yes
• Terminal capacity: 1.5-2.5 mm²
• Connecting cable type: Flexible or solid
• Cable cross-section: 1.5-2.5 mm²
• Wall conduit diameter: 16-25 mm
