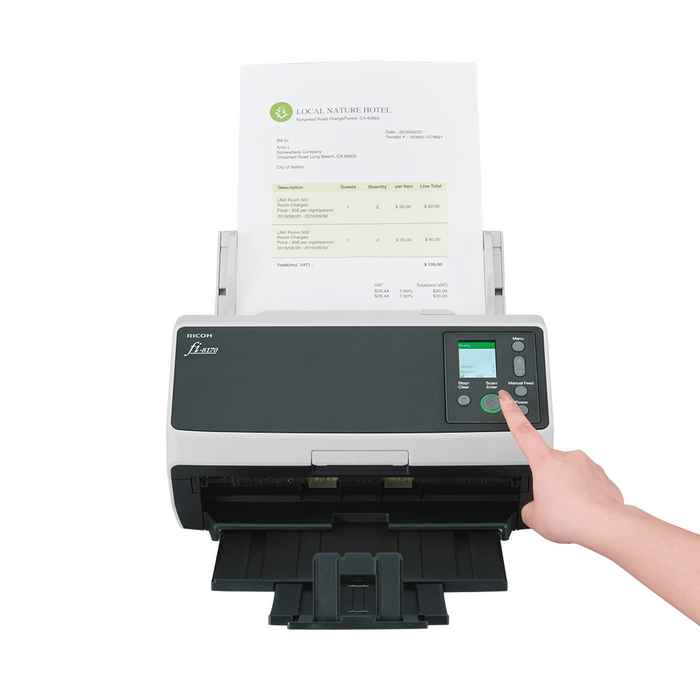

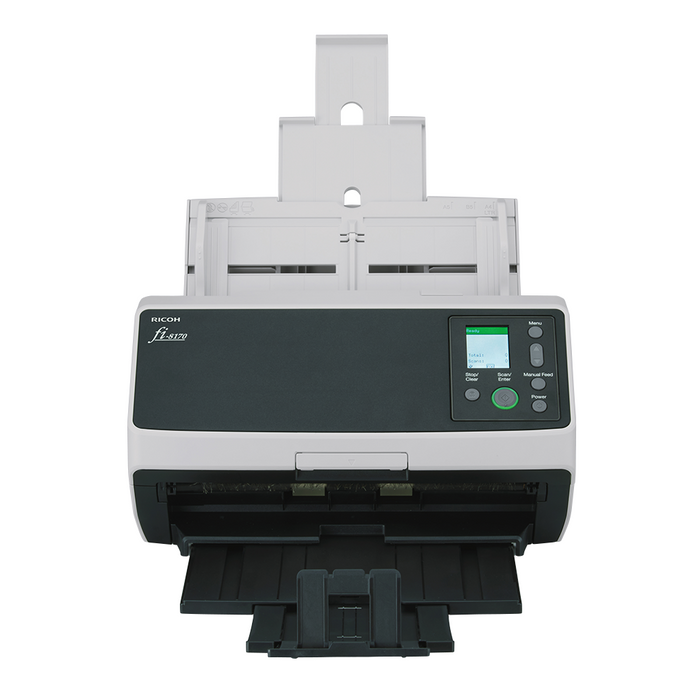

The Ricoh Image Scanner fi-8170 is compact and reliable, offering scanning speeds of 70 ppm/140 ipm (200/300 dpi in color mode and A4 portrait).
With the ability to load up to 100 sheets into the ADF for mixed-size originals, the fi-8170 can handle up to 10,000 documents per day:
The scanner works with a wide range of document types – from 20gsm to 465gsm, cards or brochures up to 7mm thick.
It offers several extremely useful functionalities:
- Automatic Separation Control - scanning documents of different formats at once without the need for prior manual sorting.
- The Paper Protection feature on Ricoh FI8150 scanners is designed to protect documents from damage during scanning.
This technology uses Image Monitoring, which identifies documents that are too tilted or jammed in real time and stops

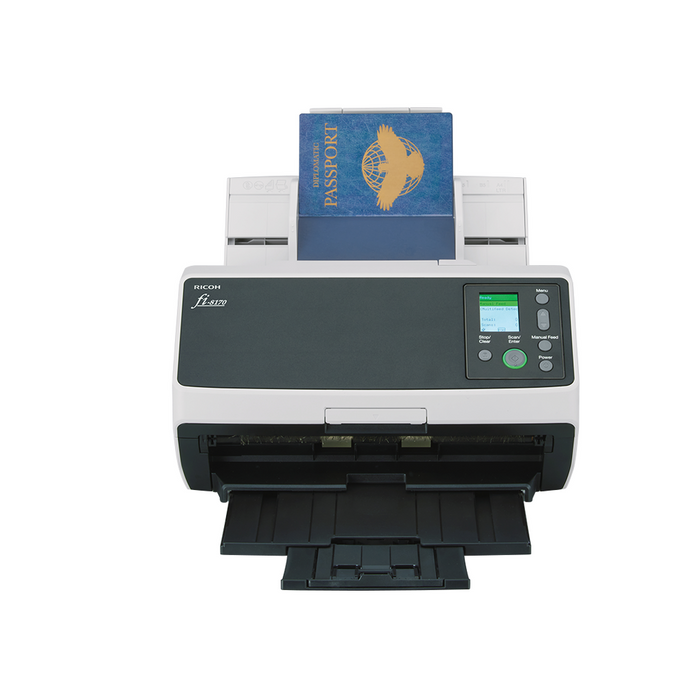

scanning process before they are damaged. This is especially important for official documents such as passports and others.
- PFU Clear Image Capture is a technology that uses algorithms to prevent color shift and address line distortion,
caused by creased, folded or creased paper, compensating for these variations and delivering exceptionally clear images
- Overscan Control - Automatically adjusts the scan area to prevent image loss on skewed documents, eliminating
the need to rescan them. The device has three precisely positioned sensors that detect the edges of the document and adjust
the scan to an appropriate area to fit the document, even if it is placed at an angle.
Functionality: ADF - automatic document feeder
duplex scanning
manual feeding of originals
Maximum monthly workload: up to 10,000 documents
Format: up to and including A4
ADF - automatic document feeder: up to 140 documents, various formats
Automatic duplex: Yes
Scan speed: duplex: 140 ipm (200/300 dpi)
single-sided: 70 ppm (200/300 dpi)
Scan color saturation: Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Light source: RGB LED x 2 (front x 1, rear x 1)
Scanning resolution: 50 to 600 dpi (adjustable in 1 dpi increments), 1200 dpi (driver)
Minimum scan sheet size: 48 x 50 mm
Maximum scan sheet size: 215.9 x 355.6 mm
Long paper scanning: 6096 mm
Interface: 10BASE-T, 100BASE-TX, 1000BASE-T
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Device dimensions: 300 x 170 x 163 mm
Device weight: 4 kg
Software: PaperStream IP, PaperStream Capture, ABBYY FineReader for ScanSnap, Scanner Central Admin, Linux Driver
Supported OS: Windows, Ubuntu
