| Marketing description |

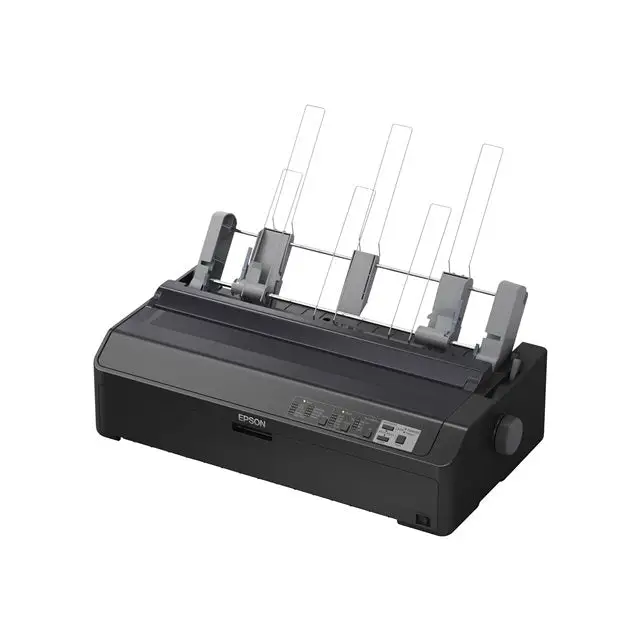

| The Epson LQ-2090II dot matrix printer delivers the durability and performance needed for demanding everyday printing requirements. These reliable 24-pin wide-format dot matrix printers stand out for their long service life and high speed. The up-to-8-million-- ribbon cartridge reduces user intervention as well as the cost per page. Designed for seamless integration into virtually any system, they support Epson ESC/P2 and IBM PPDS printing languages. Ideal for harsh environments, these workhorses handle continuous, roll or multipart forms up to 7 parts thick and feature an intuitive control panel for easy setup and operation. |
| Product features |
-
Efficient performance
With a duty cycle of 8 million characters and an MTBF of 25,000 hours, the Epson LQ 2090II is designed for durability and reliability, providing long periods of continuous printing without frequent maintenance.
-
Flexible media handling
This printer supports a wide range of media sizes – from small cards to large continuous forms up to 406.4 mm wide – making it ideal for various printing needs, including envelopes, plain paper and continuous forms.
-
High-speed printing
Achieve maximum efficiency with print speeds of up to 584 characters/sec in high-speed draft mode, making the Epson LQ 2090II an excellent choice for high-volume printing tasks.
-
Advanced connectivity
Equipped with USB 2.0 and parallel interfaces, the Epson LQ 2090II offers flexible connectivity options that allow easy integration into existing systems.
-
Eco-friendly design
ENERGY STAR certified, the Epson LQ 2090II not only meets your printing needs but also provides energy efficiency, helping to lower operating costs and protect the environment.
|
| General data |
| Printer type |
Workgroup printer – dot matrix – 24-pin – monochrome |
| Printer |
| Print speed |
Up to 550 characters/sec – super high-speed draft – 10 cpi
Up to 584 characters/sec – high-speed draft – 12 cpi
Up to 487 characters/sec – high-speed draft – 10 cpi
Up to 366 characters/sec – draft – 10 cpi
Up to 439 characters/sec – draft – 12 cpi
Up to 549 characters/sec – draft – 15 cpi
Up to 145 characters/sec – letter quality – 12 cpi
Up to 121 characters/sec – letter quality – 10 cpi |
| Connectivity technology |
Wired |
| Interface |
Parallel, USB 2.0 |
| Maximum resolution (B/W) |
360 x 180 dpi |
| Maximum resolution class (B/W) |
360 x 180 dpi |
| Language emulation |
EPSON ESC/P 2, IBM PPDS |
| Barcodes |
Code 39, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Code 128, Interleaved 2 of 5, Postnet |
| RAM |
| Installed RAM (max.) |
128 KB |
| Media handling |
| Media type |
Envelopes, plain paper, continuous forms, cards, recycled paper |
| Maximum media size |
Roll (21.6 cm), continuous paper 101.6 mm – 406.4 mm (width), 420 x 364 mm |
| Minimum media size (custom) |
100 mm |
| Maximum media size (custom) |
420 mm |
| Media sizes |
Roll (21.6 cm), continuous paper 101.6 mm – 406.4 mm (width), 406.4 x 558.8 mm, 420 x 364 mm |
| Envelope sizes |
Com-10 (105 x 241 mm), US No 6 (92 x 165 mm) |
| Card / label sizes |
100 x 148 mm, 148 x 148 mm |
| Media thickness range |
0.065 mm - 0.49 mm |
| Media weight |
40 g/m² - 192 g/m² |
| Max. number of sheets in multi-part form |
6 |
| Expansion / connectivity |
| Interfaces |
1 x parallel
1 x USB 2.0 |
| Miscellaneous |
| Included consumables |
1 x print ribbon cartridge - up to 8 million characters |
| MTBF |
25 000 hour(s) |
| Compatible standards |
EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, FCC Part 15 B Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CAN/CSA-C22.2 No. 60950-1, UL 62368-1 |
| Power |
| Power supply unit |
Power - internal |
| Software / system requirements |
| Required operating system |
Microsoft Windows XP Professional x64 Edition SP2 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008, Microsoft Windows Server 2003 SP2 or later, Microsoft Windows Vista (32/64 bit), Microsoft Windows 7 (32/64 bit), Microsoft Windows Server 2012, Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Microsoft Windows Server 2012 R2, Microsoft Windows XP SP3 (32 bit) or later, Windows 10 (32/64 bit), Microsoft Windows Server 2016 |
| Environmental standards |
| ENERGY STAR |
Yes |
| Environmental parameters |
| Min. operating temperature |
5 °C |
| Max. operating temperature |
35 °C |
| Operating humidity range |
10 - 80% (non-condensing) |
| Noise emission (in operation) |
55 dBA |
| Dimensions and weight |
| Width |
61.2 cm |
| Depth |
32 cm |
| Height |
17.65 cm |
| Weight |
9.4 kg |
