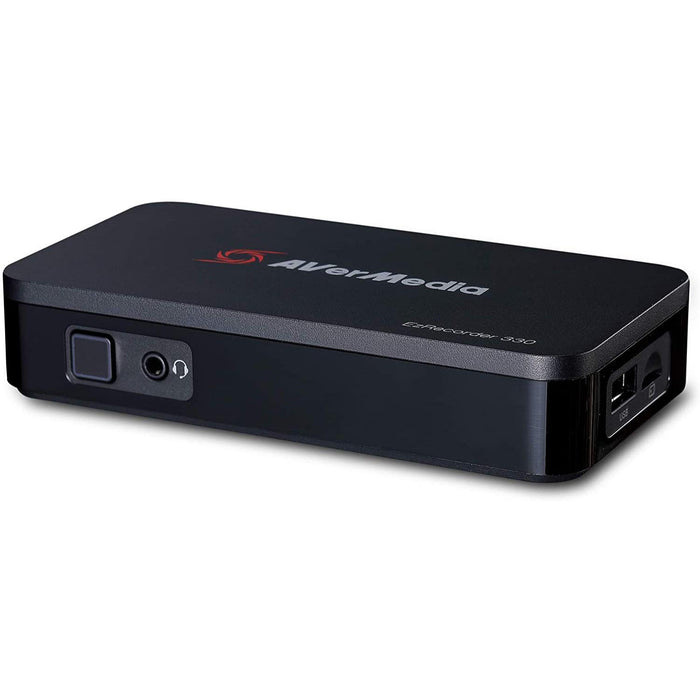

External AVerMedia Capture HD Video EZRecorder 330

Technical specifications:

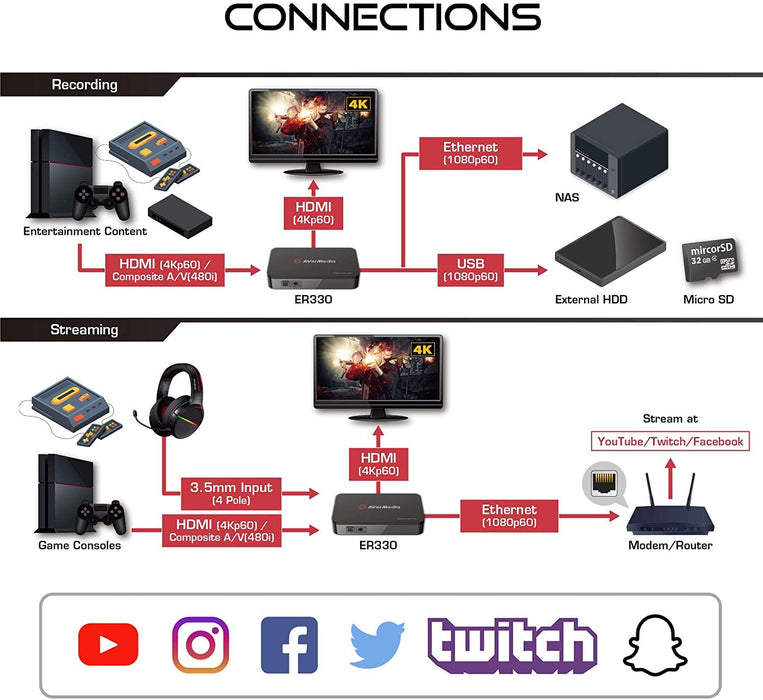

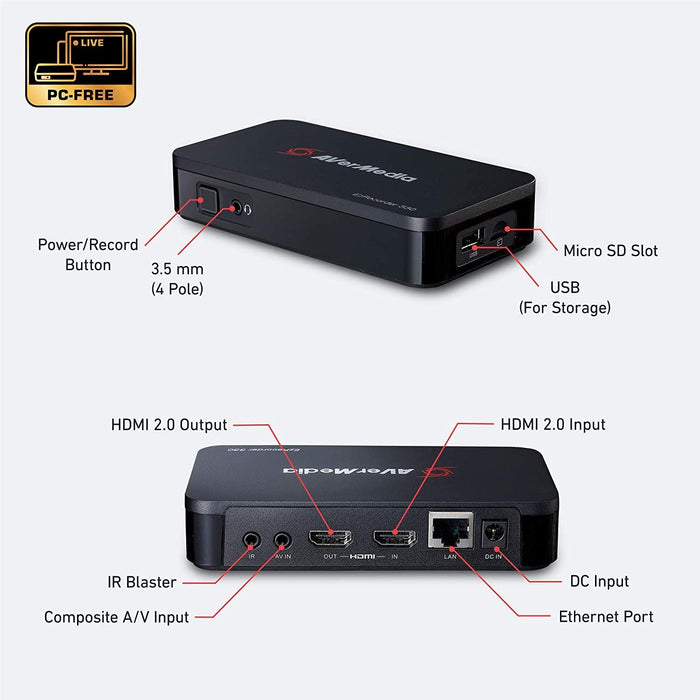

• Interface: External USB 2.0 Storage / RJ45 (to NAS) / microSD Card
• Video input: HDMI / Composite
• Video output (Pass-Through): HDMI
• Audio input: HDMI 2.0 / AV IN / 3.5mm
• Audio output (Pass-Through): HDMI / 3.5mm
• Maximum resolution (Pass-Through): 4Kp60 HDMI / 480i Composite
• Maximum recording resolution: 1080p60
• Compression: MPEG 4 (H.264+AAC) or (H.265 + AAC)
• PC-free mode - recording on SD card, minimum SDHC Class 10 or to NAS
• Dimensions (W x D x H): 135 x 71.2 x 28 mm (5.31 x 2.8 x 1.1 in)
• Weight: 150 g (5.11 oz)

Minimum system requirements for Streaming PC in 1080p60

• OS - Windows 10 x64 (UVC Protocol)
• CPU - Intel Core i5-3300 / AMD A10-7890K (or higher class)
• GPU - NVIDIA GeForce GTX 650 / AMD Radeon R7 250X (or higher class)
• RAM - 4 GB

Equipment

EzRecorder 330 (ER330)
• HDMI Cable
• Power Adapter
• Remote (batteries included)
• Infrared receiver
• 3.5mm to RCA
• Quick start guide
