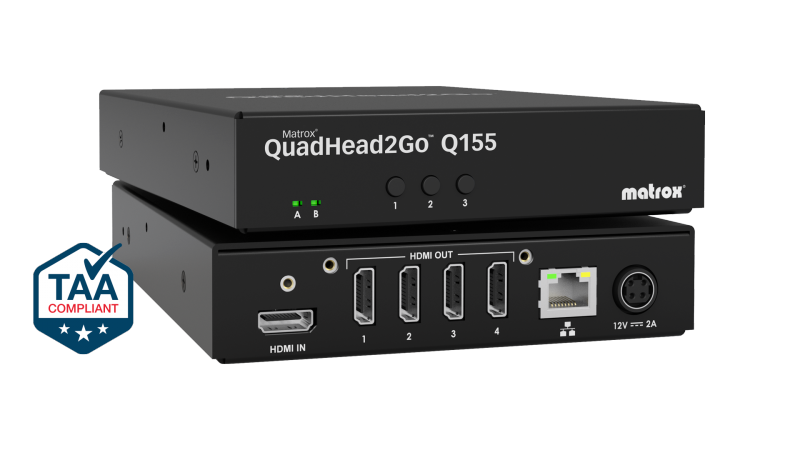

External multi-display adapter Matrox QuadHead2GO Q155 Multi-Monitor Q2G-H4K2 for simultaneous operation of 4 monitors with HDMI input

Drive up to four Full HD displays from a single video signal — up to 4Kp60 and 8Kx8K — with full support for
RGB 8:8:8 and YUV 4:4:4. The system-independent Matrox QuadHead2Go series is designed to power
any video wall configuration of any possible size, from any video source – providing reliable
flawless image quality on large video wall displays. The QuadHead2Go buttons on the device
and pre-set configurations provide a seamless out-of-the-box installation experience. TAA-compliant SKU available.

Video input: 1 x HDMI
Video output: 4 x HDMI
Network connector: 1 x RJ45
Memory: 1GB
Video input resolutions: 3840x2160 at 60Hz
3840x2160 at 30Hz
7680x1080 at 60Hz
7680x1080 at 30Hz
1920x4320 at 60Hz
1920x4320 at 30Hz
Video output resolutions: 1920x1080 at 60Hz
1920x1080 at 30Hz
1920x1200 at 60Hz
1920x1200 at 30Hz
Color Space and Chroma Sub-Sampling: Input: RGB: 8:8:8 (24 bits per pixel)
YUV: 4:4:4, 4:2:2, 4:2:0 (8 bits per component)
Output: RGB: 8:8:8 (24 bits per pixel)
Supported configurations: 2x2 (default), 4x1, 3x1, 2x1, 1x2, 1x3, 1x4 in both landscape and portrait orientation
Video Cropping: Yes
Extended desktop support: Yes
HDCP support: Yes
Audio output format: AAC, PCM, stereo and mono
Product dimensions: 13.97 x 3.18 x 18.11 cm
Power consumption: 15W
