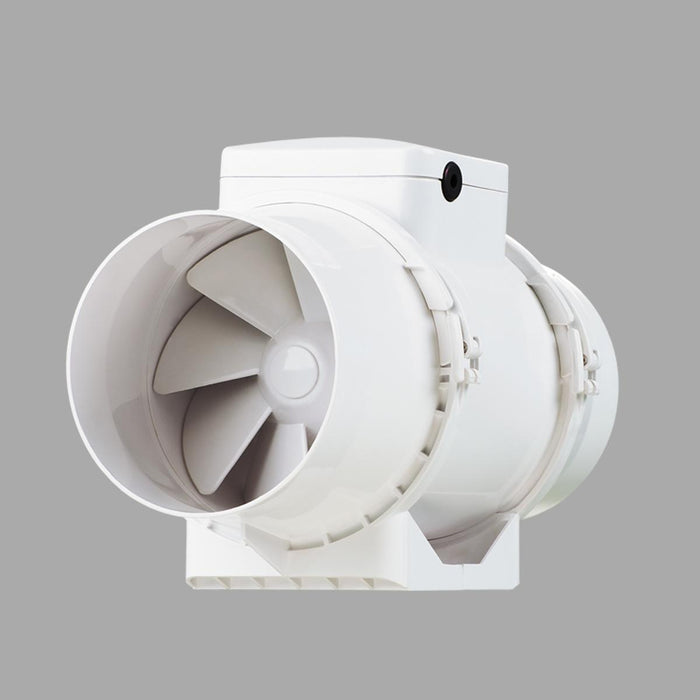

FAN HOUSEHOLD AXIS F100

Vents TT 100 inline duct fan with ball bearings:

Housing:

The fan cover is made of high-quality, durable ABS plastic. The impeller motor and terminal blocks are fixed to the fan housing by special clips with latches, which allow disassembly as easily as possible. Thanks to its design, this fan is easy to maintain.

Motor:

The single-phase ball bearing motor has two speeds that can be switched using an external switch. The motor is equipped with a thermal protector with automatic reset. Protection rating IP44.

Operation:

The Vents TT fan fully meets the requirements for high pressure yet low noise levels. The fan can be used in areas with high humidity, such as toilets, kitchens, offices, greenhouses, grow rooms, etc. Thanks to its technical parameters, it is designed for extraction in ducts up to 10 metres long. This fan is compatible with all round ducts with a diameter of 100 mm from our range.

Life:

Spherical bearings extend the life of your fan up to 40,000 hours.

Installation:

The fan can be installed anywhere in the duct system, vertically or horizontally. Several fans can be installed simultaneously to increase the pressure or capacity of the transported air. The fan housing is equipped with a mounting plate for wall installation.

Specifications:

• Noise level: 27/36 dB / 3m
• Weight: 1400 g
• Frequency: 50/60 Hz
• Material: Plastic, metal
• Maximum temperature 60 ° C
• Installation between pipes
• Voltage: 220/240 V
• Speed: 2180/2385 rpm
• Current: 0.11 / 0.21 A
• Air flow: 145/187 m³ / h
• Power consumption: 21/33 W
• Static pressure: 120/135 Pa
• Protection rating: IP44
• Service life: 40,000 hours
