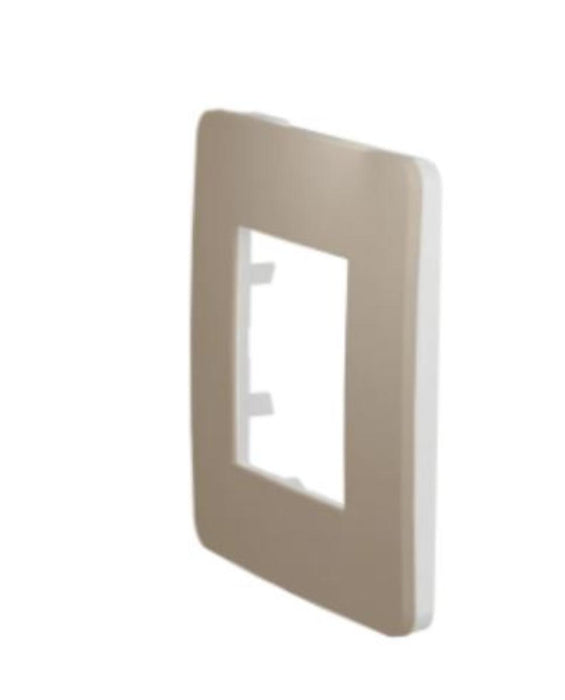

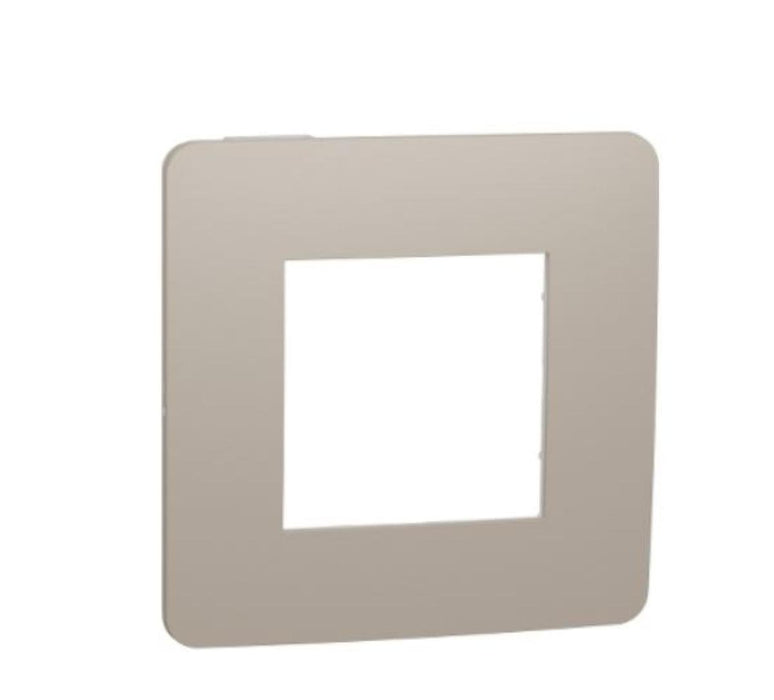

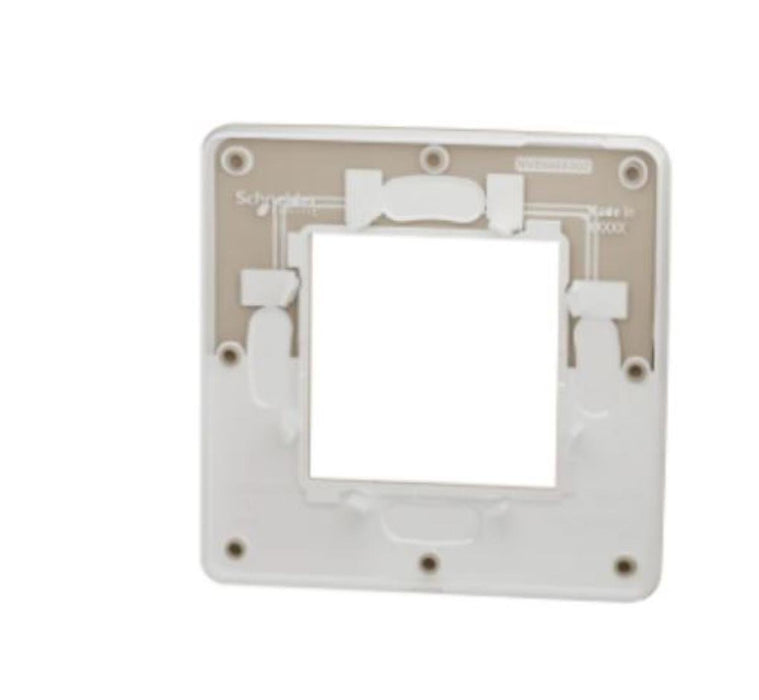

FRAME SINGLE UNICA STUDIO CAPPUCCINO

The cover frame of the Schneider Electric New Unica NU280226 is in taupe colour. The cover frame is made of polycarbonate, thermoplastic ABS-UV stabilised, which makes it as resistant as possible. In addition, it reaches a protection level IK04, which can help protect against impact. Moreover, as it is environmentally friendly, this device has achieved UV resistance, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol, window cleaning liquid. This cover frame also does not contain SVHC (substances of very high concern). This cover frame belongs to the Unica Studio Color aesthetic group. Furthermore, it meets the IEC 60669-1, IEC 60884-1 standards well. Its width is 85 mm. 85 mm height. 10 mm depth. In addition, it is halogen-free, halogen-free, which is beneficial for your health. With 1 x 2 modules. The fixing mode of this device is by clip. And the product weighs 0.02 kg. The new Unica has innovative features to bring the range into the smart homes of the future. Welcome to the new Unica – irresistible, beautiful and innovative.

Device application: Installation
Product or component type: Cover frame
Mounting direction: Horizontal/vertical
Frame type: Single
Number of modules: 2 modules:
Fixing mode: Clip
Panel colour shade: taupe
Side shade: white (RAL 9003)
Material: Thermoplastic ABS-UV
Stabilised: Cover frame

Standards:
IEC 60884-1
IEC 60669-1

Width: 85 mm
Height: 85 mm
Depth: 10 mm
Net weight: 0.013 kg

Chemical agent resistance:
Resistant to alcohol (70%)
Resistant to alcohol (96%)
Resistant to A-lactic acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaning agent
Resistant to hydrogen peroxide 10 volume
Resistant to hexane
IK protection degree: IK04
IP protection degree: IP21D
