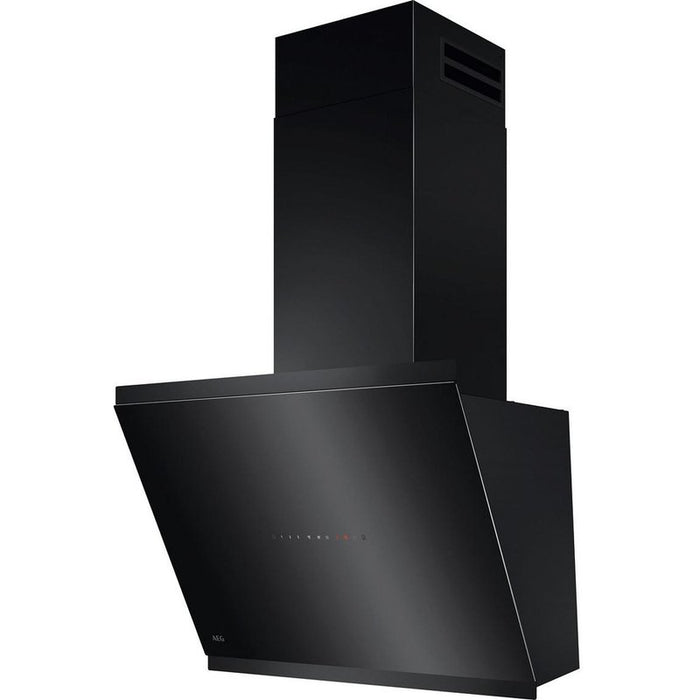

Hood AEG GV77D61SB

Hob2Hood®. The perfect partner when you cook.

The Hob2Hood® feature wirelessly activates the hood lights when you turn on the hob. When you start cooking, the fan speed is adjusted based on the heat settings on the hob. Cook delicious meals without worrying about smells and fumes.

Technical specifications:

• Installation type: Decorative, width 60 cm
• Number of power levels: 3+2 intensive;Breeze function;SilenceTech
• Max. absorption capacity (intensive speed): 760 m³/h
• IEC Absorption capacity in standard operation mode (max./min.): 445 / 260 cubic meters/h
• Maximum and minimum noise level (high/low): 68/50 dB(A)
• Perimeter absorption with low energy consumption and noise level

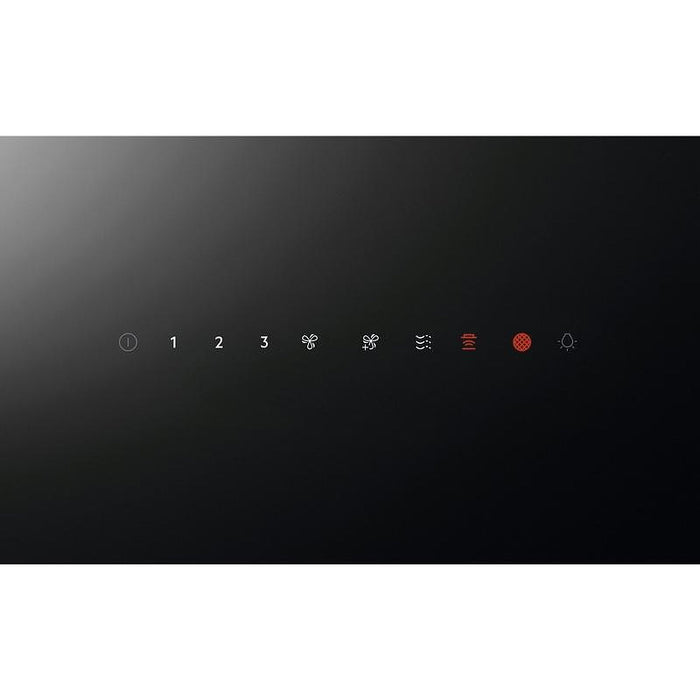

• Electronic sensor control on glass with 3+2 intensive; Breeze function; SilenceTech speeds.
• Air extraction or recirculation in the presence of a carbon filter (optional accessory).
• Grease filter saturation indicator
• Carbon filter saturation indicator
• Type and number of hood lamps: Square LED lighting, 2
• Grease filter type and number: Black aluminum, 2

Performance indicators

• Number of speeds: 3+2 intensive; Breeze function; SilenceTech
• Capacity, min/max/int. (m3/h): 260/445/760
• Noise level, min/max/int. dB(A): 43/55/67
• Light temperature (K): 3000
• Number of lamps: 2
• Connection to the countertop (H2H): Yes
• Recirculation Min (m3/h): 250
• Recirculation Max (m3/h): 440
• Intensive recirculation, m³/h: 725
• Sound power in recirculation Min. dB(A): 51
• Sound power in recirculation Max dB(A): 71

Installation

• Minimum distance from radiant panel: 50
• Minimum distance from gas hob: 65
• Size: 60
• Recirculating: Yes
• External evacuation: Yes
• Net weight (kg): 17
• Gross weight (kg) : 23.2

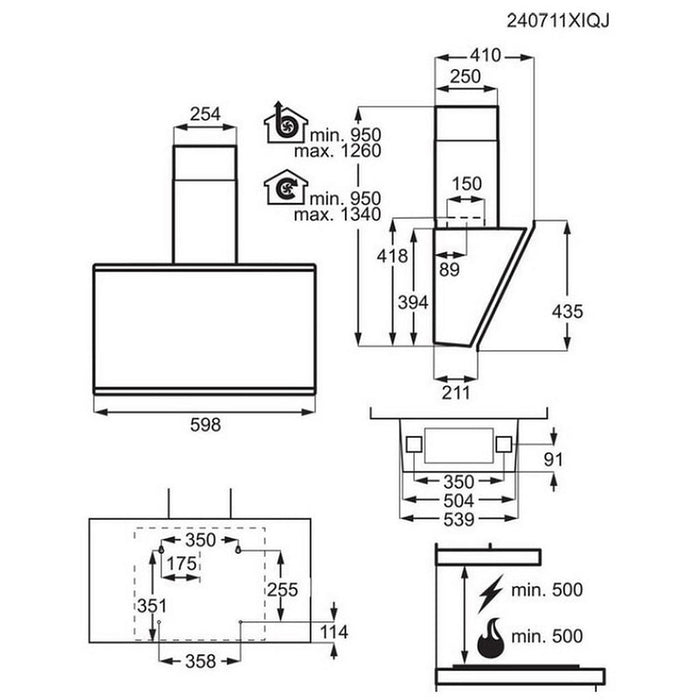

• Dimensions HxWxD in mm: 1260x598x410
• Installation type: Decorative

Energy performance

• Energy class: A+
• Grease filter efficiency class: B
• Annual energy consumption (kWh/year): 40.7
• Gas dynamic efficiency class: A
• Illumination class: A

Others

• Product number (PNC): 942 051 513
• Main color: Black
• Control type: Touch screen on glass
• Lighting type: Square LED lighting
• Product code (PNC): 942 051 513
• Barcode: 7333394059099

Warranty: 24 months
