Description

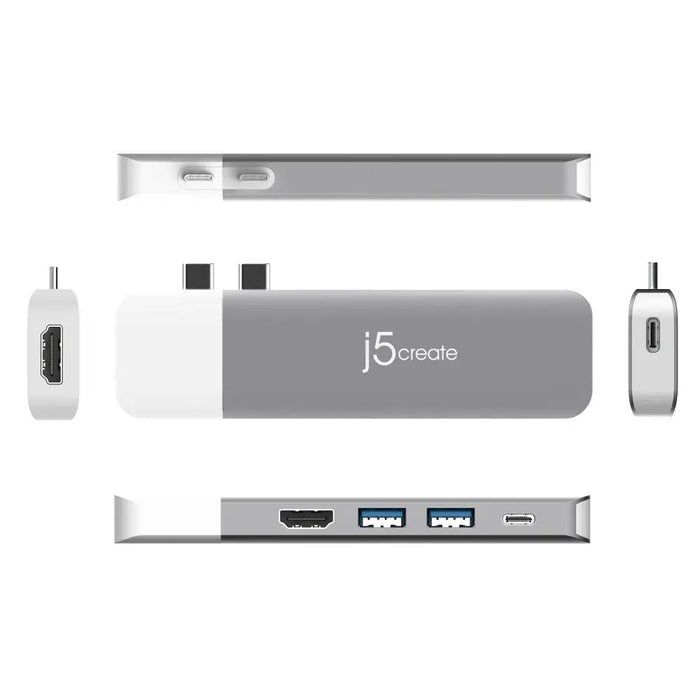

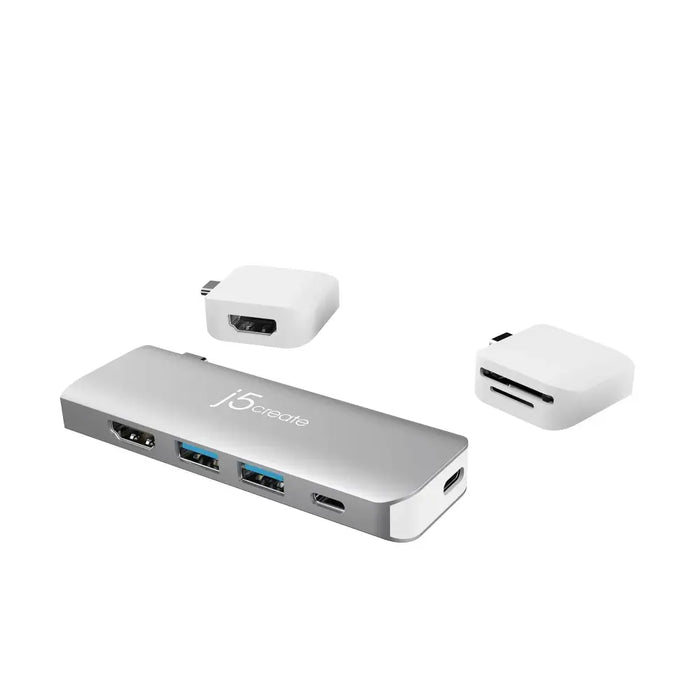

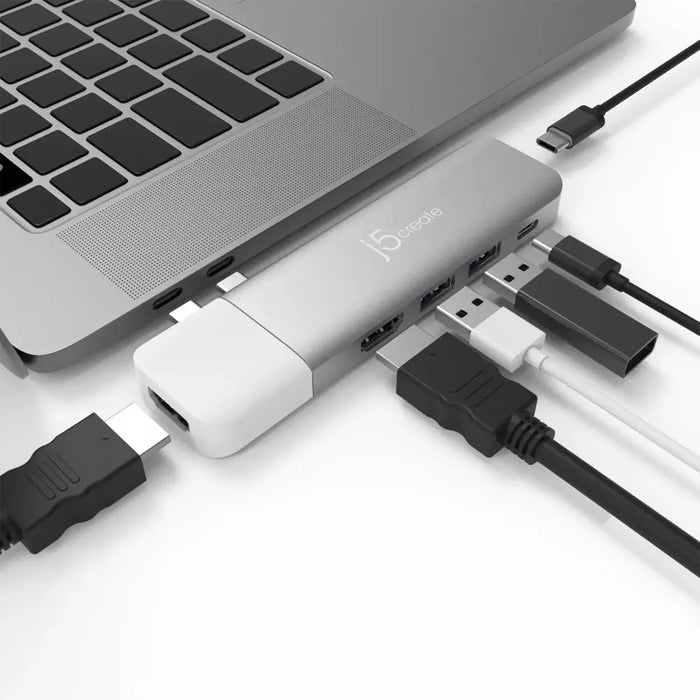

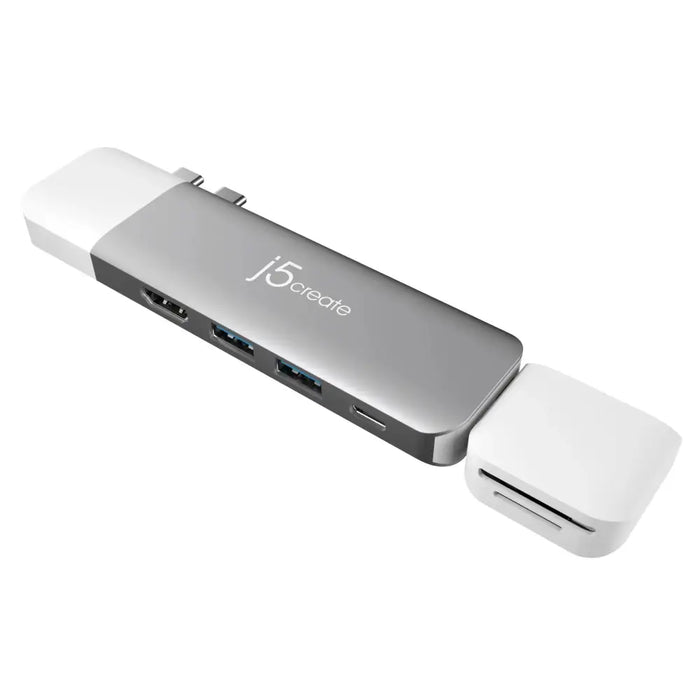

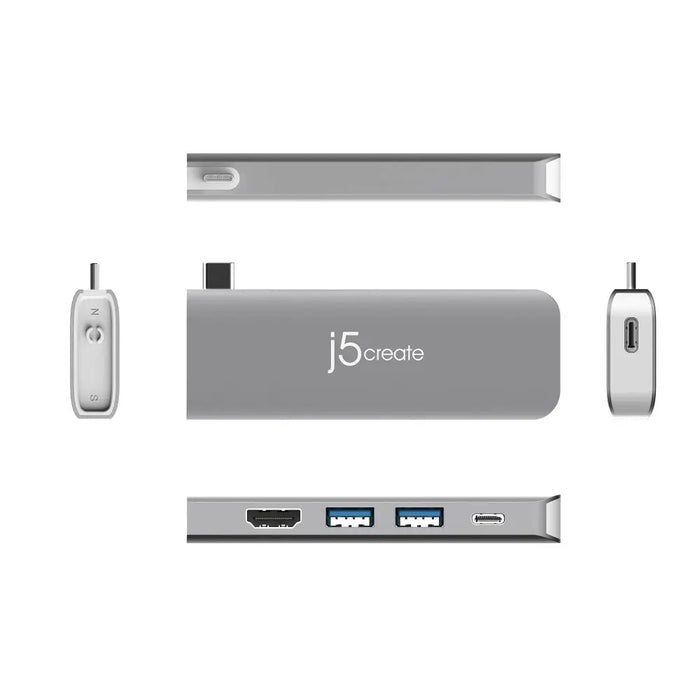

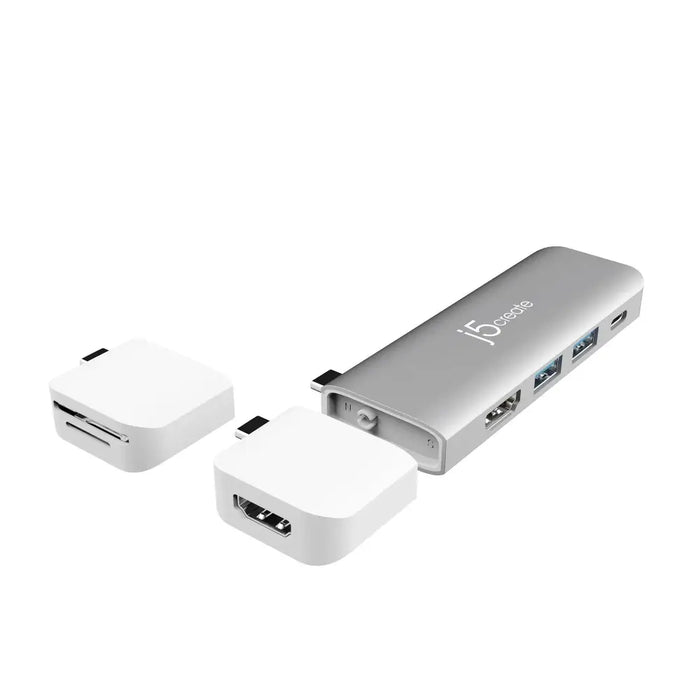

JCD387 modular docking station with 2 detachable magnetic sets

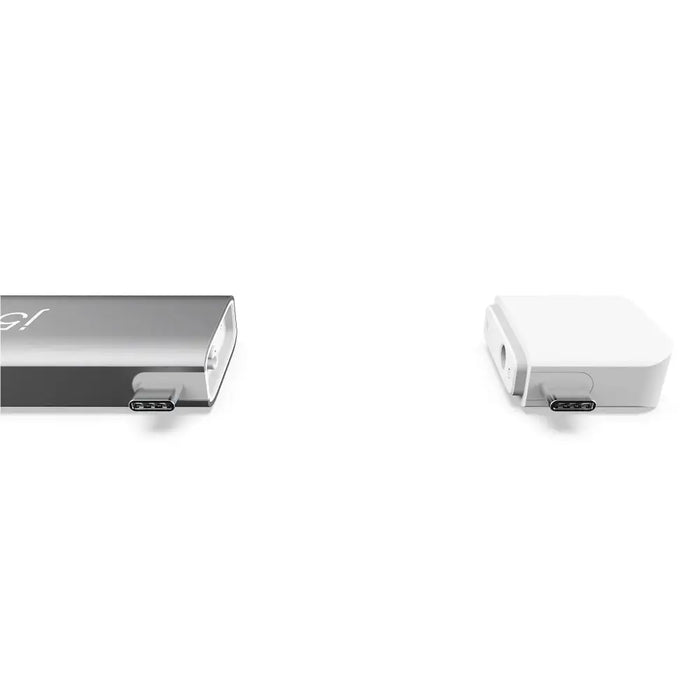

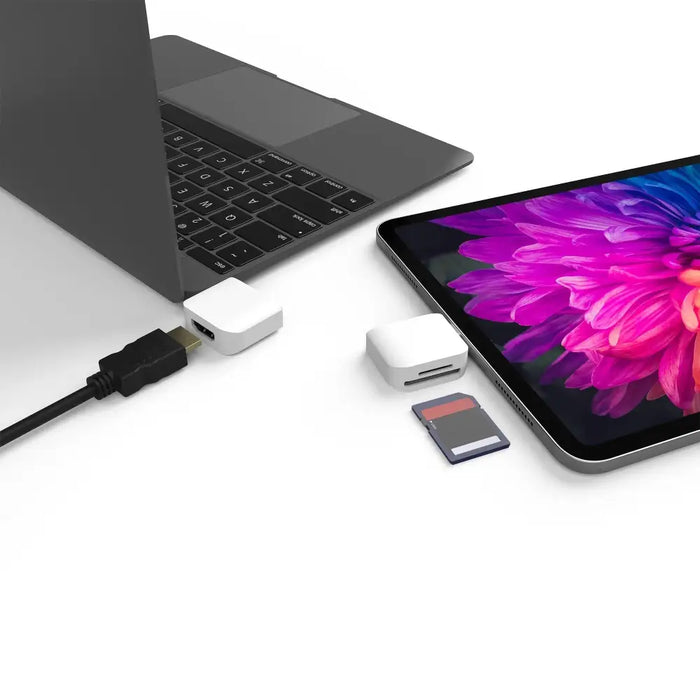

Each module can operate separately as a standalone mini adapter or be attached magnetically for use with the main body.
Connection: main body: USB-C male
magnetic attachment: USB-C male
Ports:
main body: 1 - USB-C Power Delivery 3.0
1 - USB-C 3.1 Gen 1
2 - USB 3.1 Gen 1 Type-A
1 - 4K HDMI

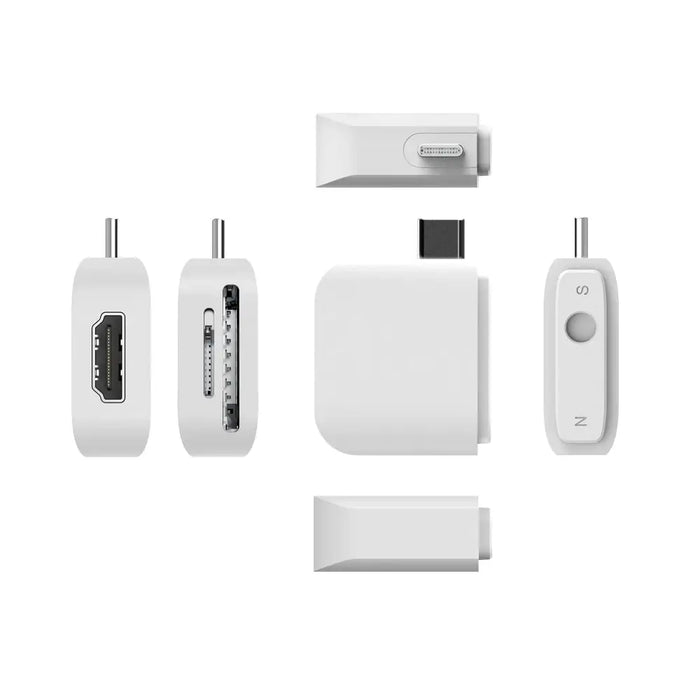

magnetic dock (standalone): 1 - USB-C to 4K HDMI
1 - USB-C to SD & microSD 3.0
Video outputs:
main body: HDMI female
magnetic plug: HDMI female
Audio channels:
main body: 2.1 via HDMI
magnetic socket: 2.1 via HDMI
Supported displays:
main body: 1
magnetic attachment: 2 (when used with the main body and connected to a compatible MacBook)
Max data transfer:
main body: 5 Gbps
magnetic attachment: 5 Gbps
Input current: up to 5A
Input voltage: up to 20V
Output current: up to 4.75A
Output voltage: up to 20V
power: up to 100W via USB-C
