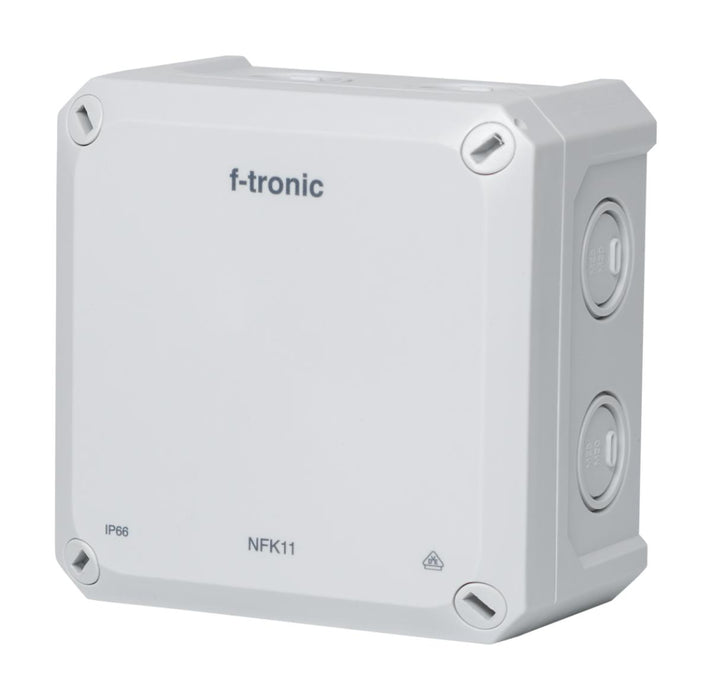

JUNCTION BOX IR66110X110X67NEPTUN

JUNCTION BOX IR66110X110X67NEPTUN

by F-tronic
€12,90 - €12,90
€12,90
€12,90 - €12,90
€12,90
SKU DGT0390754
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

NEPTUN Compact - Small size. Great durability.

  • Robust housing in a modern design.
  • Screws with mounting position.

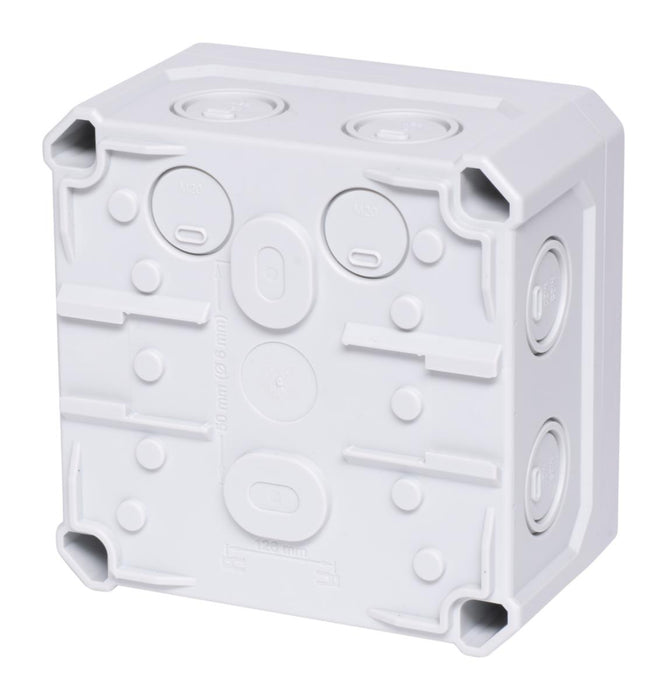

  • Various drilling inputs M20-M40.
  • Protection class IP66 with complete sealing.
  • Custom fixing options for perfect alignment.
  • Membrane input on NFK08.

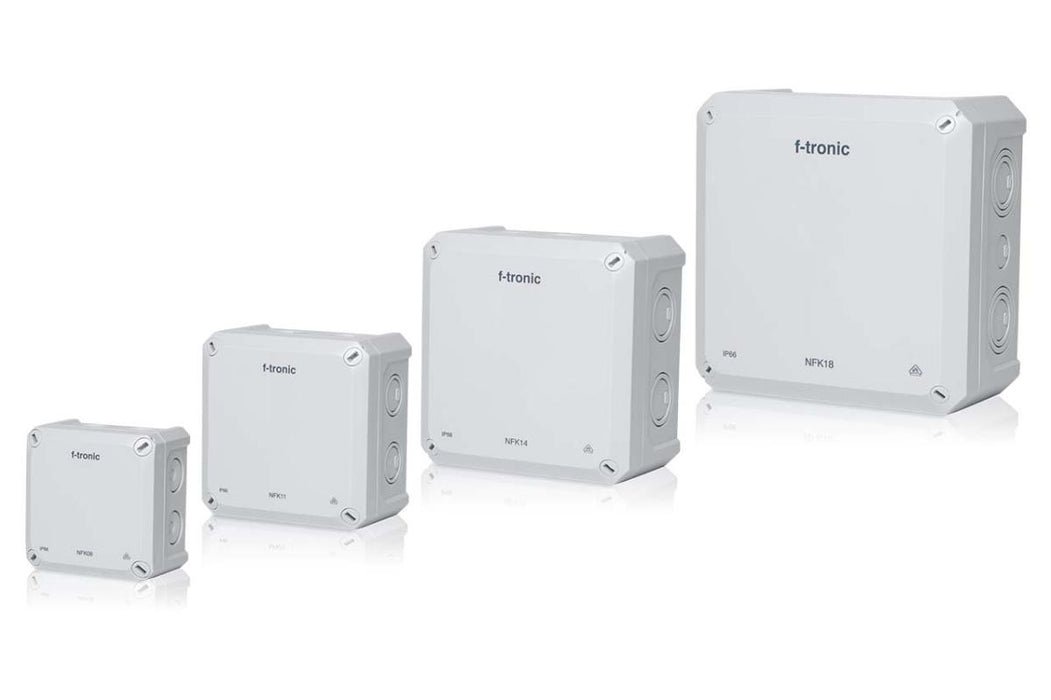

  • 4 different sizes.
  • Use in damp areas and in protected outdoor areas.

Features:

  • Length: 110 mm
  • Mounting type: SM
  • Height: 110 mm
  • Width: 110 mm
  • Depth: 67 mm
  • Color: gray
  • Protection level (IP): IP66
  • Max. cross-section: 6 mm²
  • M20 input: 2
  • M20/M25 input: 7
  • Case material: PS
  • Lid material: PS

Equipped with:

  • 3x double diaphragm seal M20 (DMS20)
  • 2x double diaphragm seal M25 (DMS25)
  • 2x screw cap
  • 2x external mounting plan
