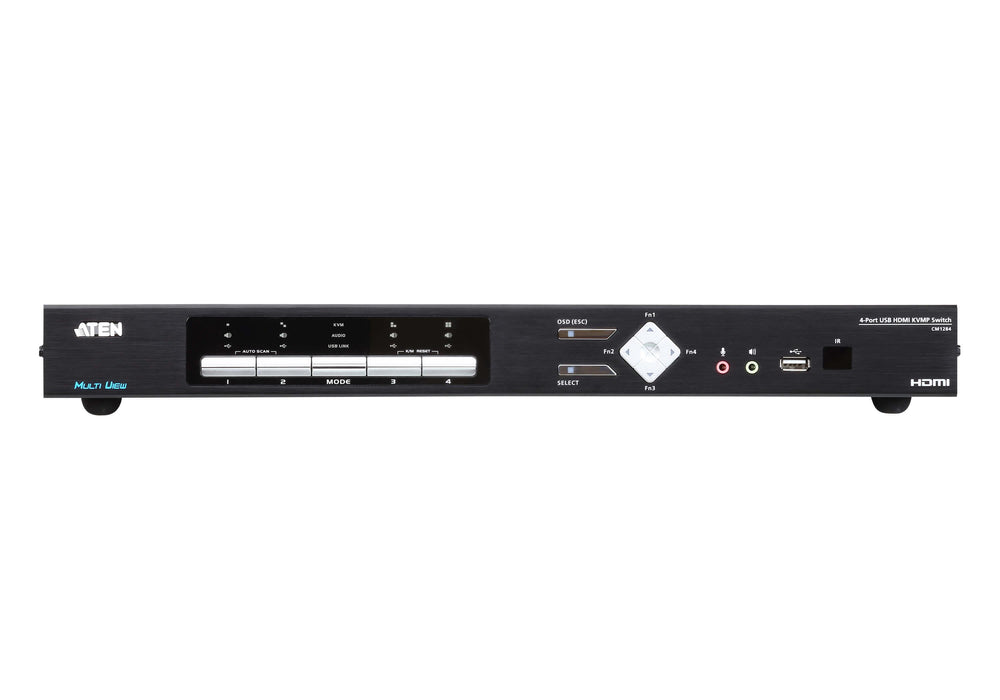

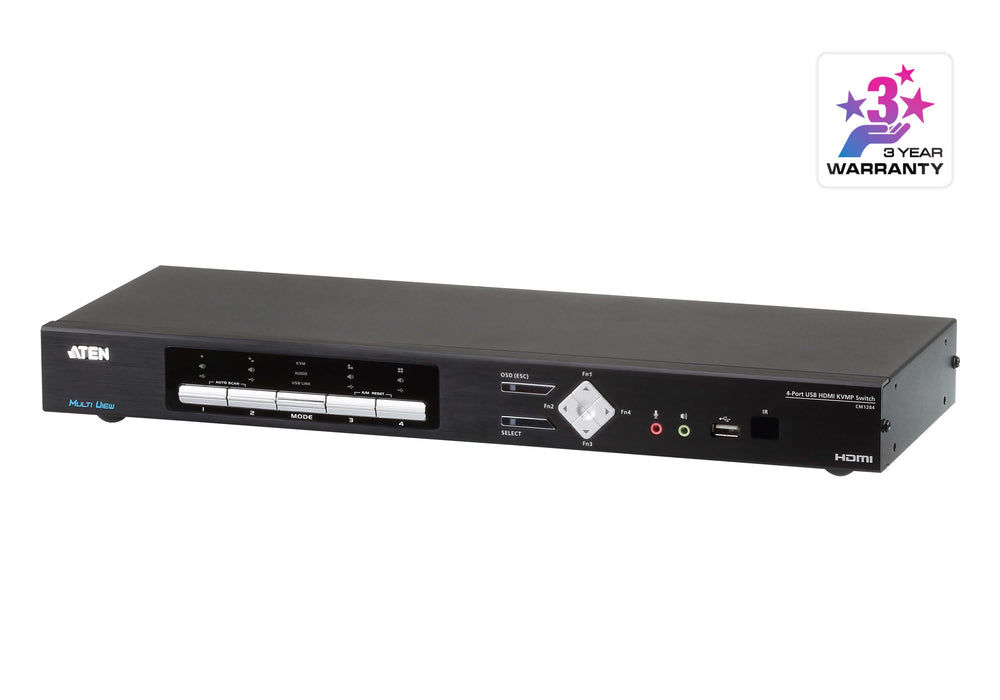

KVM switch ATEN CM1284-AT-G, 4 ports, USB, 4K, HDMI, Multi-View

- 4-port USB HDMI Multi-View KVMP switch with dual display. One display has Quad and PiP/PbP/PoP modes,
and the other is in full screen mode
- Easily resize and/or position any PiP or PbP to suit users' viewing needs;
Supports superior video quality – up to 4K DCI @ 30Hz (4096 x 2160 @ 30Hz); YCbCr 4:2:2
- DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 devices from one console; Cascade up to 2 levels – Controls
up to 16 computers (with up to 4 x 4 Multi-view mode)
- Switch between different video sources by moving the mouse cursor across the windows

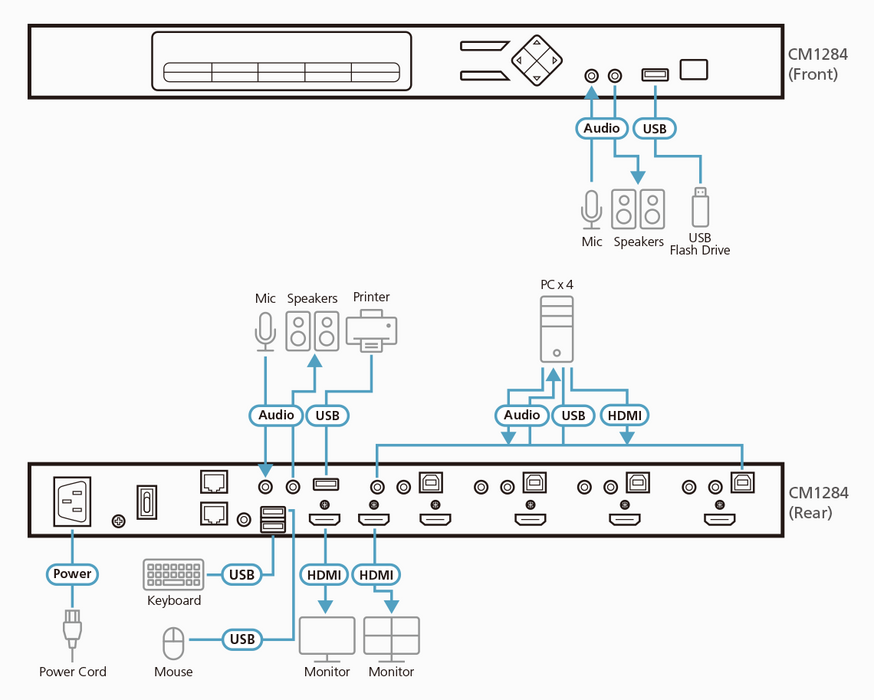

Connectors:
Console ports: 2 x USB Type A female
2 x HDMI female (black)
2 x 3.5mm Audio Jack female (green; 1 x front panel, 1 x rear panel)
2 x 3.5mm Audio Jack female (pink; 1 x front, 1 x rear)
2 x RJ-45

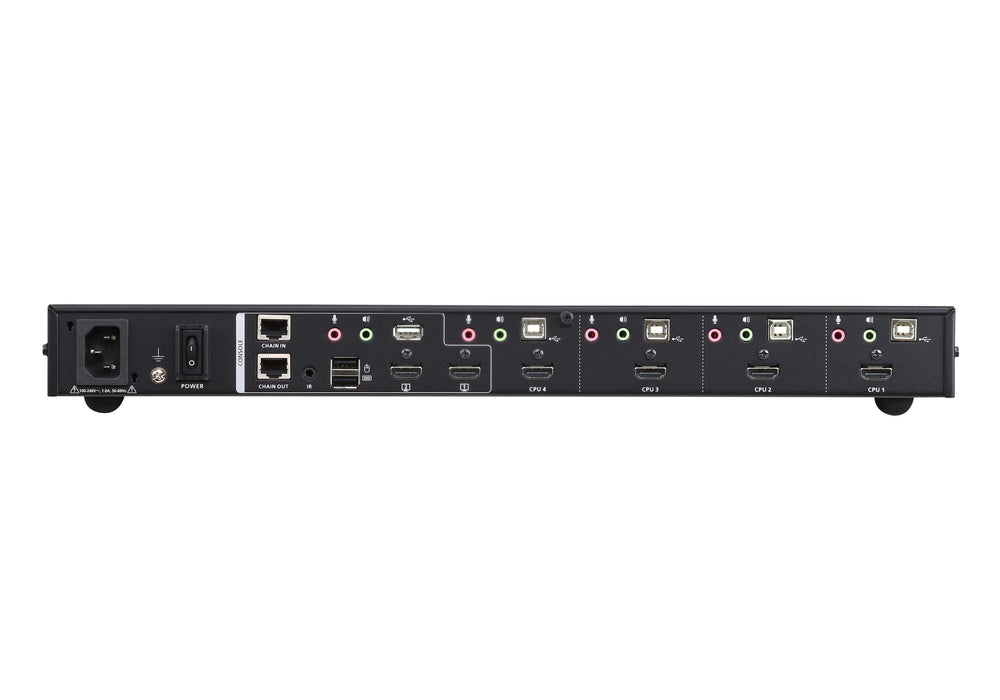

KVM (computer) ports: 4 x USB Type B female (white)
4 x HDMI female (black)
4 x 3.5mm Audio Jack female (green)
4 x 3.5mm Audio Jack female (pink)
Power: 1 x IEC320 Jack
USB Hub: 2 x USB 2.0 Type A female (1 x front panel; 1 x back panel)
Switches:
Selectable: 11 x Pushbuttons
Emulation:
keyboard / mouse: USB
Video: 4096 x 2160 @ 30 Hz
LEDs:
KVM: 4 (orange)
Audio: 4 (green)
USB: 4 (green)
