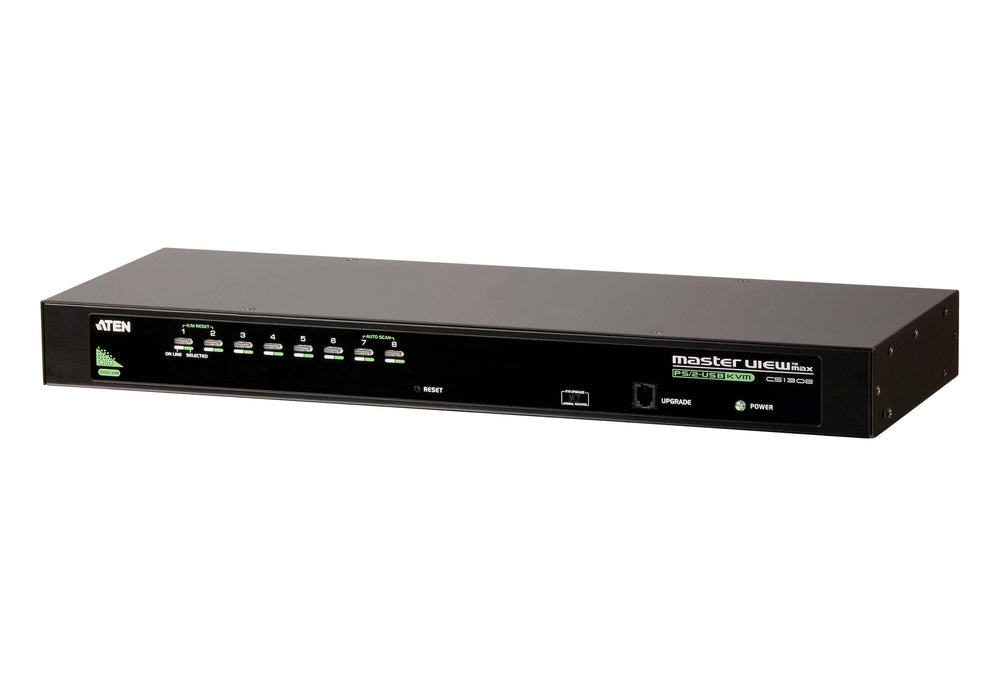

KVM Switch ATEN CS1308, 8-Port, PS/2-USB, VGA

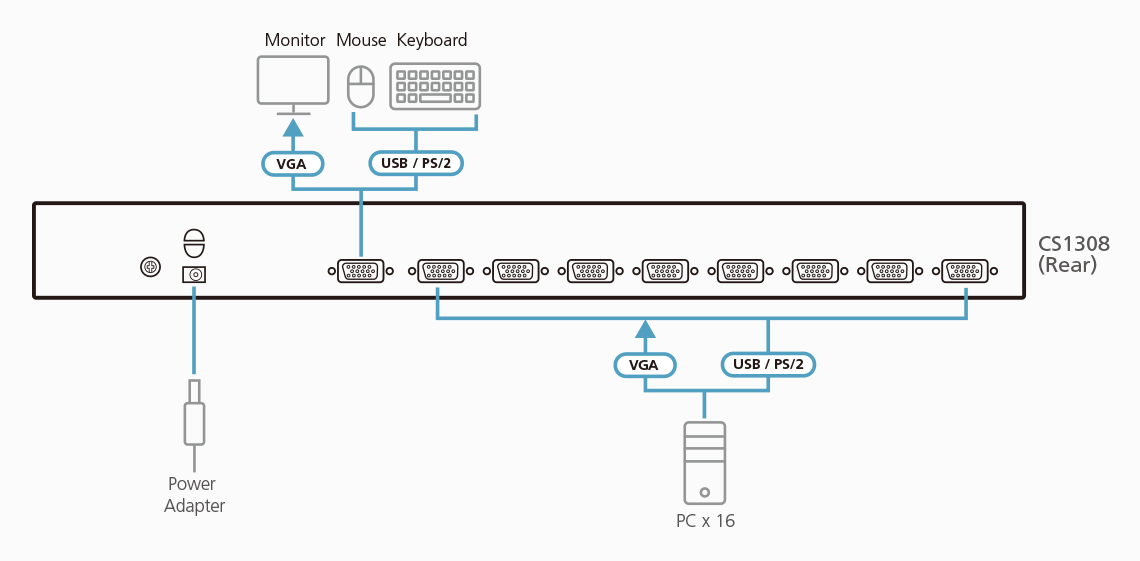

- One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers
- Broadcast mode - operations performed simultaneously on all selected computers, installing and upgrading software, shutting down the entire system, etc.
- Computer selection via front panel buttons, hotkeys and multilingual on-screen display (OSD) menu
- Video DynaSync - ATEN's exclusive technology eliminates display issues during loading and optimizes resolution when switching between ports

Computer connections:
Direct: 8
Maximum: 64 (via Cascade)
Port selection: OSD, Hotkey, Pushbutton

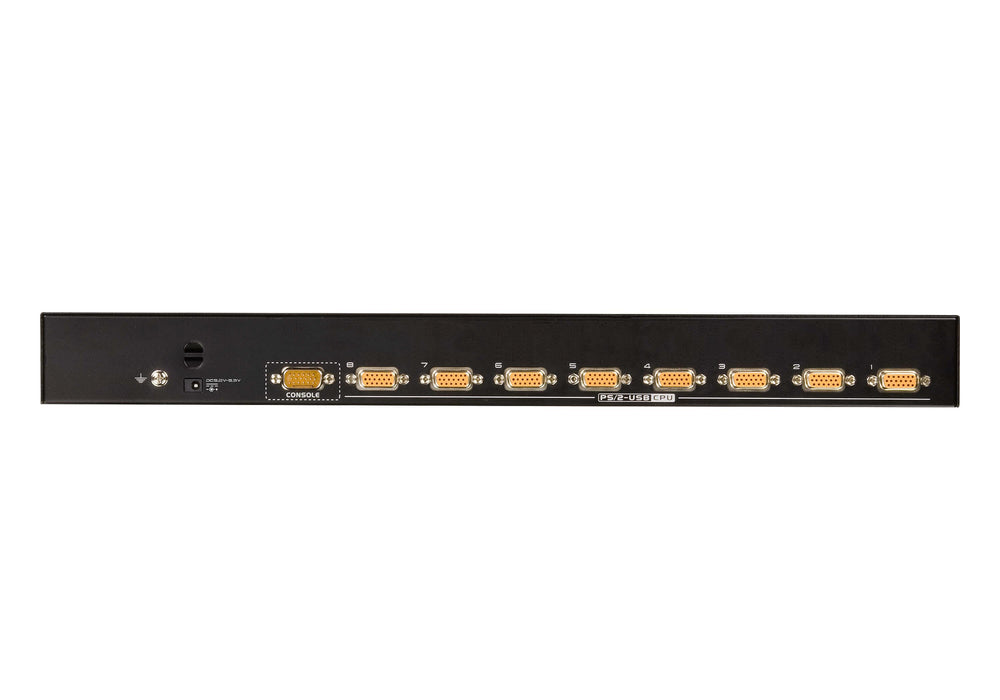

Connectors:
Console ports: 1 x SPHD-18 male (yellow)
KVM ports: 8 x SPHD-15 female (yellow)
Firmware Upgrade: 1 x RJ-11 Female (Black)
Power supply: 1 x DC Jack

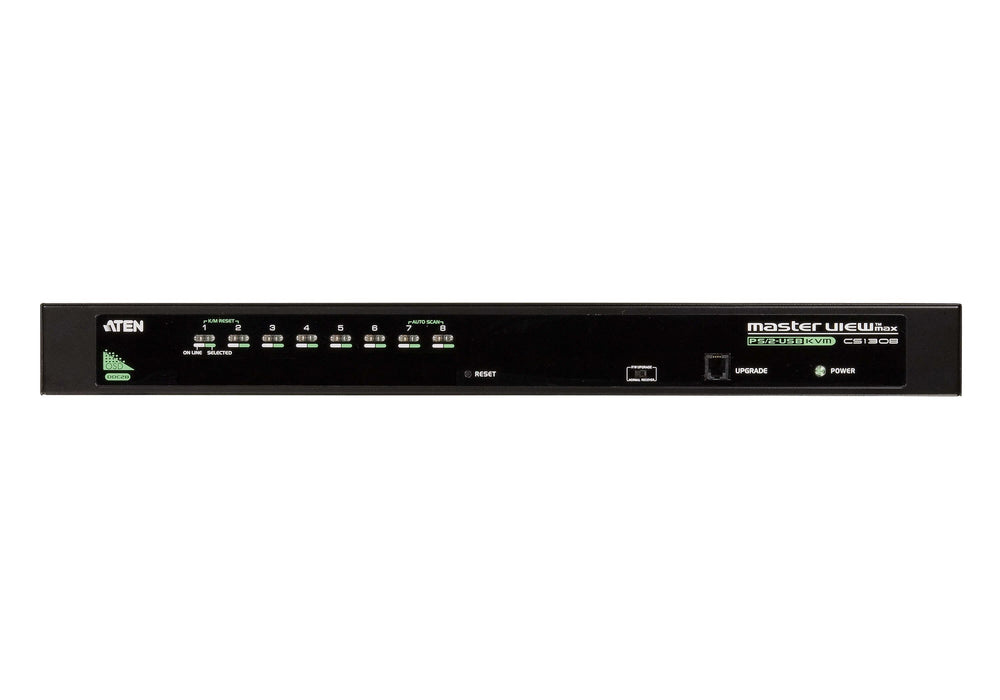

Switches:
Ports: 8 x Pushbutton
Firmware Upgrade: 1 x Slide
LEDs:
Online: 8 (orange)
Selected: 8 (green)
Power: 1 (dark green)
Emulation:
Keyboard / mouse: PS/2, USB
Video: 2048 x 1536; DDC2B
Dimensions: 43.72 x 16.13 x 4.40 cm
