LASER LEVEL BOSCH GCL 2-15

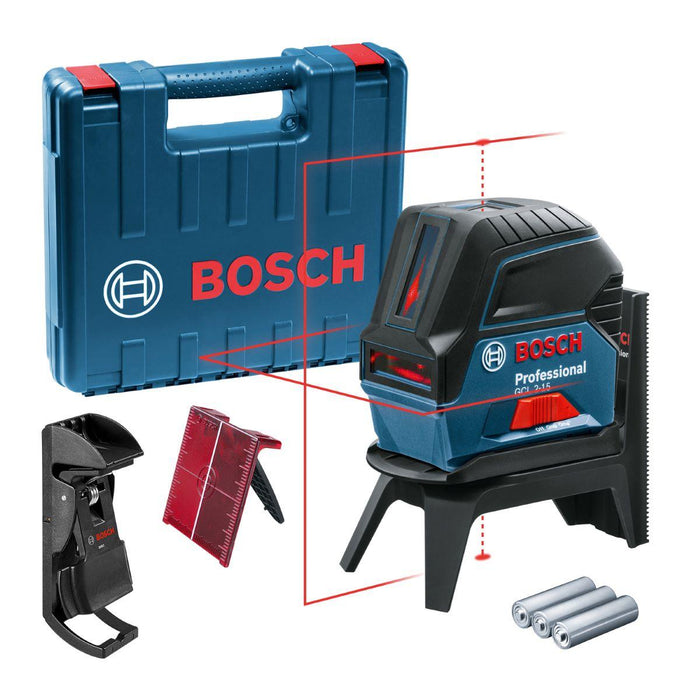

Cross-point laser GCL2-15 + base + case (0601066E02)

Description:
Lock pendulum mechanism ensures safety during transport
Easy to handle with one hand and intuitive service interface
Select linear or point mode
Automatic horizontal and vertical leveling within ±4°

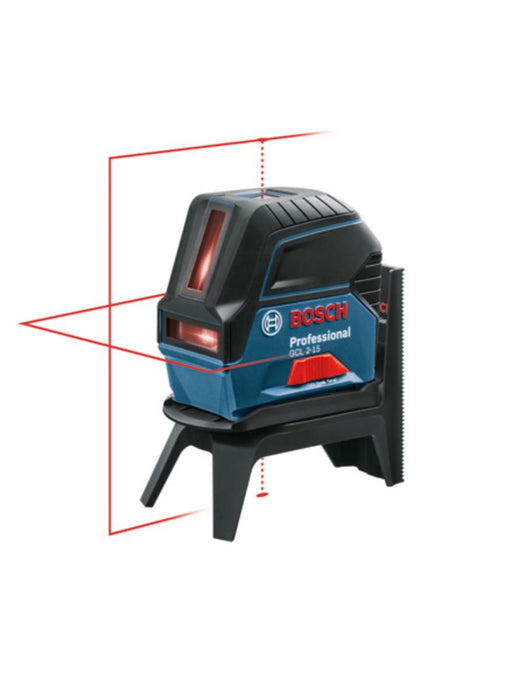

Horizontal and vertical laser lines and two centred vertical points with optimal visibility
Possibility to position laser lines around centered vertical points
Flexible use with rotating multi-function RM 1 handle Professional enabling positioning of laser lines and providing multiple mounting positions

Tissue data:
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser Class 2
Range of work 15 m
Accuracy ± 0,3 mm/m
Operating range, laser points, max. 10 m (up) , 10 m (down)
Automatic leveling range ± 4°
Leveling time 4 s
Protection against dust and moisture IP 54
Power supply 3 batteries LR6 (AA) 1,5 V
Max. 6 h in cross and point mode , 8 h in cross mode , 12 h in linear and point mode , 16 h in linear mode , 22 h in point mode
1/4", 5/8" tripod thread
Weight approx. 0.33 kg
Length 130 mm
Width 83 mm
Height 162 mm
Laser beam color red
Projection 2 lines / 2 points
Accuracy of perpendicular points ± 0,7 mm/m

Equipment:
Tool case 1 608 M00 C1R
Ceiling clamp
Fill to L-BOXX 1/2, tool 1 608 M00 C1S
Laser targeting board
RM 1 Professional 0 601 092 600
3 batteries 1.5 V LR6 AA
