Electrical data
Rated power: 3.5W
Construction capacity: 3.50W
Rated voltage: 220…240V
Operating mode: AC network
Claimed equivalent conventional lamp power: 28W
Rated current: 32 mA
Current type: AC
Starting current: 2.36 A
Operating frequency: 50/60Hz
Network frequency: 50/60Hz
Max. lamp number on MCB B10 A: 320
Max. lamp number on MCB B16 A: 514
Total harmonic distortion: 141.90%
Power factor λ: 0.46
Photometric data
Light intensity: It doesn't matter.
Luminous flux: 300 lumens
Luminous efficiency: 85 lm/W
Lumen basic fact at the end of nominal life: 0.96
Light color (designation): Warm white
Color temperature: 2700 K
Color rendering index Ra: 80
Light color: 827
Standard deviation of color matching: ≤6 sdcm
Flashing metric (Pst LM): 1
Stroboscopic effect metric (SVM): 0.4
Light technical data
Beam angle: 100 °
Warm-up time (60%): ‹ 0.50 sec
Start time < 0.5s
Dimensions and weight
Total length: 45.00 mm
Diameter: 35.00 mm
Maximum diameter: 35 mm
Product weight: 25.00 g
Temperatures and operating conditions
Ambient temperature range: -25…+40 °C
Maximum temperature at tc test point: 90 °C
Life expectancy
Lifespan L70/B50 at 25 °C: 25000 hrs
Number of switching cycles: 100,000
End-of-life lumen maintenance: 0.96
Additional product data
Base (standard designation): E27
Mercury content: 0.0 mg
Mercury-free: yes
Design / version: Frosted
Product note: All technical parameters refer to the entire lamp. Due to the complex manufacturing process for LEDs, the typical values shown for the technical parameters of LEDs are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which may vary from the typical value.
Opportunities
Dimmable: No
Certificates and standards
Energy efficiency class F1)
Energy consumption: 4.00 kWh/1000h
Protection type: IP20
Standards: CE, UKCA, EAC
Photobiological safety group according to EN62778: RG1
1) Energy efficiency class (EEC) on a scale from A (most efficient) to G (least efficient)
Country categorizations
Order reference LEDCLFLAT28 3.5
LOGISTICS DATA
Storage temperature range -20…+80 °C
Data on energy labelling regulation according to EU 2019/2015
Lighting technology used: LED
Undirected or directed: NDLS
Networked or non-networked: MLS
Cap-type light source (or other electrical interface): E27
Connected Light Source (CLS): No
Color-adjustable light source: No
Envelope: No
High brightness light source: No
Anti-glare shield: No
Correlated color temperature type: SINGLE_VALUE
Standby power: 0W
Equivalent power claim: yes
Length: 45.00 mm
Height: 35.00 mm
Width: 35.00 mm
The chromaticity coordinate x: 0.458
The chromaticity coordinate y: 0.410
R9 Color Rendering Index: 10
Beam angle correspondence: SPHERE_360
Survival factor: 0.9
Displacement factor: 0.787
LED light source replaces fluorescent light source: No
EPREL ID: 1891351
Model number: AC59898
Product advantages
Ultra-compact designer lamp without diffuser in the shape of a bulb
The shape of the lamp emphasizes the beauty of the lighting fixture used
The special design offers comfortable light distribution
Lower energy consumption than incandescent or halogen lamps
Areas of application
Perfect for decorative installations
General lighting
Outdoor use only in outdoor lighting fixtures (minimum IP65)
Product features
Two versions are available: Non-Dim and 3 Step-Dim
Flat diffuser with E27 base

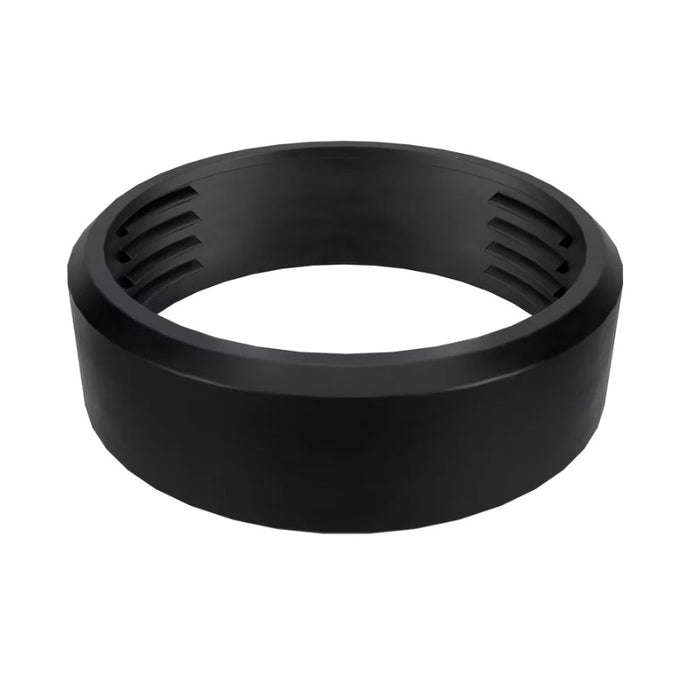

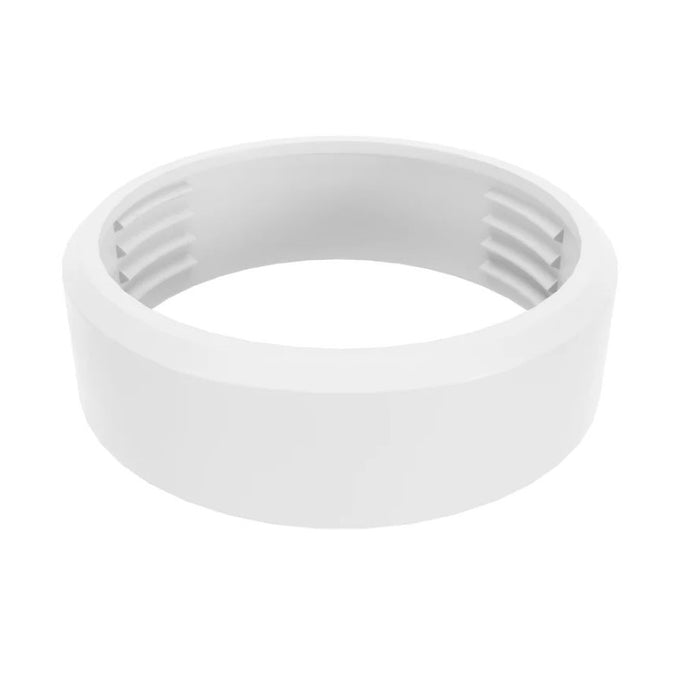

Two rings (black and white) are included for customization, allowing for different colors of the light fixture
Life: up to 25,000 hours
The 3-step dimming version offers easy dimming via a wall switch
