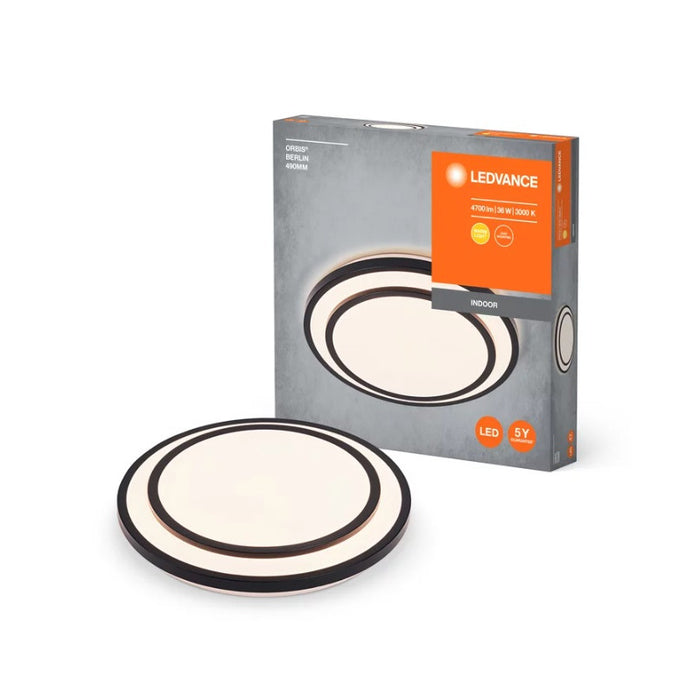

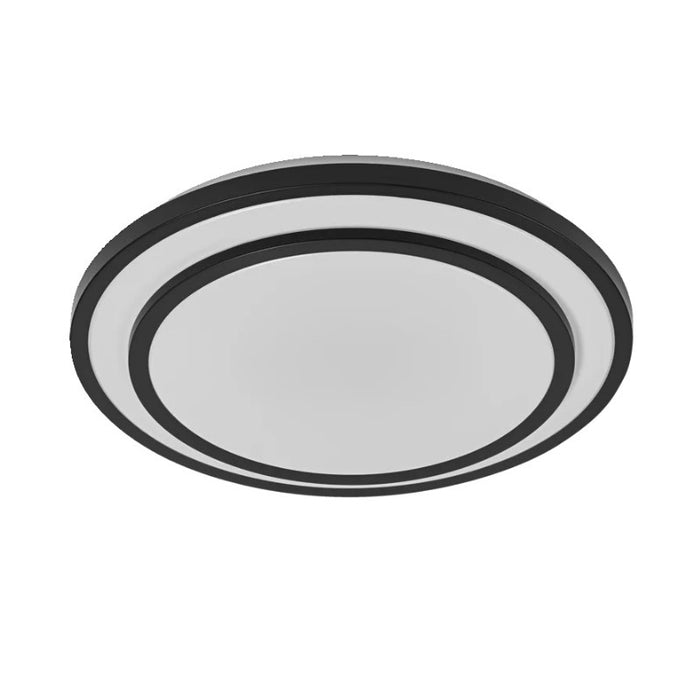

LED LAMP ORBIS BERLIN 490 mm 36W 830 BK LEDVANCE

Electrical data

Rated power:   36.00W

Rated voltage:          220…240V

Operating mode:           Electronic monitoring equipment (ECG)

Rated current:               160,000mA

Current type :    AC

Network frequency:     50…60 Hz

Total Harmonic Distortion:          < 13%

Power factor: λ> 0.90

Photometric data

Luminous flux:           2400 lumens

Luminous efficiency:            66 lm/W

Light color (designation):      Warm white

Color temperature:    3000 K

Color rendering index:   Ra≥80

Light color:      830

Standard deviation of color matching:        ≤6 sdcm

Flashing metric (Pst LM):         < 1

Stroboscopic effect metric (SVM):        < 0.4

Light technical data

Beam angle:    120°

Start time:      < 0.5s

Dimensions and weight

Diameter:         492.00 mm

Product weight:         1350.00 g

Temperatures and operating conditions

Ambient temperature range:   -20…+40 °C

Life expectancy

Lifespan:   L70/B50 at 25 °C            50000 h 1)

Number of switching cycles:               25,000

1) t[h]: L70 / B50 at 25 °C (Ta), t[h]: L80 / B10 at 25 °C (Ta), t[h]: L90 / B10 at 25 °C (Ta)

Opportunities

Dimmable:        No

Certificates and standards

Protection type:       IP20

Standards:         CE, UKCA

Photobiological safety group according to EN62778:       RG0

Country categorizations

Order reference       ORBIS BERLIN 49

LOGISTICS DATA

Storage temperature range:        -20…+80 °C

Data on energy labelling regulation according to EU 2019/2015

Height:           80.00 mm
