LINEAR SIPHON FOR TILE 480MM INOX

Linear siphon - Tile Design 480 mm

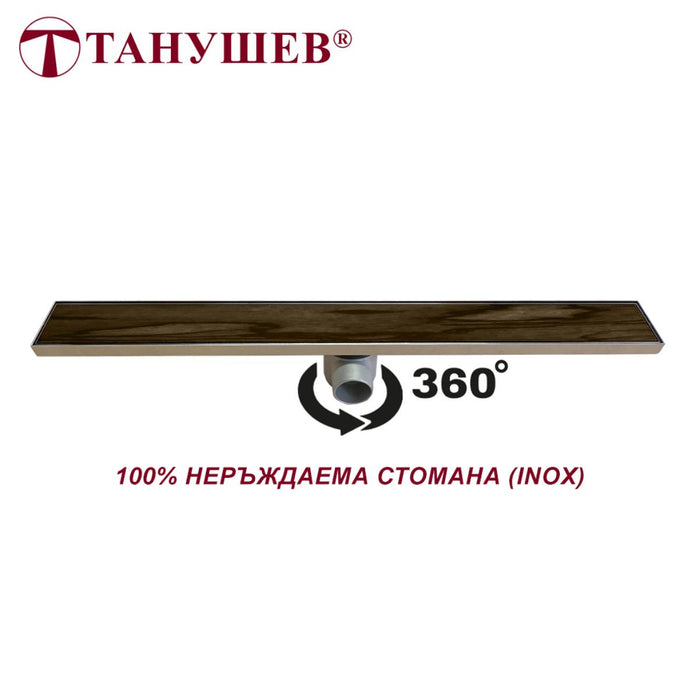

Linear siphon from the Tile Design series by the Bulgarian manufacturer "TANUSHEV" Ltd. is a model for embedding in tiles.

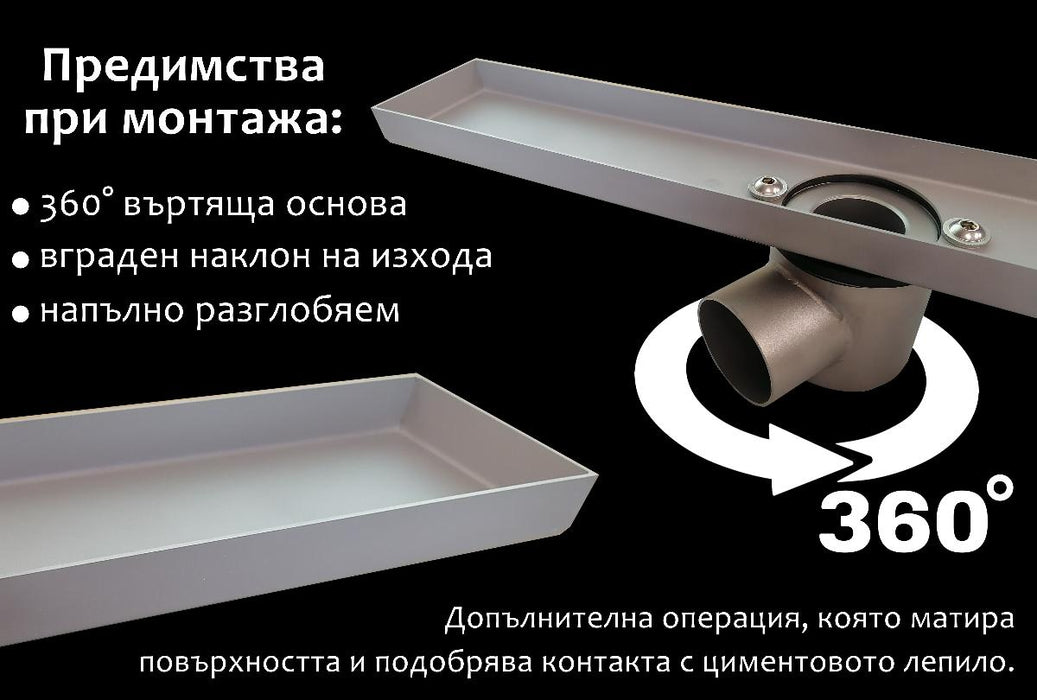

The siphon is made entirely of stainless steel (100% INOX). The main elements are a grid for embedding a tile, a body with a fine matte surface that helps bond with the cement adhesive, a base with a 360° rotation option and a built-in 1° outlet pipe inclination. With the proven flow rate of 30 l/min, 600 hours (25 days) of water seal operation time and a 10-year warranty on all components, this product guarantees you many years of trouble-free operation.

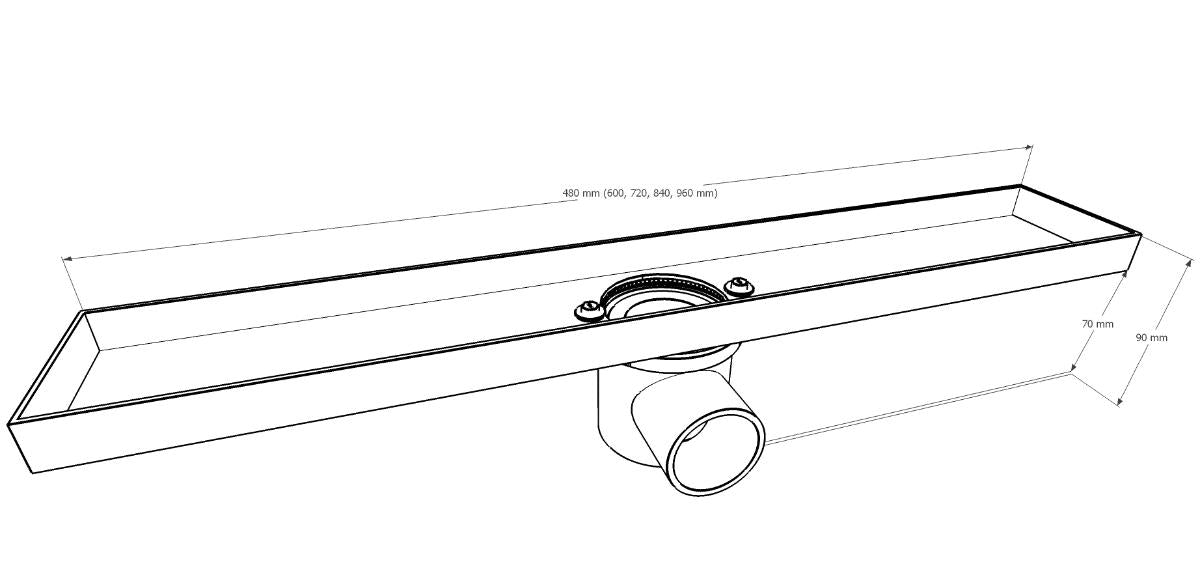

Dimensions: 480x75x90 mm
Material: 100% stainless steel (INOX)
Output diameter: Ø50 mm
Rotating base: 360°
Built-in pipe inclination: 1°
Mounting height: 90 mm
Flow rate: 30 l/min
Water seal operating time: 600 hours (25 days)

The specified flow rate and water seal parameters have been confirmed with official protocols from the independent certification organization "NISI" - Sofia based on tests conducted at constant pressure, air temperature of 25° and a water column of 20 mm.

10 YEARS WARRANTY

The kit includes a warranty card, installation instructions, a wrench for tightening the tray, and a hook for lifting the lid for cleaning.
