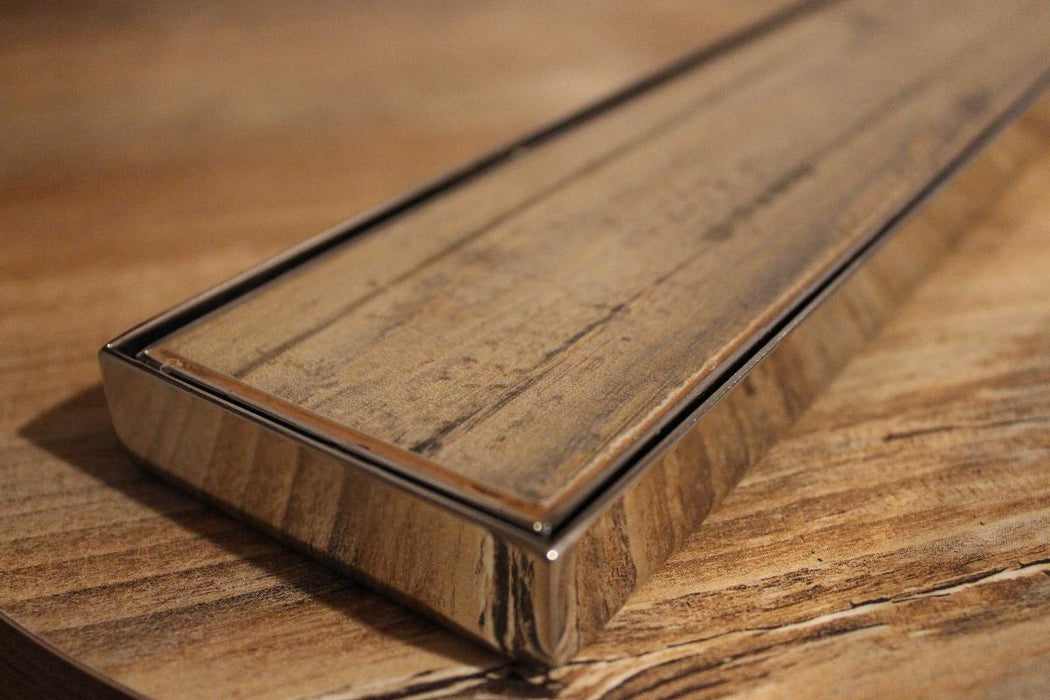

LINEAR SIPHON FOR TILE 960MM INOX

Linear shower drain - Tile Design 960 mm

Linear shower drain from the Tile Design series by the Bulgarian manufacturer "TANUSHEV" OOD, a model for tile installation.

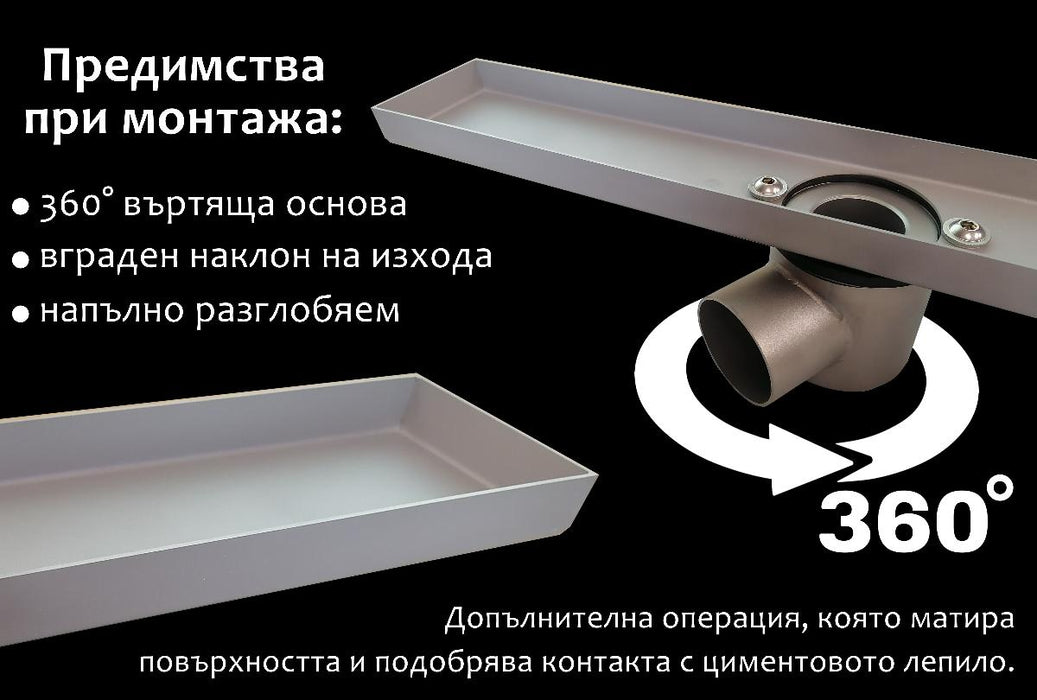

The drain is made entirely of stainless steel (100% INOX). The main elements are a grate for tile installation, a body with a fine matte surface that supports bonding with cement adhesive, a base with a 360° rotation option and a built-in 1° slope of the outlet pipe. With a flow rate of 30 l/min proven by tests, a water seal operating time of 600 hours (25 days), and a 10-year warranty on all elements, this product guarantees you long-lasting and trouble-free operation.

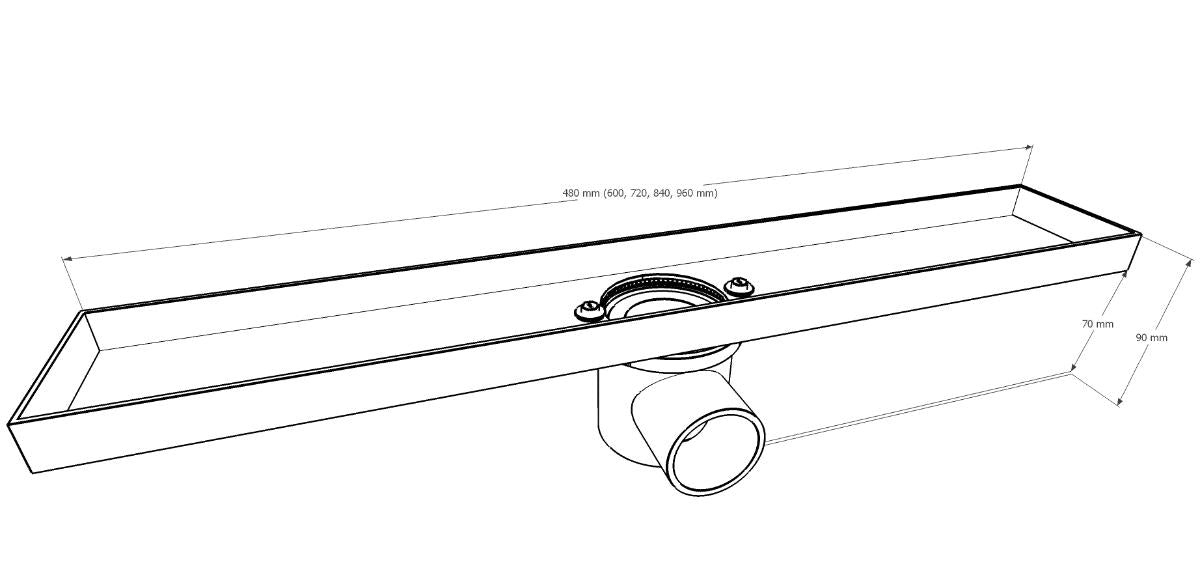

Dimensions: 960x75x90 mm
Material: 100% stainless steel (INOX)
Outlet diameter: Ø50 mm

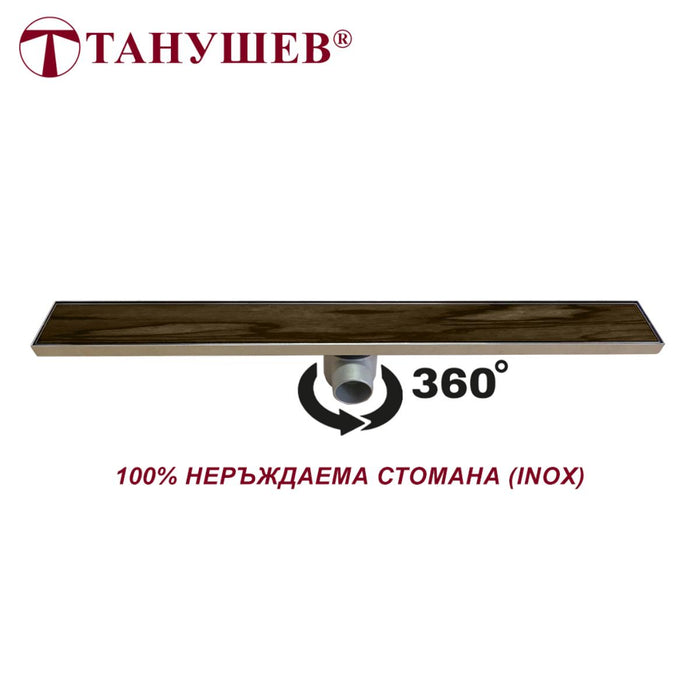

Rotating base: 360°
Built-in pipe slope: 1°
Installation height: 90 mm
Flow rate: 30 l/min
Water seal operating time: 600 hours (25 days)

The specified flow rate and water seal parameters have been confirmed by official protocols from the independent certification organisation "NISI" – Sofia, based on tests conducted at constant pressure, air temperature 25° and a water column of 20 mm.

10 YEARS WARRANTY

The kit includes a warranty card, installation instructions, a key for tightening the trough and a hook for lifting the cover during cleaning.
