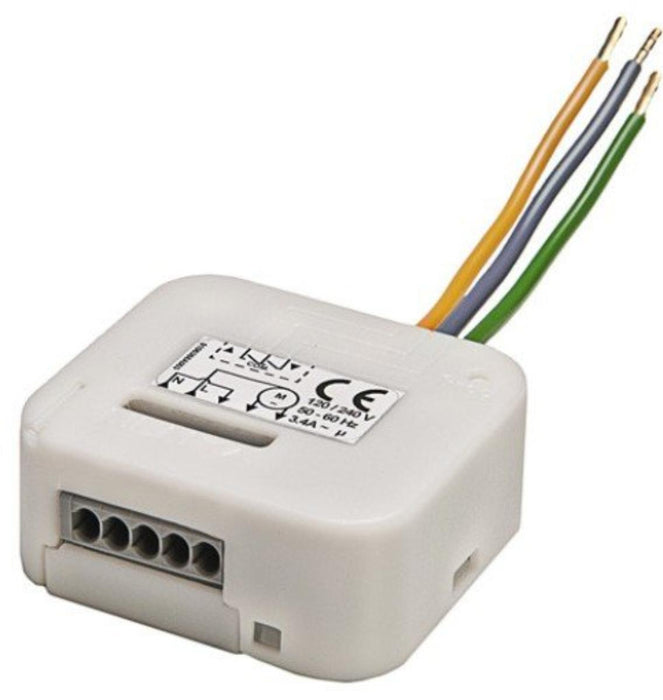

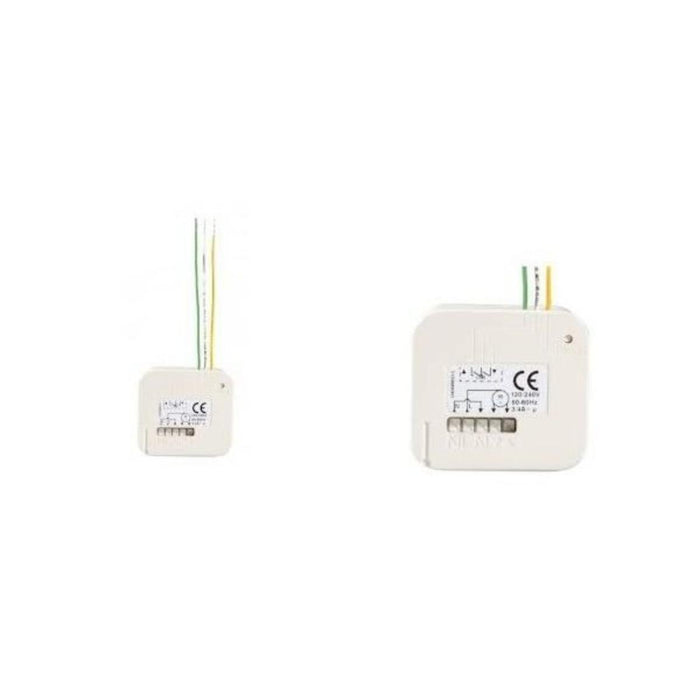

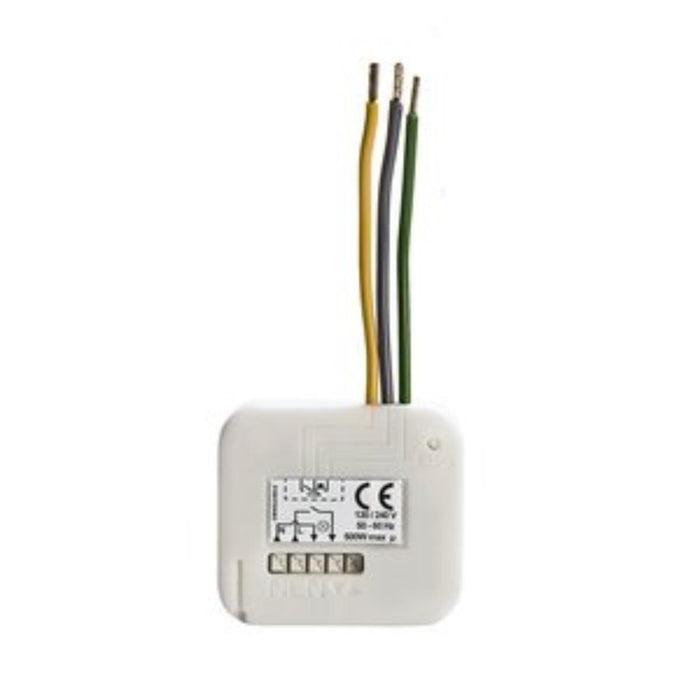

MICRO RECEIVER FOR WIRE MOTORS

MICRO RTS RADIO RECEIVER FOR ELECTRIC SHUTTERS

Receiver for controlling roller shutters via remote control or button

The Somfy radio micro-receiver makes a wired motor roller shutter compatible with the entire Somfy RTS radio technology system, for controlling roller shutters with a button or remote control.

The radio micro-receiver can store up to 12 wireless remote controls or wall controls and multiple channels on each remote control, and is compatible with Somfy Box Tahoma.

EASY TO INSTALL thanks to quick-connect terminal
SMALL SIZE: compatible with all 50 mm boxes (503 box)
COMPATIBLE WITH TAHOMA BOX: for a home that is always connected
Easy to use: CAN STORE UP TO 12 REMOTE CONTROLS OR WIRELESS WALL CONTROLS and multiple channels on each remote control

Compatible with:
All motorised blinds/curtains controlled by a switch
TaHoma
RTS remote control

Features:

Motor power: 3 A maximum at 240 V or 3.4 A max. at 120 V
Operation limited to one motor only
Radio: 433.42 MHz
Dimensions (mm): 19 x 41 x 45
Operating temperature: from -20 °C to +55 °C
Protection rating: IP20 when installation instructions are followed. For indoor use only (protection against solid objects with diameter > 12 mm, no protection against liquids)
Maximum altitude of use: 2000 metres
Product sensitive to shocks and falls
